Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

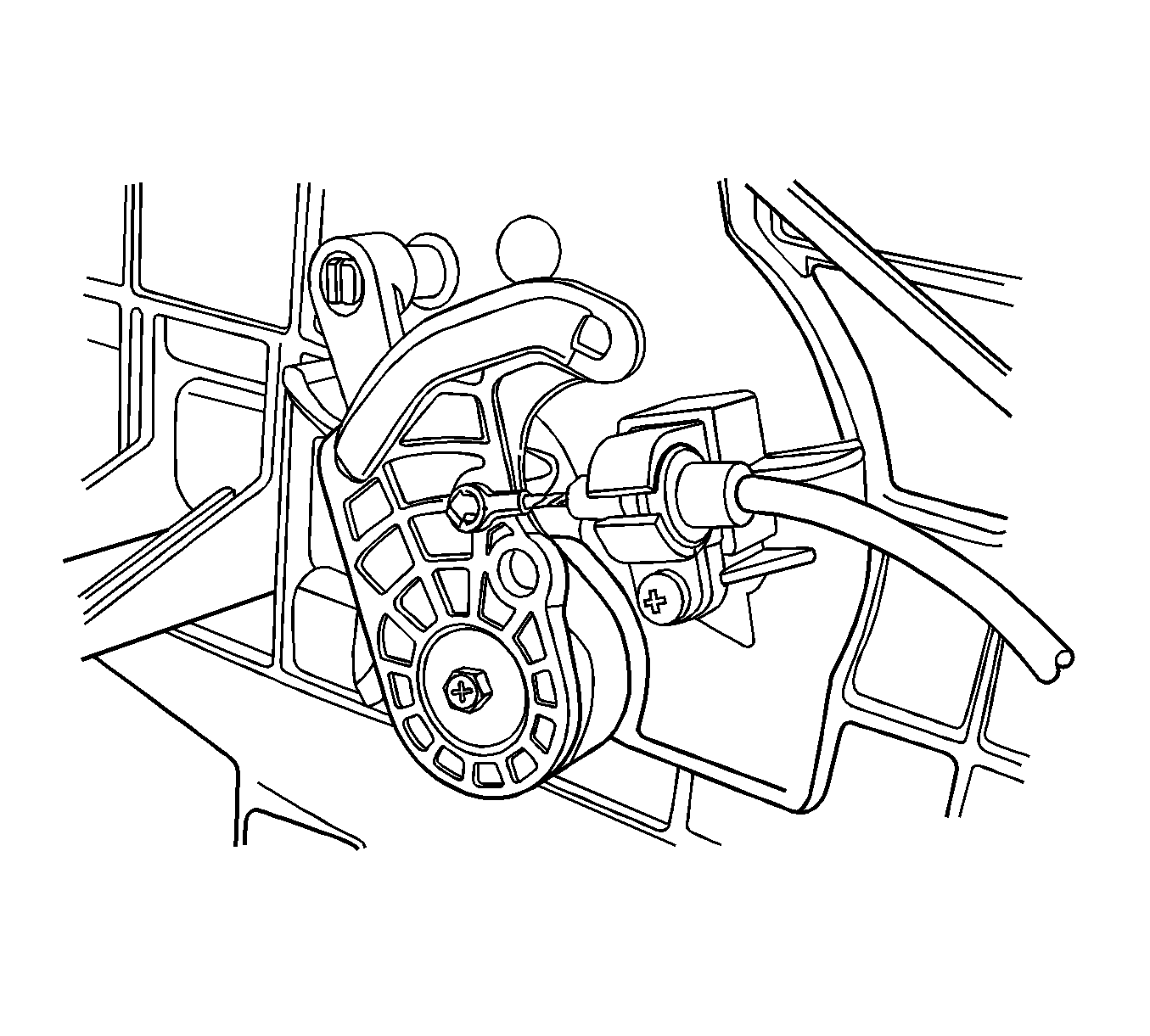

    Fig 1: View Of Heater/Defrost Cable Eyelet
    GM1894868Courtesy of GENERAL MOTORS CORP.
  1. Connect the vehicle heater/defrost cable eyelet to the post and the cable housing to the slide.

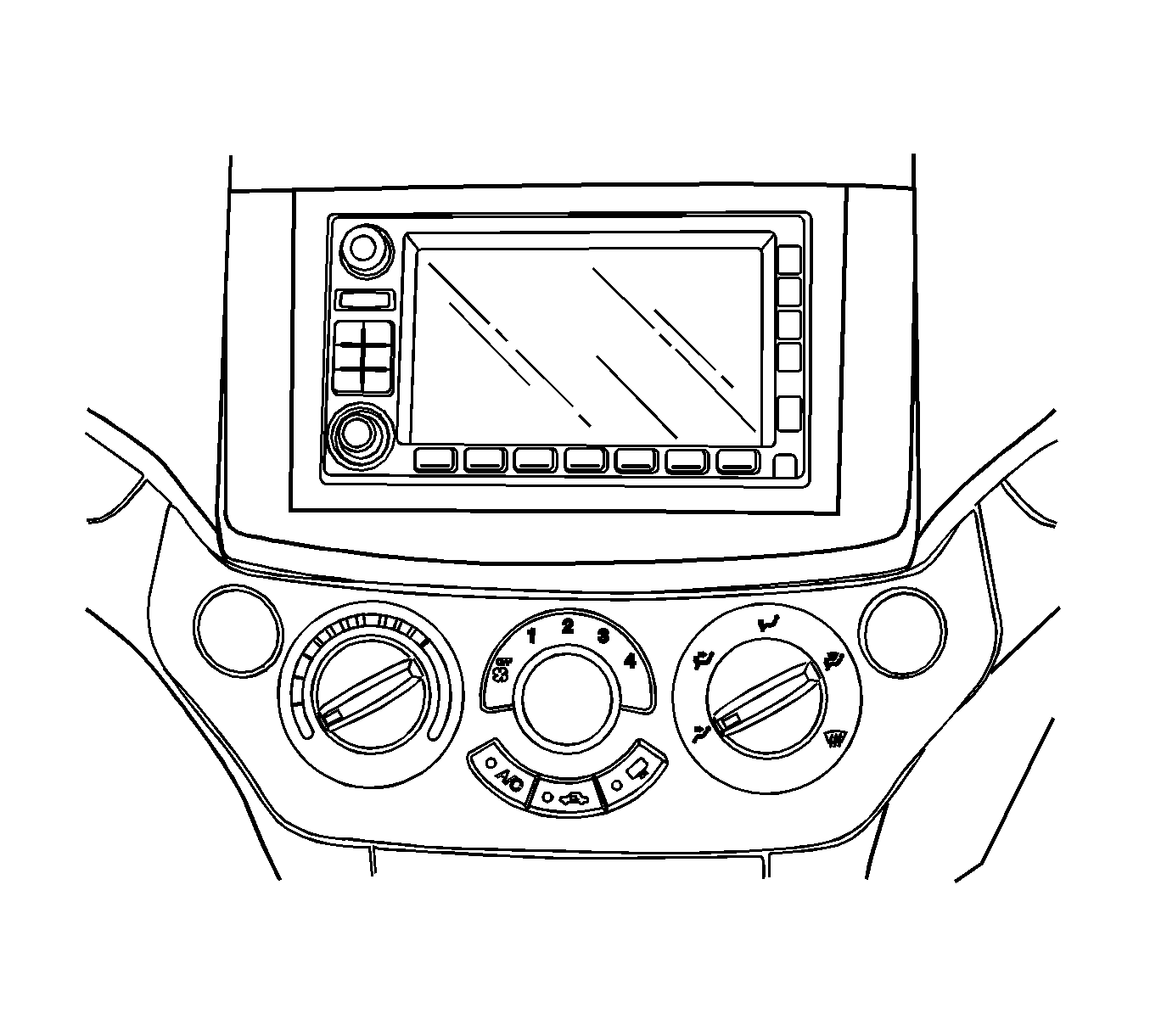

    2. Fig 2: View Of Controller
    GM1877506Courtesy of GENERAL MOTORS CORP.
  2. Install the HVAC controller. Refer to Heater and Air Conditioning Control Replacement (Hatchback)  or Heater and Air Conditioning Control Replacement (Notchback) .
  3. Install the audio system. Refer to Radio Replacement (Notchback) or Radio Replacement (Hatchback) .
  4. Install the dash end panel.
  5. Connect the negative battery cable.
  6. Operate the heating/cooling systems to verify proper function.
