Blower Motor Switch Replacement: Notes
WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the HVAC control assembly. Refer to Heater and Air Conditioning Control Replacement (Hatchback) or Heater and Air Conditioning Control Replacement (Notchback) .

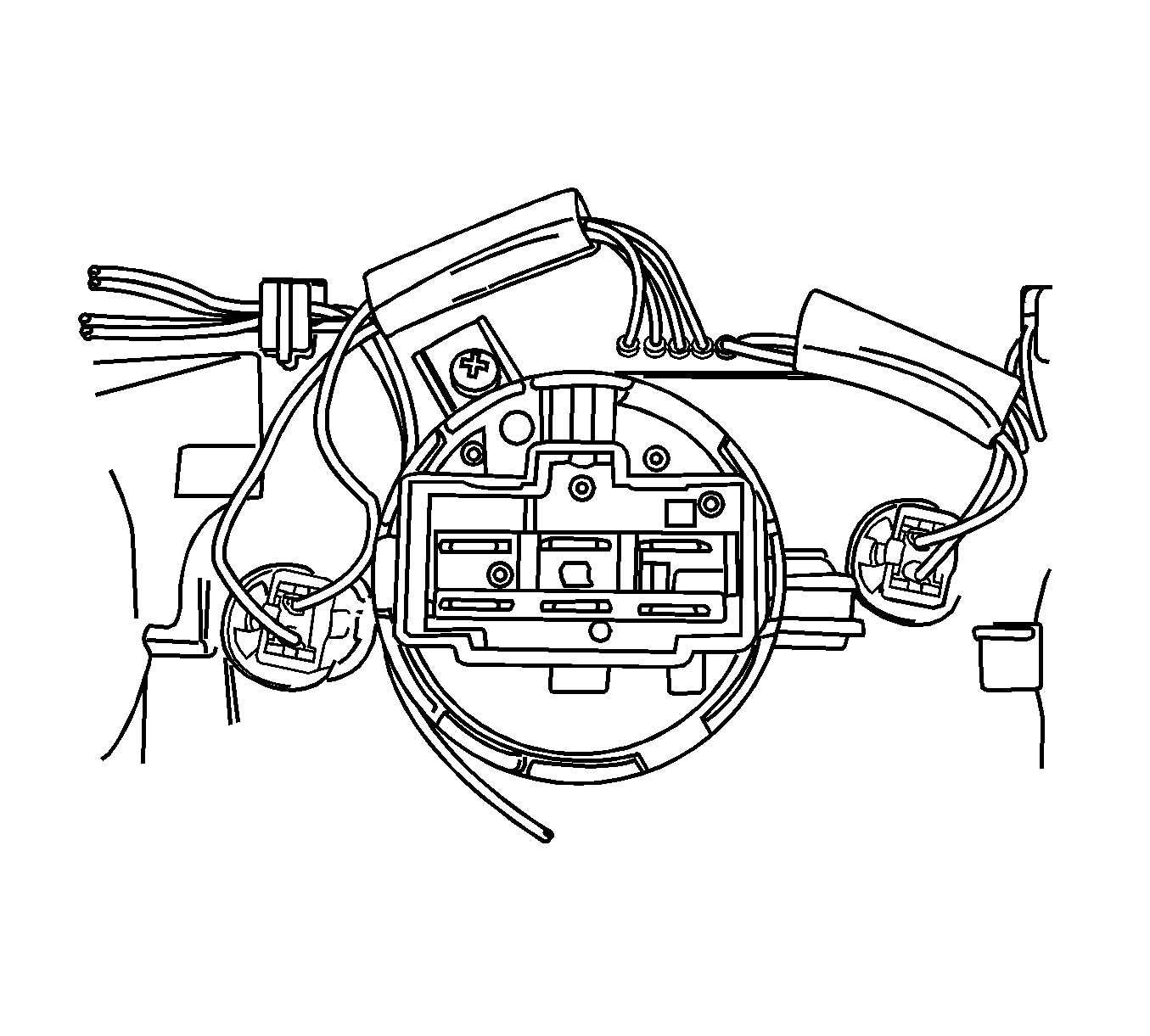

- Remove the screws that secure the switch assembly to the knob mount support.
- Remove the switch assembly. Note the position of the spring, the electrical contact washer, and the contact key/keyway on the knob post.
CAUTION:
Refer to Battery Disconnect Caution
.
