Displays and Gages Connector End Views (Notchback)

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

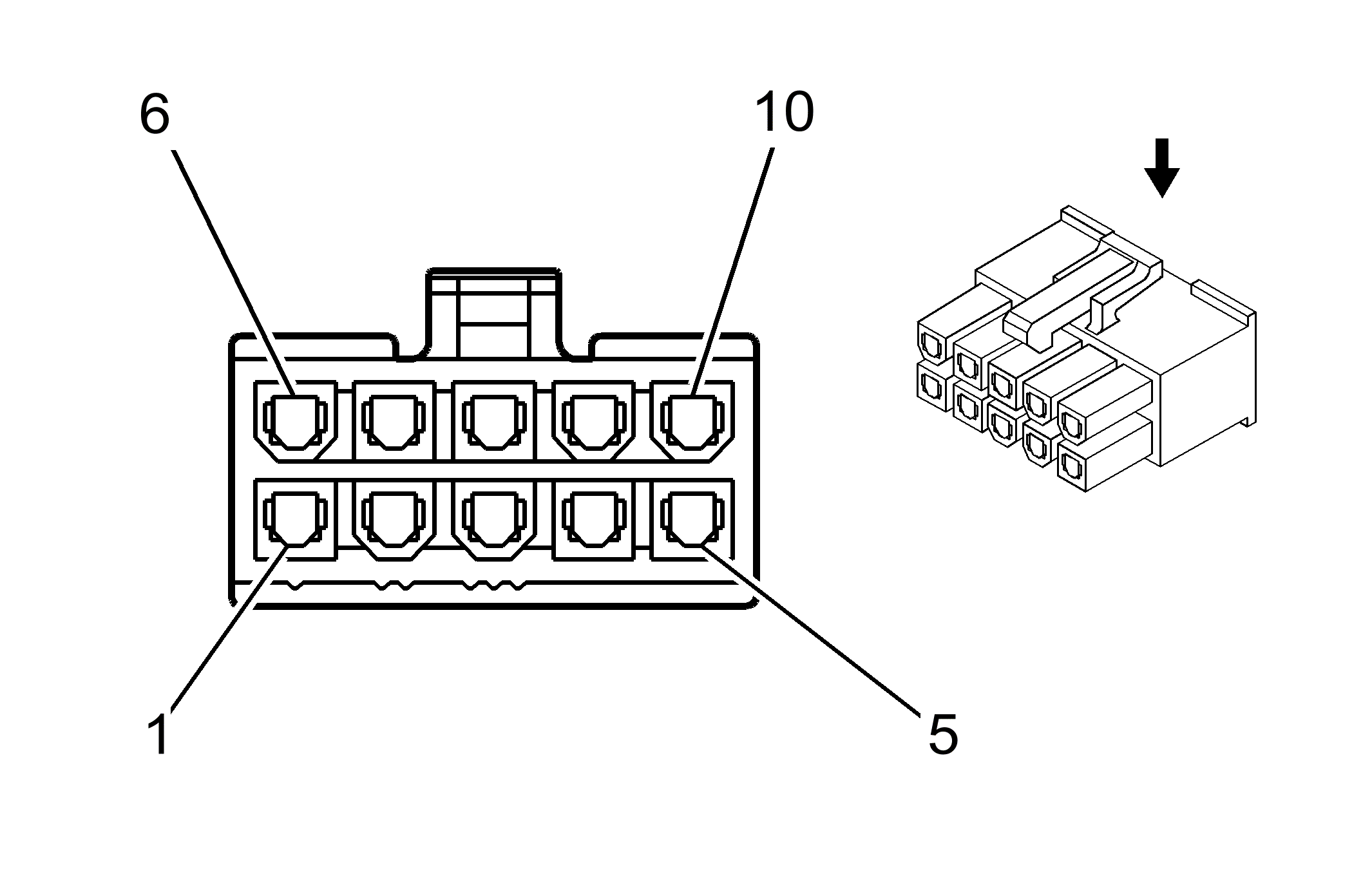

Clock

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		MLX 5557-10R 10-Way M Mini Fit Series (BK)
Pin	Wire Color	Circuit No.	Function
1	PK	-	Ignition 1 Voltage
2	BN/WH	-	Instrument Illumination Supply Voltage
3	YE	-	Ignition Voltage
4	BK	-	Ground
5	RD/WH	-	Battery Voltage
6-7	-	-	Not Used
8	YE	-	Security Indicator Control
8	YE	-	Security Indicator Control
9	GY/BK	-	Passenger Air Bag ON Indicator Control (AJ3)
10	D-GN/WH	-	Passenger Air Bag OFF Indicator Control (AJ3)

Ignition Key Alarm Switch

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		MG 610070 2-Way F 090 (2.3 mm) Series (WH)
Pin	Wire Color	Circuit No.	Function
1	RD/WH	-	Battery Positive Voltage
2	L-GN	-	Key In Ignition Switch Signal

Instrument Cluster C1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		1565380-1 28-Way F 025 Series (NA)
Pin	Wire Color	Circuit No.	Function
1	YE	-	Front Fog Lamp Indicator Supply Voltage (T96)
2	L-GN	-	ABS Indicator Control
3	YE	-	Cruise Indicator Control (K30)
4	YE	-	Transmission Hold Mode Indicator Control (MLQ)
5	PK	-	Ignition 1 Voltage
6	BK	-	Ground
7-9	-	-	Not Used
10	YE	-	Ambient Temperature Sensor Signal (Auto HVAC)
11	BN/WH	-	Instrument Illumination Supply Voltage
12	BN/WH	-	Instrument Illumination Control/Ground
13	BN	-	Oil Pressure Indicator Control
14	BN/WH	-	Malfunction Indicator Control
15-18	-	-	Not Used
19	L-BU	-	Left Turn Signal Indicator Signal
20	D-GN	-	Engine Coolant Temperature Gage Signal
21	WH	-	Door Open Indicator Control
22	YE	-	Low Fuel Indicator Control
23	YE	-	High Beam Indicator Supply Voltage
24	RD/WH	-	Battery Positive Voltage
25	-	-	Not Used
26	BN	-	Charge Indicator Control
27	WH	-	Engine Speed Signal
28	-	-	Not Used

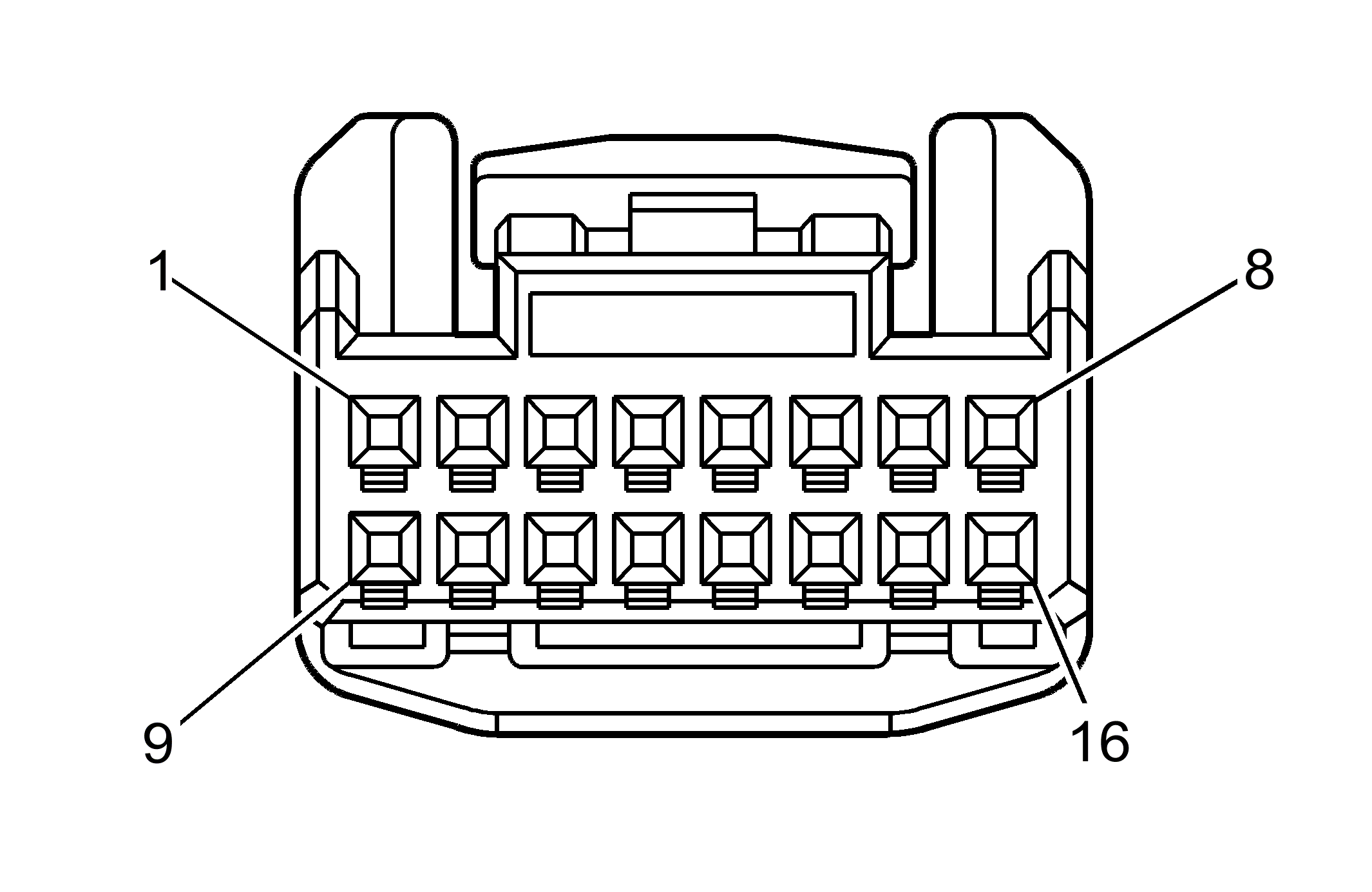

Instrument Cluster C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		1318386-1 16-Way F 025 Series (NA)
Pin	Wire Color	Circuit No.	Function
1	BN/WH	-	Brake Warning Indicator Control
2	-	-	Not Used
3	WH	-	DRL Indicator Control
4	-	-	Not Used
5	BN	-	SIR Indicator Control
6	OG	-	Rear Fog Lamp Indicator Supply Voltage
7	PK	-	Ignition 1 Voltage
8	BK	-	Ground
9	-	-	Not Used
10	YE	-	Seat Belt Indicator Control (w/o AJ3)
10	BN/WH	-	Seat Belt Indicator Control (AJ3)
11	PU/WH	-	Engine Overspeed Indicator Control (U44)
12	D-GN/WH	-	Vehicle Speed Signal
13	BN	-	-
14	L-BU	-	RPM Signal Output
15	PU	-	Fuel Level Sensor Signal
16	D-BU	-	Left Turn Signal Indicator Signal

Oil Pressure Switch

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		AK 32104 1-Way F Metri-Pack 150 Series Sealed (BK)
Pin	Wire Color	Circuit No.	Function
1	BN	-	Oil Pressure Indicator Control
