Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

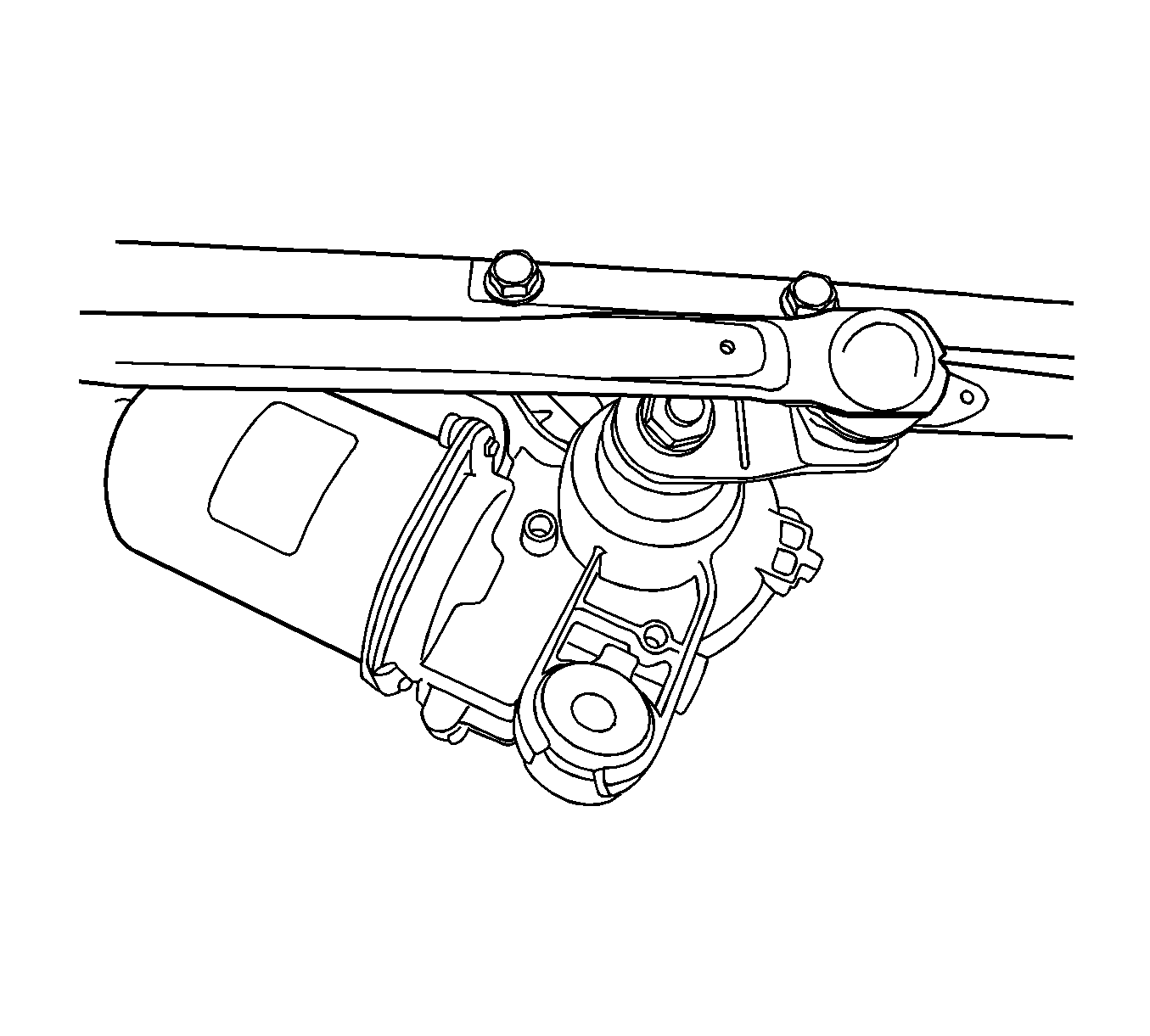

    Fig 1: Wiper Arm Linkage At Motor
    GM1871150Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the wiper motor with the bolts.

    Tighten:  Tighten the wiper motor bolts to 10 N.m (88 lb in).

  2. Connect the electrical connector.

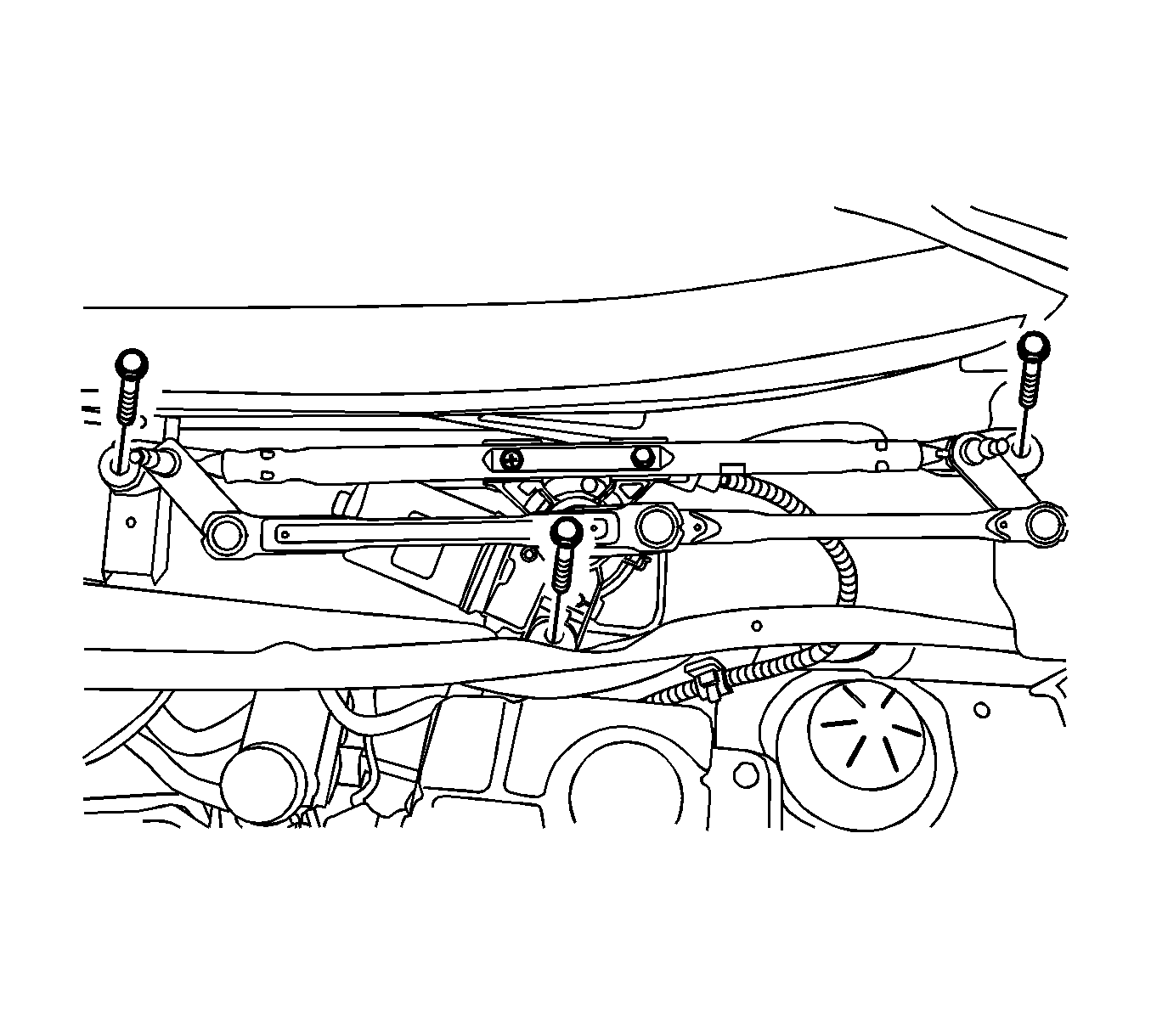

    3. Fig 2: Nut Securing Wiper Arm Linkage
    GM1871152Courtesy of GENERAL MOTORS CORP.
  3. Press the wiper arm linkage onto the motor drive shaft.
  4. Install the wiper arm linkage to the motor drive shaft with the nut.

    Tighten:  Tighten the wiper arm linkage nut to 10 N.m (88 lb in).

  5. Install the left side portion of the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
  6. Connect the negative battery cable.
