Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

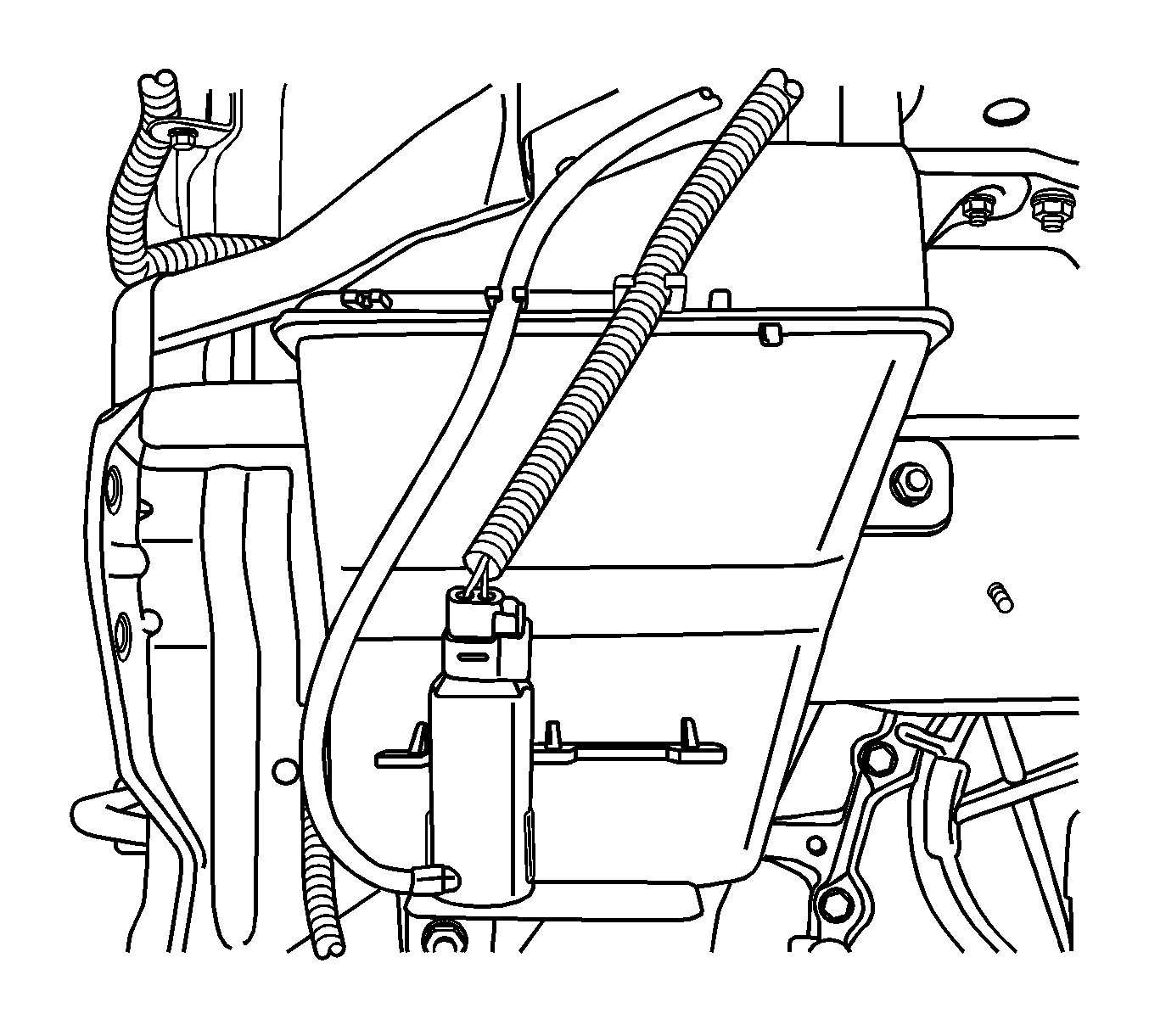

    Fig 1: Windshield Washer Hose
    GM1723055Courtesy of GENERAL MOTORS CORP.
  1. Route the washer hose to the washer reservoir.
  2. Connect the washer hose to the washer reservoir.

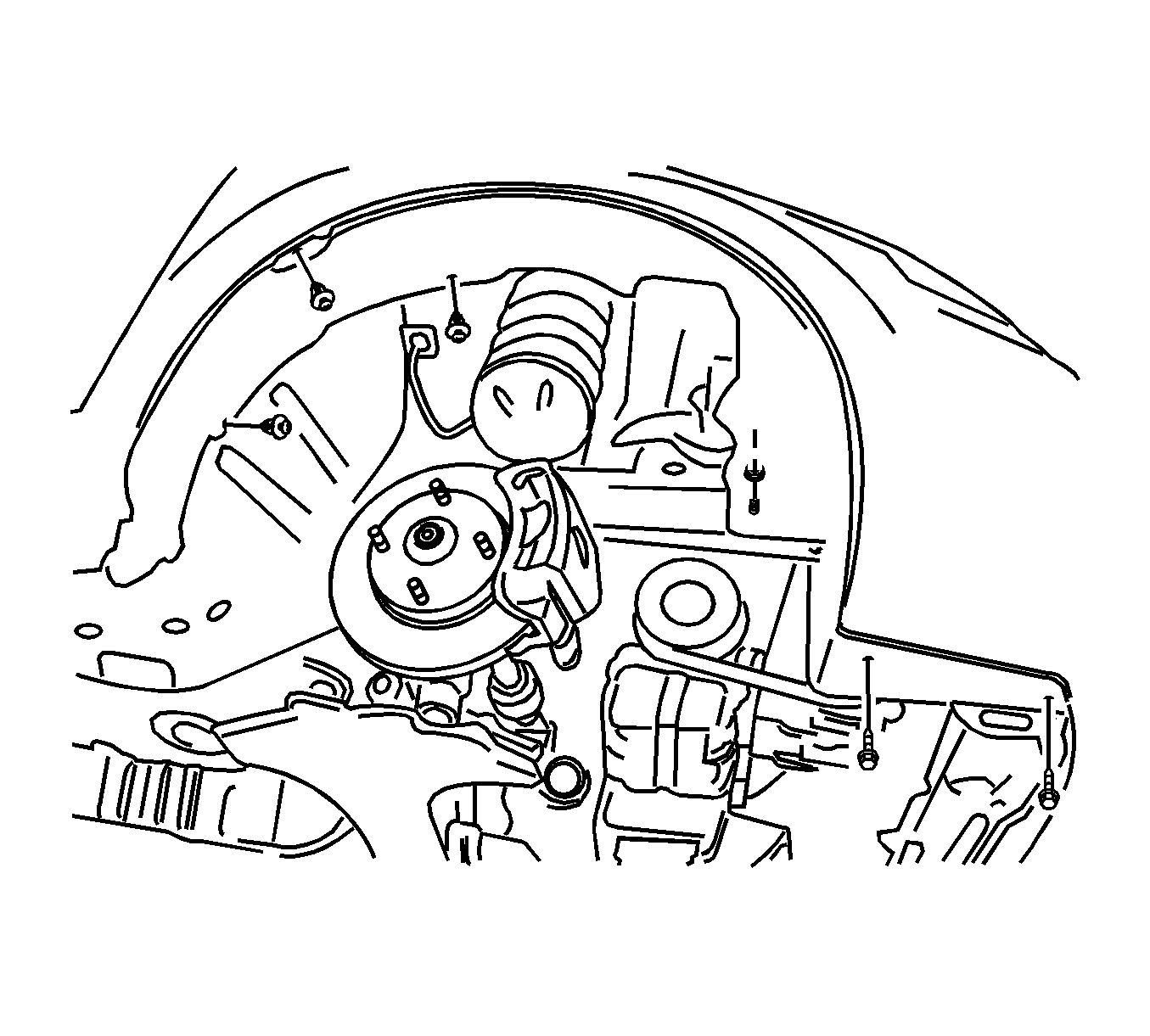

    3. Fig 2: Front Wheel Well Splash Shield
    GM1719817Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  3. Install the front wheel well splash shield with the bolts.

    Tighten:  Tighten the front wheel well splash shield bolts to 1.5 N.m (13 lb in).

  4. Install the front left wheel. Refer to Tire and Wheel Removal and Installation .
  5. Connect the windshield washer hose to the washer nozzles on the hood.
  6. Close the hood.
