Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

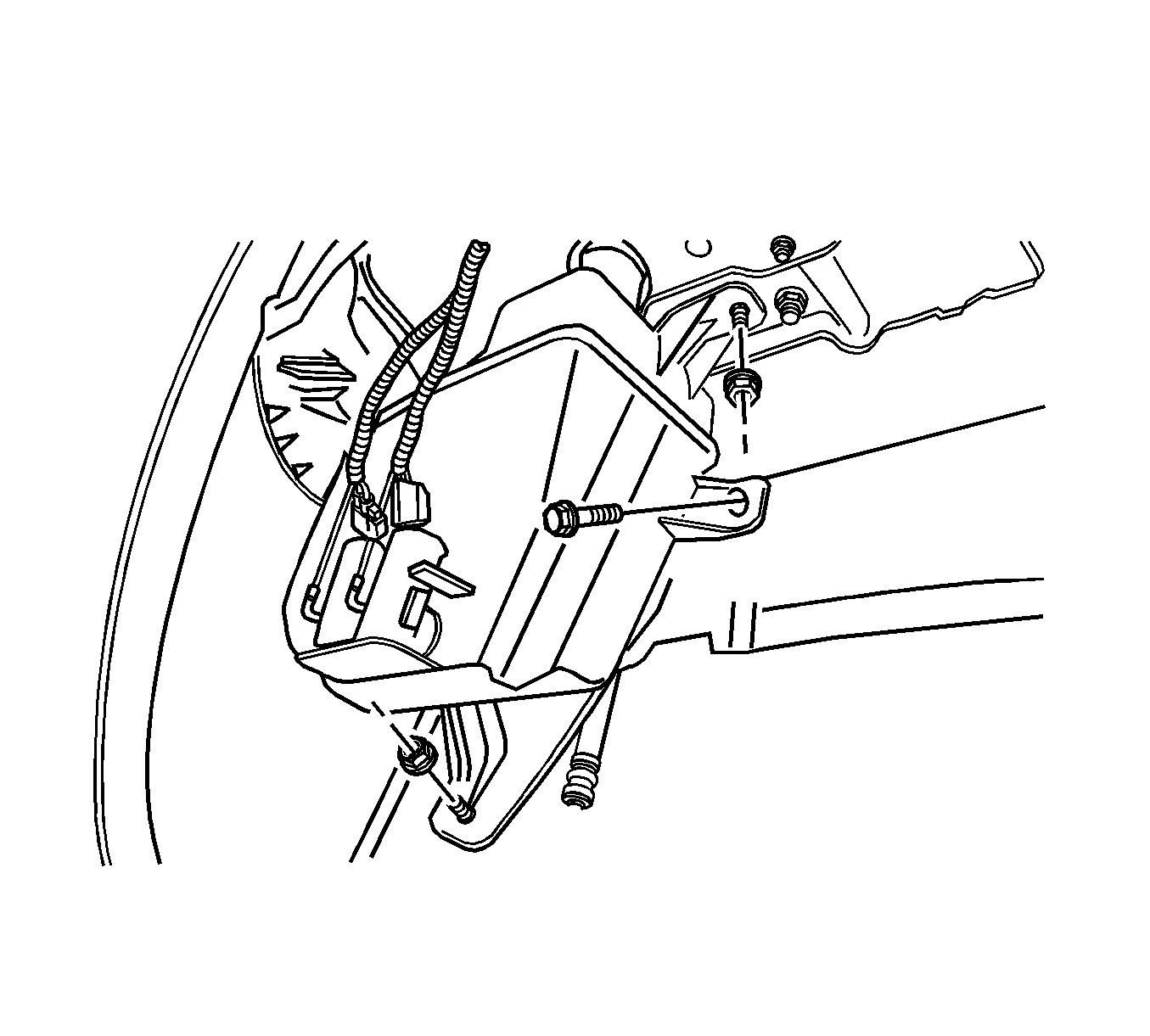

    Fig 1: View of Nuts, Bolts and Reservoir
    GM1248438Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the reservoir with the nuts and the bolts.

    Tighten:  Tighten the washer fluid reservoir nuts and bolts to 9 N.m (80 lb in).

  2. Connect the reservoir pump electrical connectors.
  3. Connect the washer hoses to the reservoir.
    4. Fig 2: Front Wheel Well Splash Shield
    GM1719817Courtesy of GENERAL MOTORS CORP.
  4. Install the front wheel well splash shield with the bolts.

    Tighten:  Tighten the front wheel well splash shield bolts to 1.5 N.m (13 lb in).

  5. Install the front left wheel. Refer to Tire and Wheel Removal and Installation .
  6. Connect the negative battery cable.
