Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

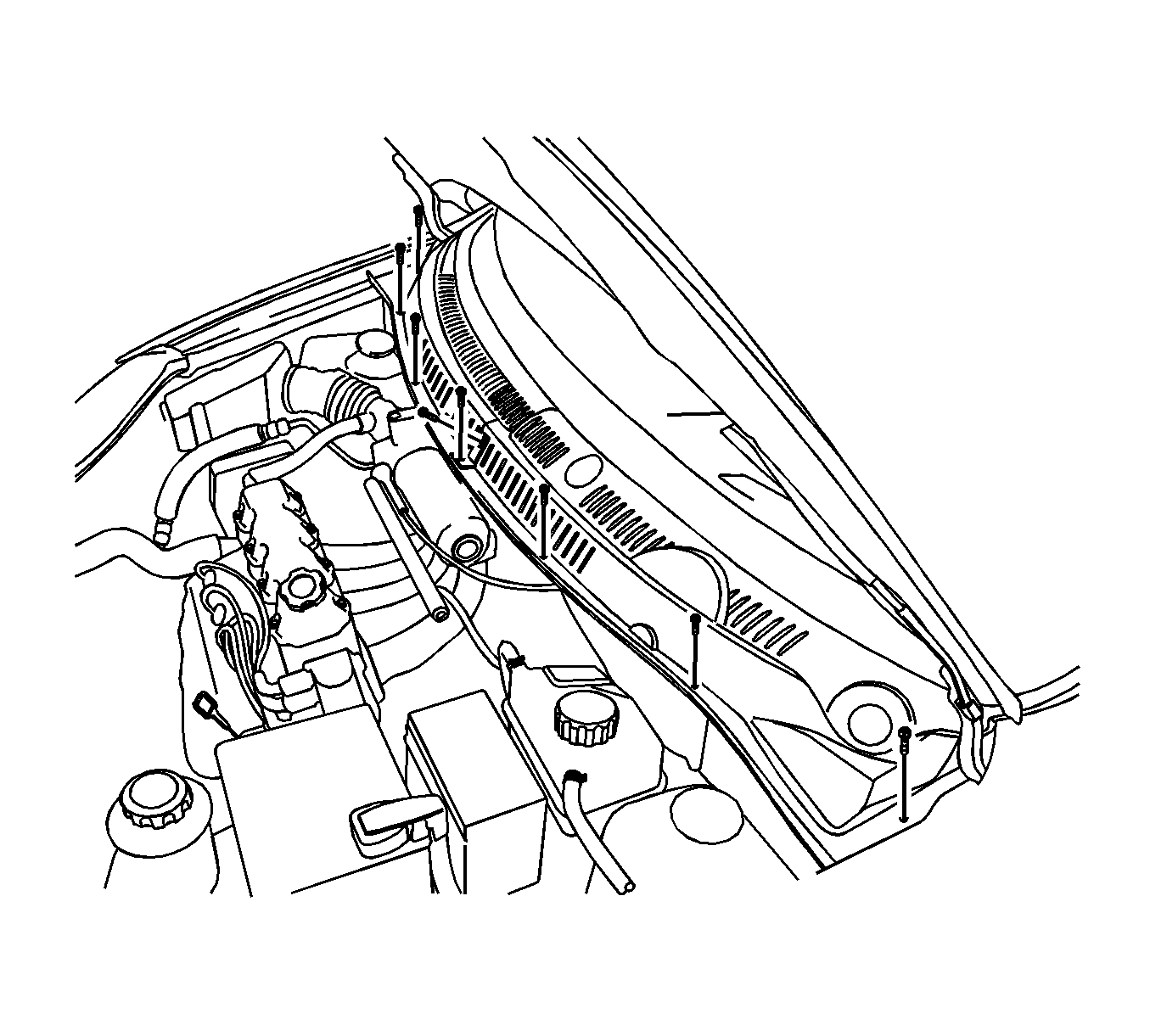

    Fig 1: Air Inlet Grille Screws And 2-Piece Grille
    GM1719826Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the 2-piece grille and the air inlet grille screws.

    Tighten:  Tighten the air inlet grille screws to 2 N.m (18 lb in).

  2. Install the nuts and the wiper arms. Refer to Windshield Wiper Arm Replacement .
