Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

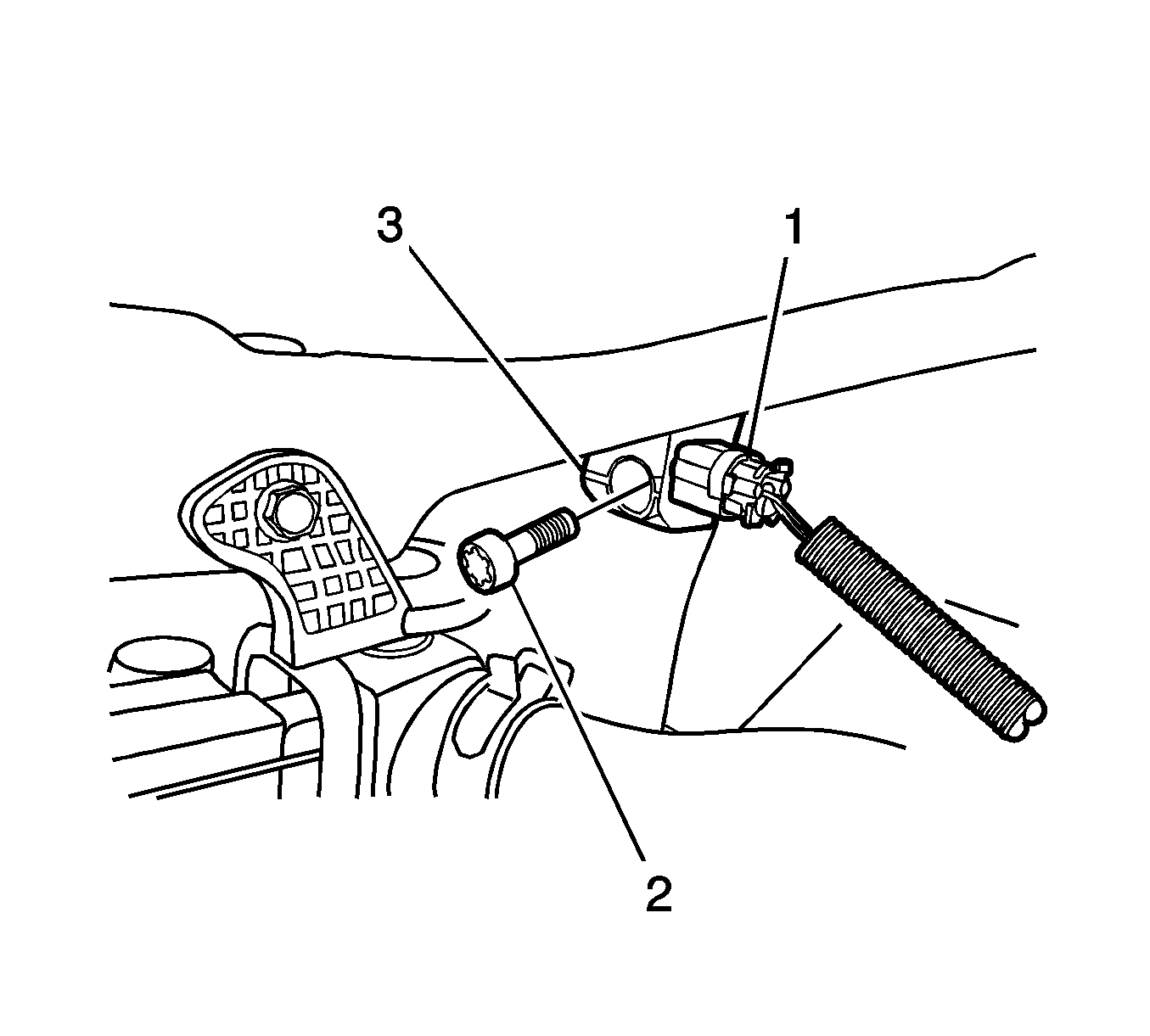

    Fig 1: Air Bag Sensor
    GM1786225Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Sensing and Diagnostic Module Voltage after Ignition is Turned Off Caution .
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Disconnect the connector (1) from the front air bag sensor (3).
  3. Remove the front air bag sensor mounting bolt (2).
  4. Remove the front air bag sensor.
