SIR Connector End Views (Notchback)

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
Glove Box Switch

GM1467036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 5306
  • 2-Way F Connector
Pin Wire Color Circuit No. Function
1 YE - Ignition 1 Voltage
2 PU - Manual Cutoff Switch
Inflatable Restraint Front Discriminating Sensor - Left

GM1902507Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7283-6507-70
  • 2-Way F 040 III Series (YE)
Pin Wire Color Circuit No. Function
1 YE/BK - Front Discriminating Sensor - Left - Low
2 YE - Front Discriminating Sensor - Left - High
Inflatable Restraint Front Discriminating Sensor - Right

GM1902507Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7283-6507-70
  • 2-Way F 040 III Series (YE)
Pin Wire Color Circuit No. Function
1 L-GN - Front Discriminating Sensor - Left - Low
2 BN/WH - Front Discriminating Sensor - Left - High
Inflatable Restraint I/P Module (w/o Passenger Presence System) (PPS)

GM1481288Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • FC 160201724
  • 2-Way Connector (YE)
Pin Wire Color Circuit No. Function
1 WH/D-GN - I/P Module - High Control
2 D-GN/WH - I/P - Low Control
Inflatable Restraint I/P Module (w/Passenger Presence System (PPS))

GM1500895Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • FC 154550400
  • 4-Way F Connector (YE)
Pin Wire Color Circuit No. Function
1 D-GN/WH - I/P Module - Stage 2 - Low Control
2 WH/BK - I/P Module - Stage 2 - High Control
3 GY - I/P Module - Stage 1 - Low Control
4 PU - I/P Module - Stage 1 - High Control

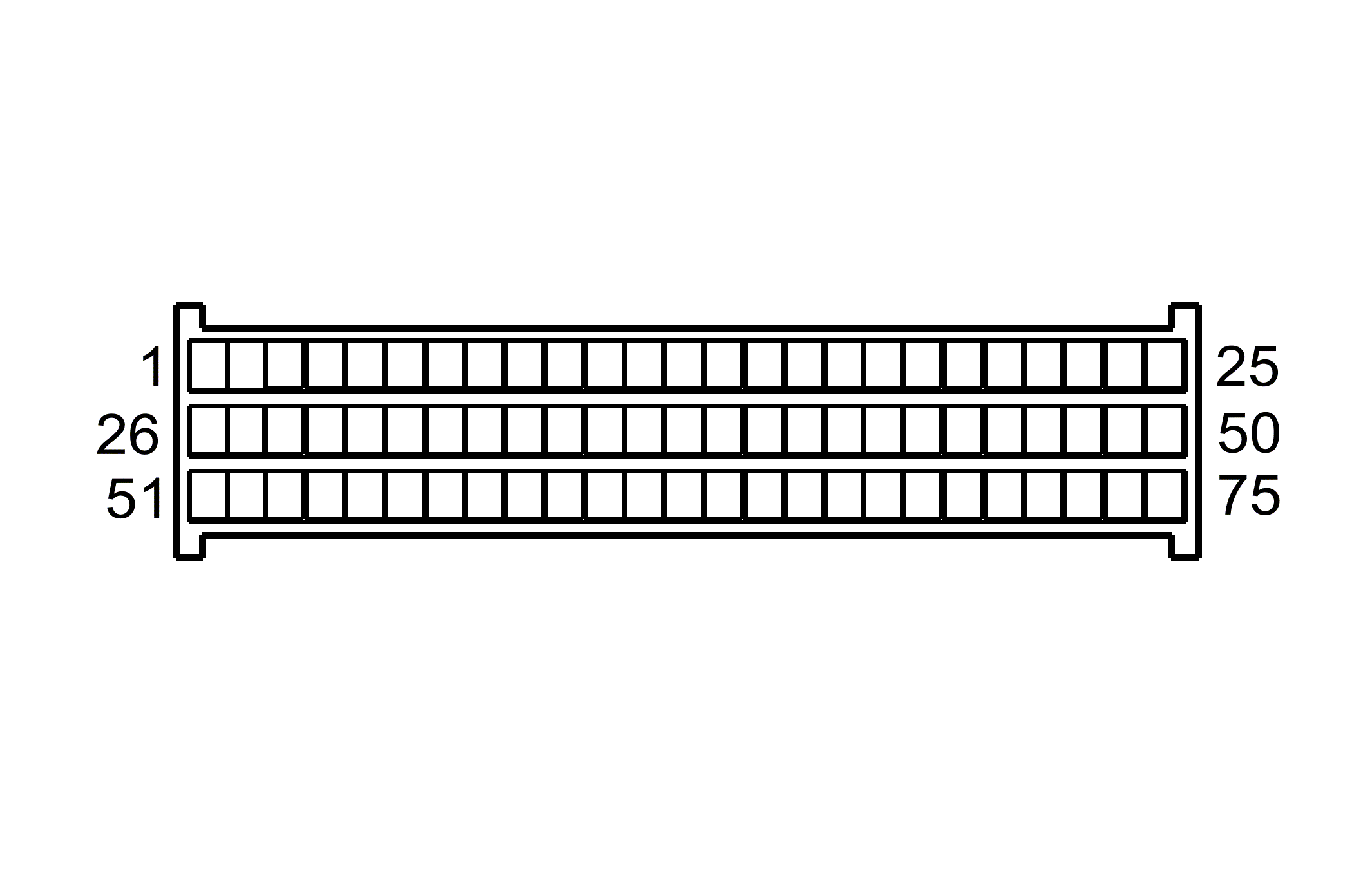

Inflatable Restraint Sensing and Diagnostic Module (SDM)

GM1739061Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1417642
  • 75-Way
Pin Wire Color Circuit No. Function
1-25 - - Not Used
26 PK - Ignition Voltage
27 BN - SIR Indicator Lamp Control
28 BK - Ground
29 D-GN - Steering Wheel Module High Control (w/o PPS)
Steering Wheel Module - Stage 1 - Low Control (w/PPS)
30 WH - Steering Wheel Module Low Control (w/o PPS)
Steering Wheel Module - Stage 1 - High Control (w/PPS)
31 WH/BK - I/P Module High Control (w/o PPS)
I/P Module - Stage 1 - High Control (w/PPS)
32 GN/WH - I/P Module Low Control (w/o PPS)
I/P Module - Stage 1 - Low Control (w/PPS)
33 OG/WH - Seat Belt Pretensioner - Left Low Control (LHD/PPS)
OG - Seat Belt Pretensioner - Right High Control (RHD w/o PPS)
34 BN/WH - Seat Belt Pretensioner - Left High Control (LHD/PPS)
L-GN - Seat Belt Pretensioner - Right Low Control (RHD w/o PPS)
35 L-GN - Seat Belt Pretensioner - Right Low Control (LHD/PPS)
BN/WH - Seat Belt Pretensioner - Left High Control (RHD w/o PPS)
36 GY - Seat Belt Pretensioner - Right High Control (LHD w/o PPS)
OG/WH - Seat Belt Pretensioner - Left Low Control (RHD w/o PPS)
OG - Seat Belt Pretensioner - Right High Control (w/PPS)
37 BN - Side Impact Module - Left - High Control (LHD/PPS)
D-BU - Side Impact Module - Right - Low Control (RHD w/o PPS)
38 D-GN - Side Impact Module - Left - Low Control (LHD/PPS)
GY - Side Impact Module - Right - High Control (RHD w/o PPS)
39 GY - Side Impact Module - Right - High Control (LHD/PPS)
D-GN - Side Impact Module - Left - Low Control (RHD w/o PPS)
40 D-BU - Side Impact Module - Right - Low Control (LHD/PPS)
BN - Side Impact Module - Left - High Control (RHD w/o PPS)
41 PK - Steering Wheel Module - Stage 2 - Low Control (w/PPS)
42 WH - Steering Wheel Module - Stage 2 - High Control (w/PPS)
43 GY - I/P Module - Stage 2 - Low Control (w/PPS)
44 PU - I/P Module - Stage 2 - High Control (w/PPS)
45-51 - - Not Used
52 YE - Seat Belt Indicator Control
53 - - Not Used
54 L-BU - Serial Data
55 - - Not Used
56 D-GN/WH - Passenger Airbag OFF Indicator Control (w/o PPS)
57 L-BU - RPM Signal
58 - - Not Used
59 L-GN - Multifunction Chime Control Signal
60 D-GN - Occupant Sensor - Indicator Status - Off
61 D-GN - Seat Belt Switch Signal
62-63 - - Not Used
64 D-BU/WH - SIR Defeat Indicator Lamp Output - Passenger
65-66 - - Not Used
67 GY/BK - Passenger Airbag ON Indicator Control
68 L-GN/WH - Side Impact Sensor - Right - Signal (LHD)
GY/BK - Side Impact Sensor - Right - Signal (RHD)
69 L-BU/BK - Side Impact Sensor - Right - Signal (LHD)
D-GN/WH - Side Impact Sensor - Right - Signal (RHD)
70 D-GN/WH - Side Impact Sensor - Left - Signal (LHD)
L-BU/BK - Side Impact Sensor - Left - Signal (RHD)
71 GY/BK - Side Impact Sensor - Left - Signal (LHD)
L-GN/WH - Side Impact Sensor - Left - Signal (RHD)
72 D-GN - Front Discriminating Sensor - Right - Low
73 BK - Front Discriminating Sensor - Right - High
74 PU - Front Discriminating Sensor - Left - High
75 RD - Front Discriminating Sensor - Left - Low
Inflatable Restraint Side Impact Module - Left

GM1481288Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7C83-5524-70
  • 2-Way Connector (YE)
Pin Wire Color Circuit No. Function
1 D-BU - Side Impact Module - Left - High Control
2 GY - Side Impact Module - Left - Low Control
Inflatable Restraint Side Impact Module - Right

GM1481288Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7C83-5524-70
  • 2-Way
Pin Wire Color Circuit No. Function
1 D-GN - Side Impact Module - Right - Low Control
2 BN - Side Impact Module - Right - High Control

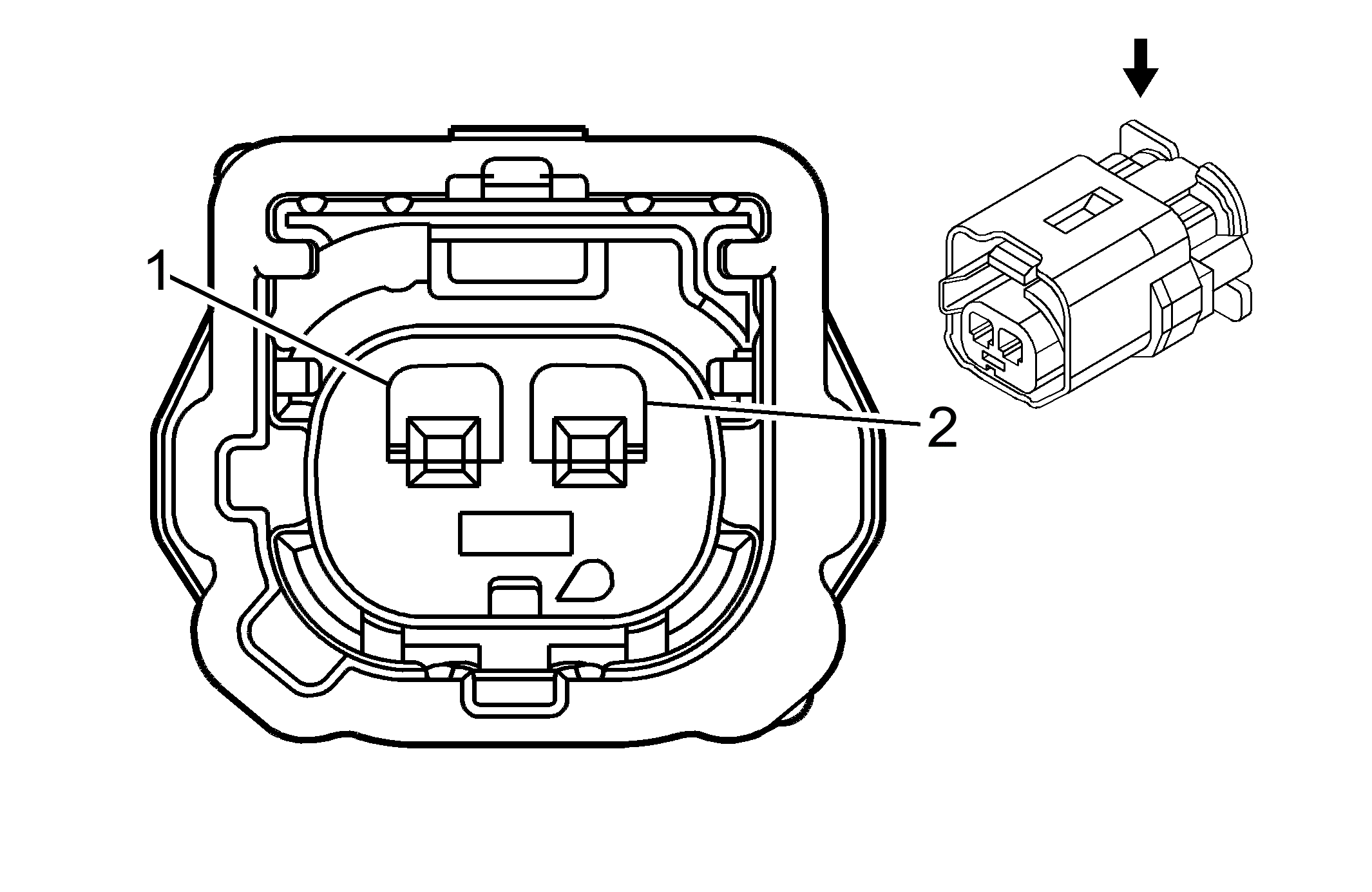

Inflatable Restraint Side Impact Sensor (SIS) - Left

GM1908462Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7283-6502-50
  • 2-Way F 040 III Series Sealed (OG)
Pin Wire Color Circuit No. Function
1 GY/BK - Sensor Low
2 D-GN/WH - Sensor High
Inflatable Restraint Side Impact Sensor (SIS) - Right

GM1908462Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7283-6502-50
  • 2-Way F 040 III Series Sealed (OG)
Pin Wire Color Circuit No. Function
1 L-GN/WH - Sensor Low
2 L-BU/BK - Sensor High
Inflatable Restraint Steering Wheel Module (w/o Passenger Presence System (PPS))

GM1481288Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • FC 160201724
  • 2-Way Connector (YE)
Pin Wire Color Circuit No. Function
1 D-GN - I/P Module - High Control
2 WH - I/P - Low Control
Inflatable Restraint Steering Wheel Module Coil C1 (w/Passenger Presence System (PPS))

GM1500895Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • FC 154550400
  • 4-Way F Connector (YE)
Pin Wire Color Circuit No. Function
1 WH - I/P Module - Stage 2 - High Control
2 PK - I/P Module - Stage 2 - Low Control
3 WH - I/P Module - Stage 1 - High Control
4 D-GN - I/P Module - Stage 1 - Low Control
Passenger Airbag Disable Switch

GM73232Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 0-1743282-1
  • 8-Way M Connector (BK)
Pin Wire Color Circuit No. Function
1 D-GN/WH - Passenger Airbag OFF Indicator Control
2 BK - Ground
3 D-GN - Occupant Sensor - Indicator Status - Off
4 PU - Manual Cutoff Switch
5 BK - Ground
6-8 - - Not Used
Passenger Presence System (PPS) Sensor

GM810084Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1-0967640-1
  • 4-Way F Connector (BK)
Pin Wire Color Circuit No. Function
1 PK - Ignition 1 Voltage
2 D-BU/WH - SIR Defeat Indicator Lamp Output - Passenger
3 BK - Ground
4 - - Not Used

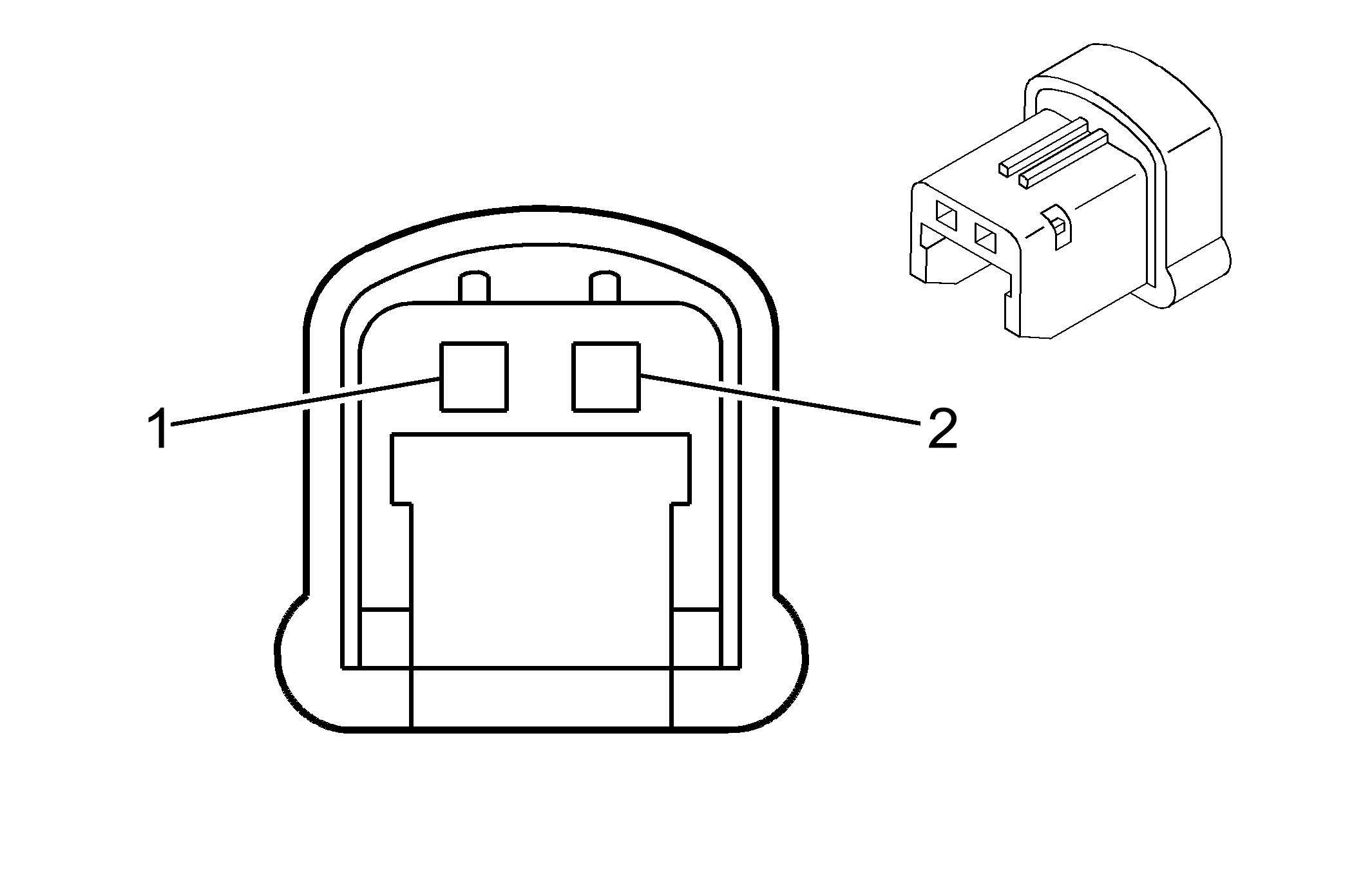

Seat Belt Pretensioner - Left

GM1481290Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • V23540-M5302-Y22
  • 2-Way Connector (GN)
Pin Wire Color Circuit No. Function
1 BN/WH - Seat Belt Pretensioner - Left - High Control
2 OG/WH - Seat Belt Pretensioner - Left - Low Control
Seat Belt Pretensioner - Right

GM1481290Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • V23540-M5302-Y22
  • 2-Way Connector (GN)
Pin Wire Color Circuit No. Function
1 L-GN - Seat Belt Pretensioner - Right - Low Control
2 GY - Seat Belt Pretensioner - Right - High Control (LHD w/o PPS)
OG - Seat Belt Pretensioner - Right - High Control (RHD/PPS)
