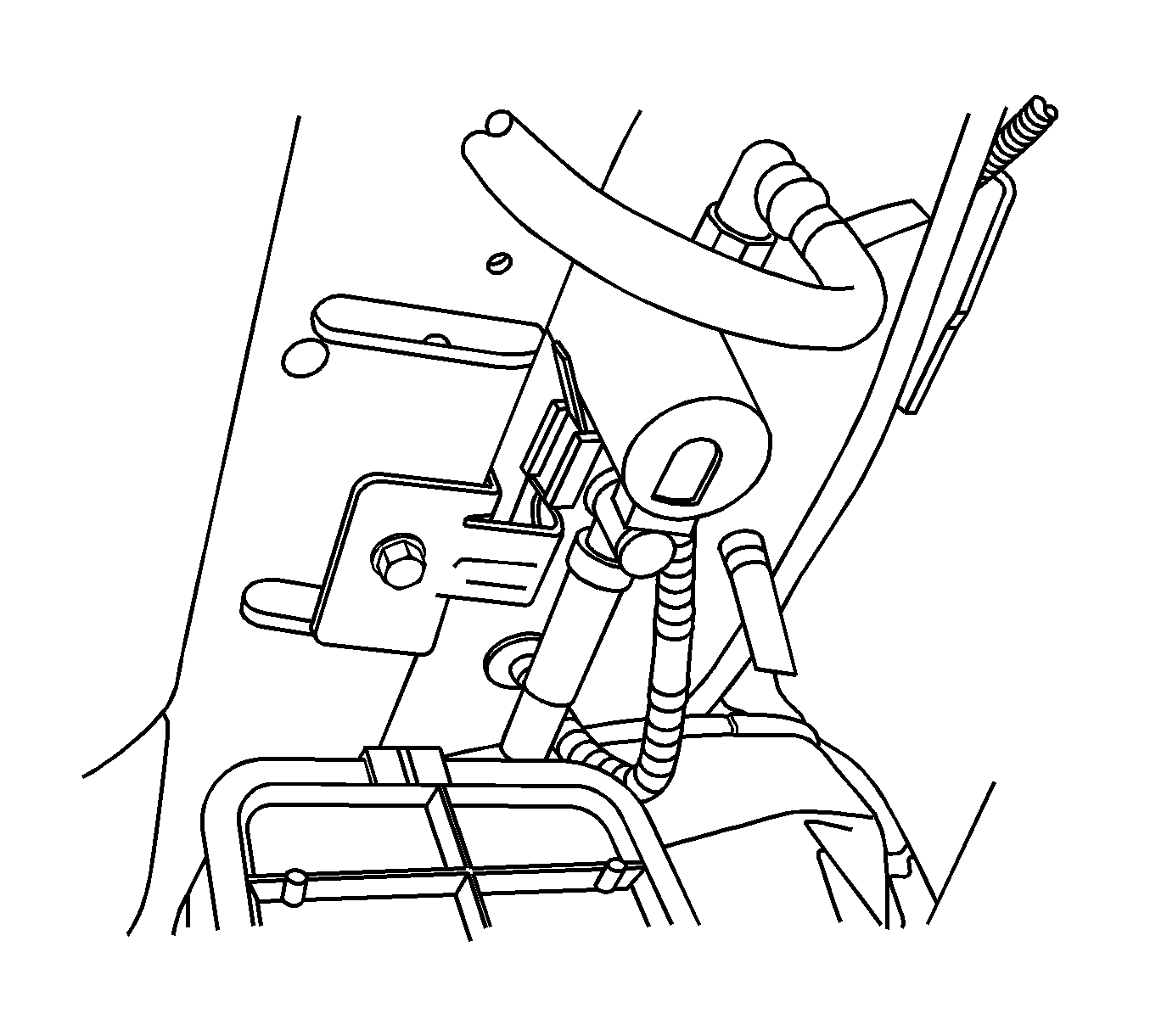

    Fig 1: View Of EVAP Canister Vent Solenoid Valve Bracket And Bolt
    GM1528391Courtesy of GENERAL MOTORS CORP.
    CAUTION: Do not allow smoking or the use of open flames in the area where work on the fuel or EVAP system is taking place. Anytime work is being done on the fuel system, disconnect the negative battery cable, except for those tests where battery voltage is required.
  1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the evaporative emission (EVAP) canister vent solenoid valve bracket bolt.

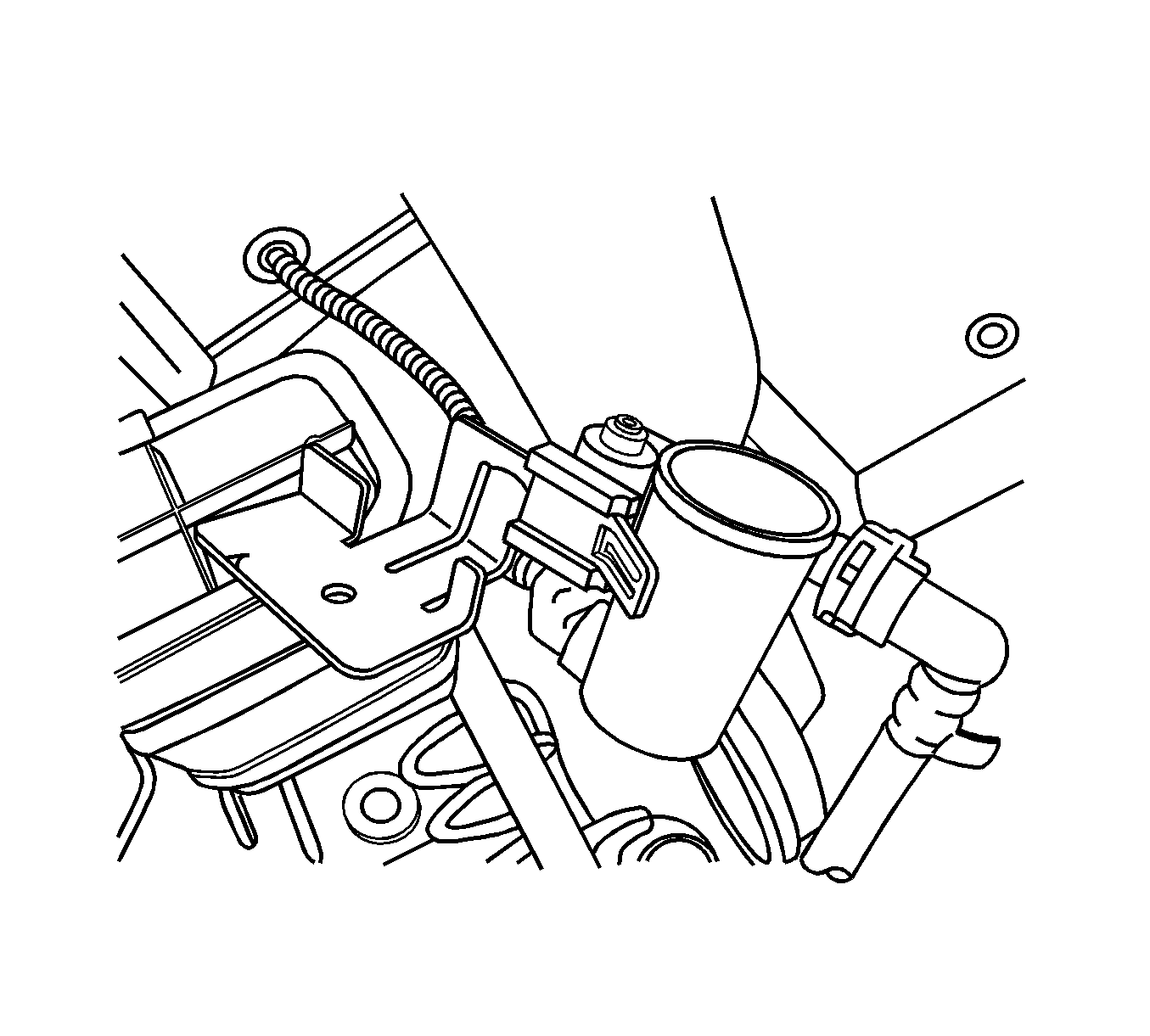

    3. Fig 2: Removing And Installing EVAP Canister Vent Solenoid Valve Bracket
    GM1528395Courtesy of GENERAL MOTORS CORP.
  3. Remove the EVAP canister vent solenoid valve bracket.

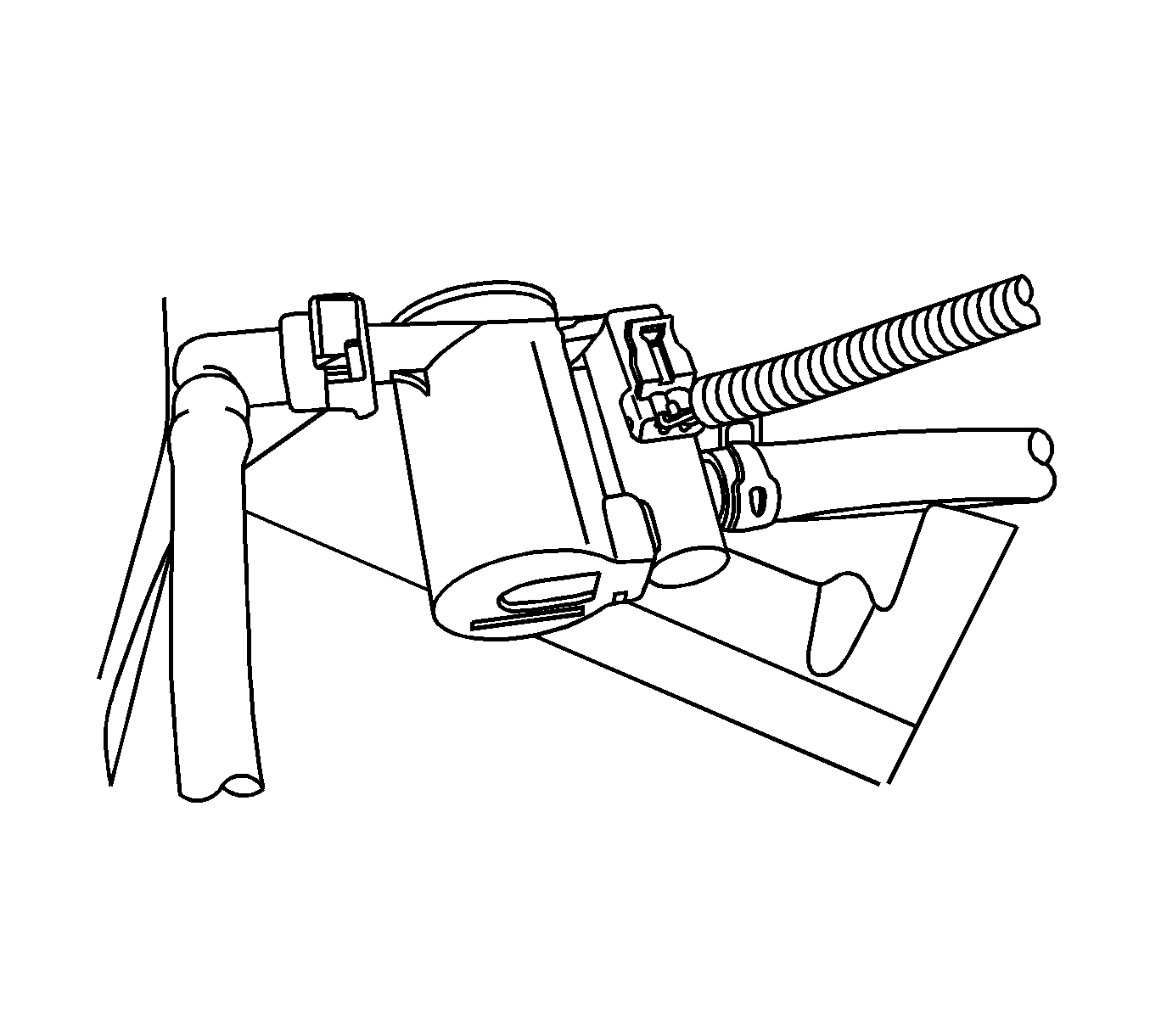

    4. Fig 3: Removing And Installing EVAP Canister Vent Solenoid Valve
    GM1528398Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the EVAP canister vent solenoid valve electrical connector.
  5. Remove the EVAP canister vent solenoid valve hose clip.
  6. Disconnect the EVAP canister vent solenoid valve hoses.
  7. Remove the EVAP canister vent solenoid valve.
