Removal ProcedureInstallation Procedure

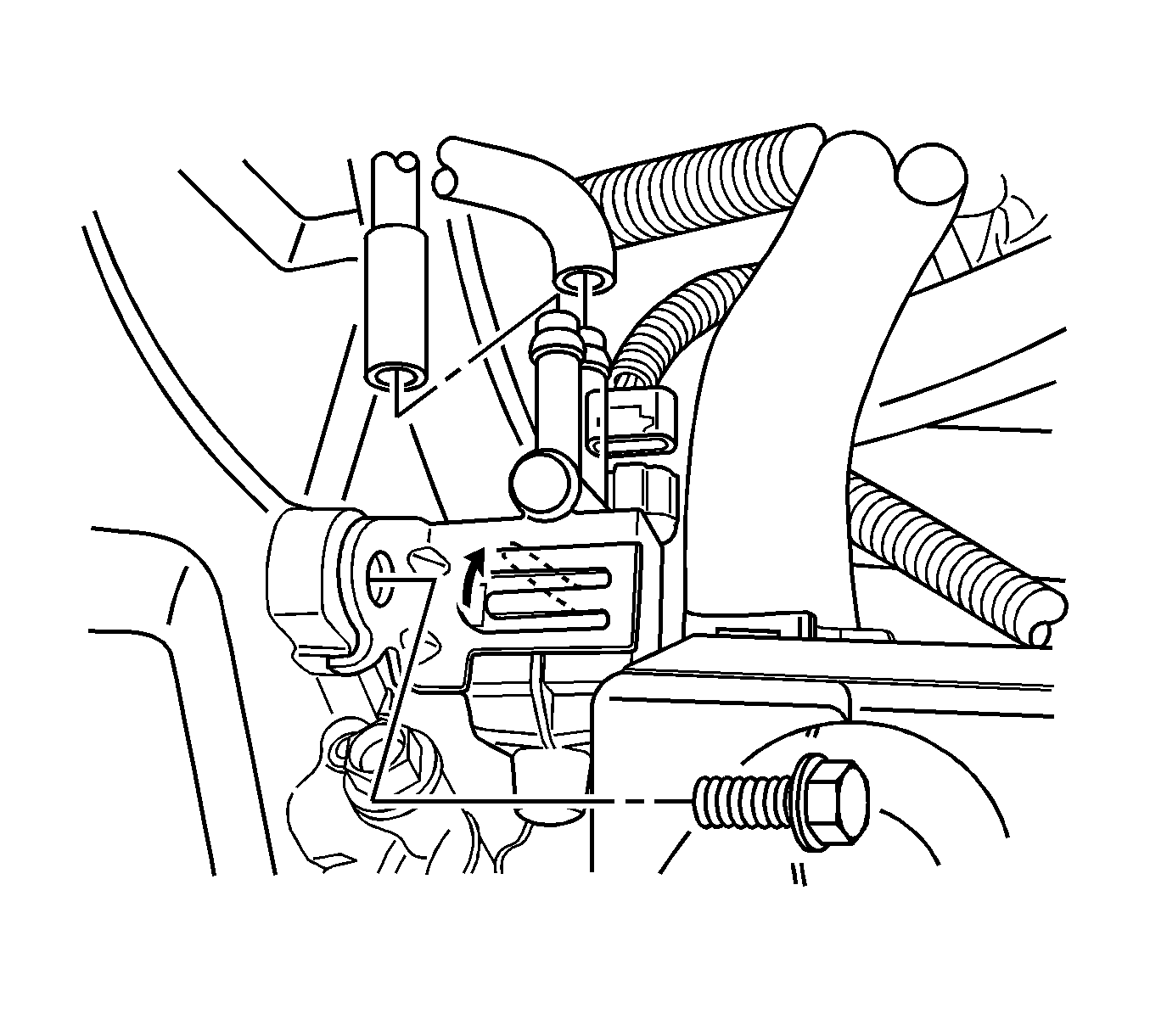

    Fig 1: EVAP Canister Purge Solenoid Bracket
    GM1256165Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Disconnect the evaporative emission (EVAP) canister purge solenoid connector.
  3. Disconnect the vacuum hoses from the EVAP canister purge solenoid.
  4. Remove the EVAP canister purge solenoid bracket bolt from the intake manifold.
  5. Unclip the EVAP canister purge solenoid from the mounting bracket.
