Removal Procedure

    Fig 1: View Of Throttle Cable
    GM1371852Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Disconnect the intake air temperature (IAT) sensor connector.
  3. Disconnect the air intake tube from the throttle body.
  4. Disconnect the breather tube from the valve cover.
    5. Fig 2: Location Of Air Cleaner
    GM1371859Courtesy of GENERAL MOTORS CORP.
  5. Remove the air filter housing bolts.
  6. Remove the air filter housing.
  7. Remove the right front wheel. Refer to Tire and Wheel Removal and Installation .
  8. Remove the right front splash shield.
    9. Fig 3: View Of Balancer
    GM1371872Courtesy of GENERAL MOTORS CORP.
  9. Remove the accessory drive belt.
  10. Remove the crankshaft pulley bolt.
  11. Remove the crankshaft pulley.
    12. Fig 4: View Of Timing Belt Cover Bolts
    GM1371903Courtesy of GENERAL MOTORS CORP.
  12. Remove the upper front timing belt cover bolts.
  13. Remove the upper front timing belt cover.
  14. Remove the lower front timing belt cover bolts.
  15. Remove the lower front timing belt cover.
  16. Remove the power steering pump mounting bolts, if equipped.
  17. Install the crankshaft pulley bolt.
    18. Fig 5: Timing Mark On Crankshaft Gear
    GM1824512Courtesy of GENERAL MOTORS CORP.
  18. Using the crankshaft pulley bolt, rotate the crankshaft clockwise until the timing mark on the crankshaft gear is aligned with the timing mark at the bottom of the rear timing belt cover.
    19. Fig 6: Using J42492-A Rotating Coolant Pump
    GM1371883Courtesy of GENERAL MOTORS CORP.
  19. Slightly loosen the coolant pump retaining bolts.
  20. Using the J 42492-A  (1), rotate the coolant pump counterclockwise to release the tension on the timing belt.

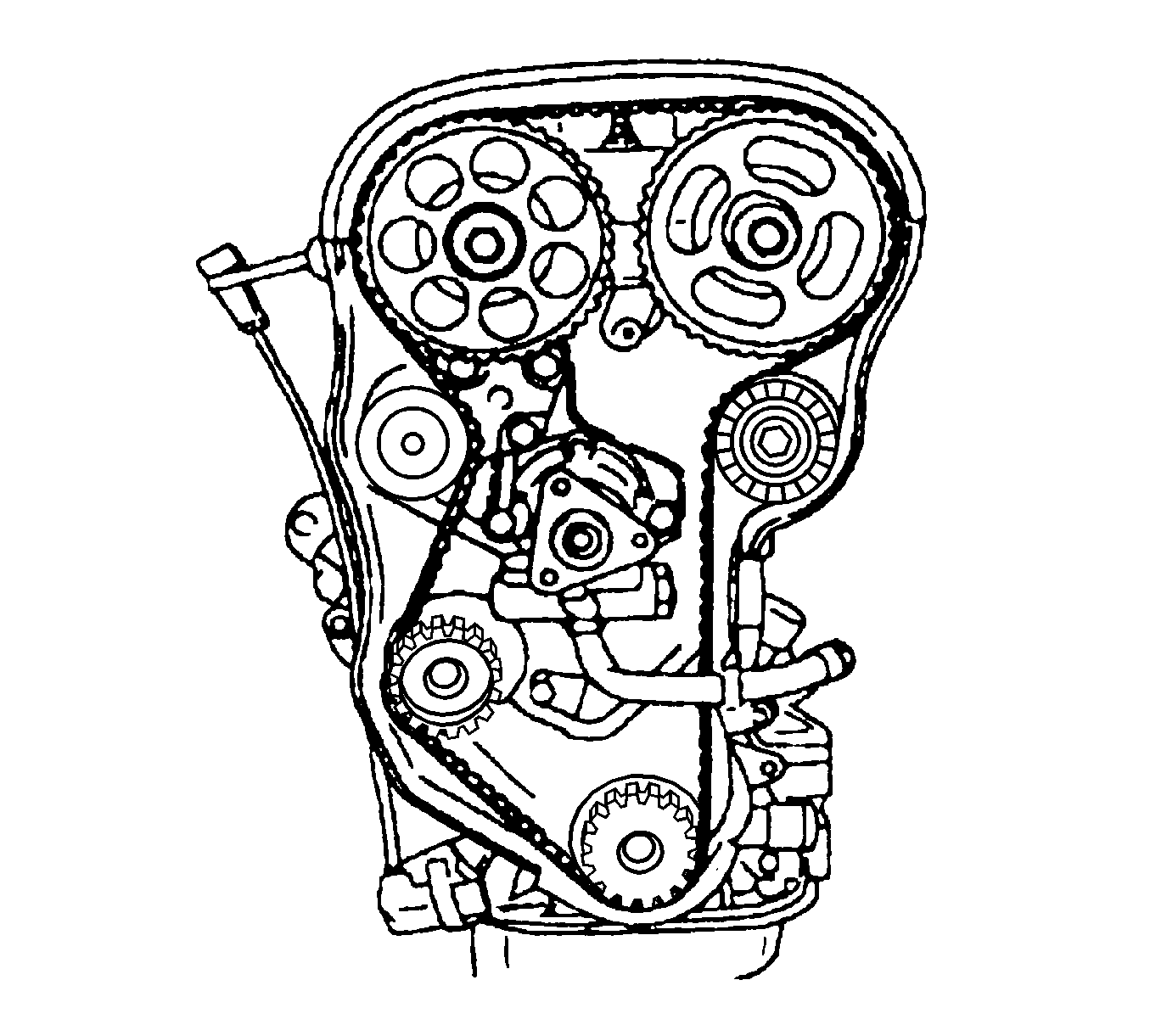

    21. Fig 7: View Of Timing Belt
    GM1371907Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Remove the timing belt behind the power steering pump.
  21. Remove the timing belt.
