Installation Procedure

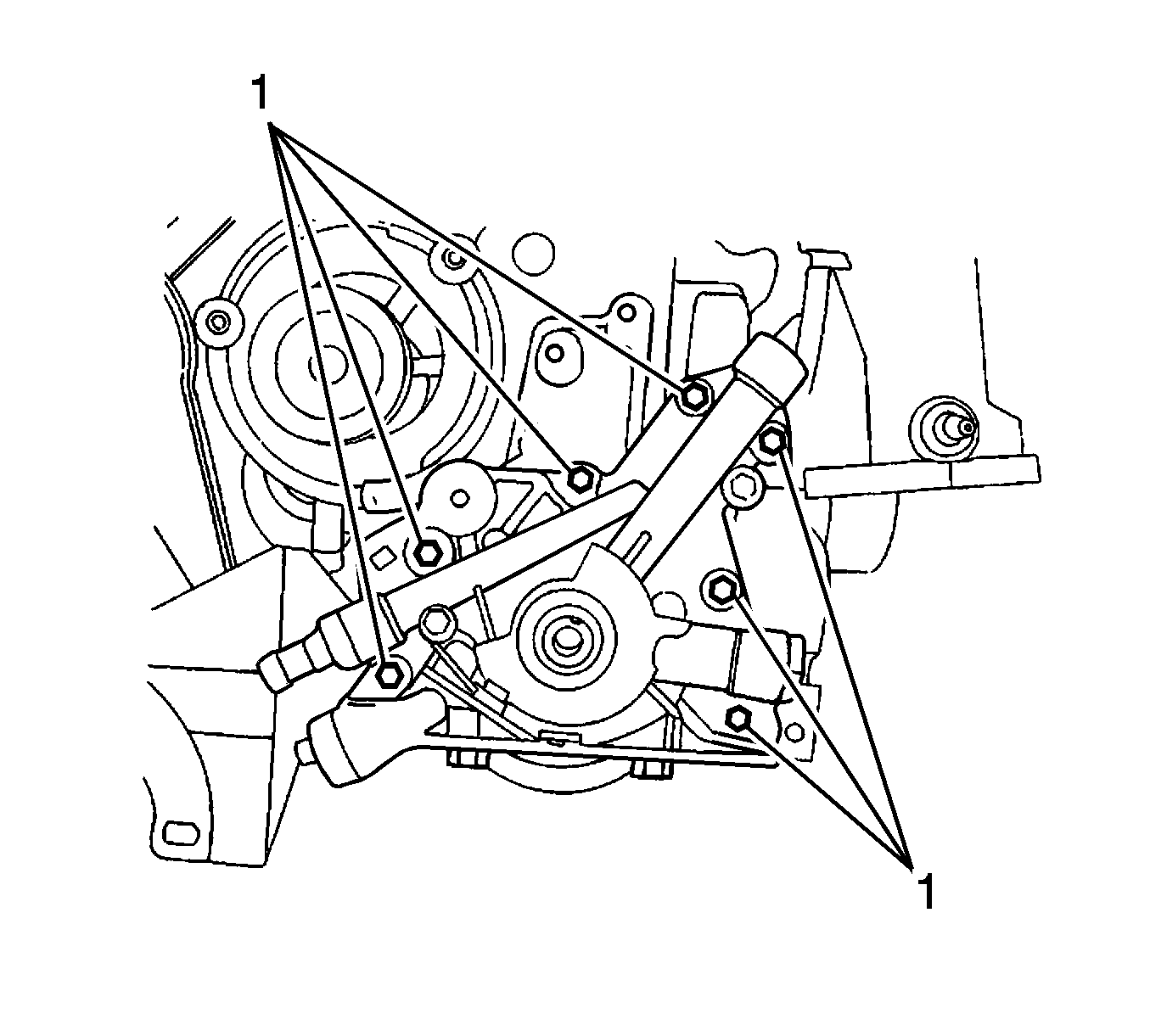

    Fig 1: Identifying Oil Pump Retaining Bolts
    GM1241645Courtesy of GENERAL MOTORS CORP.
  1. Apply a bead of room temperature vulcanizing (RTV) sealer to the oil pump gasket.
  2. Install a new oil pump gasket to the oil pump.
  3. Coat the threads of the oil pump bolts with LOCTITE® 242.
    4. NOTE: Refer to Fastener Notice .
  4. Install the oil pump to the engine block with the bolts (1).

    Tighten:  Tighten the oil pump retaining bolts to 10 N.m (89 lb in).

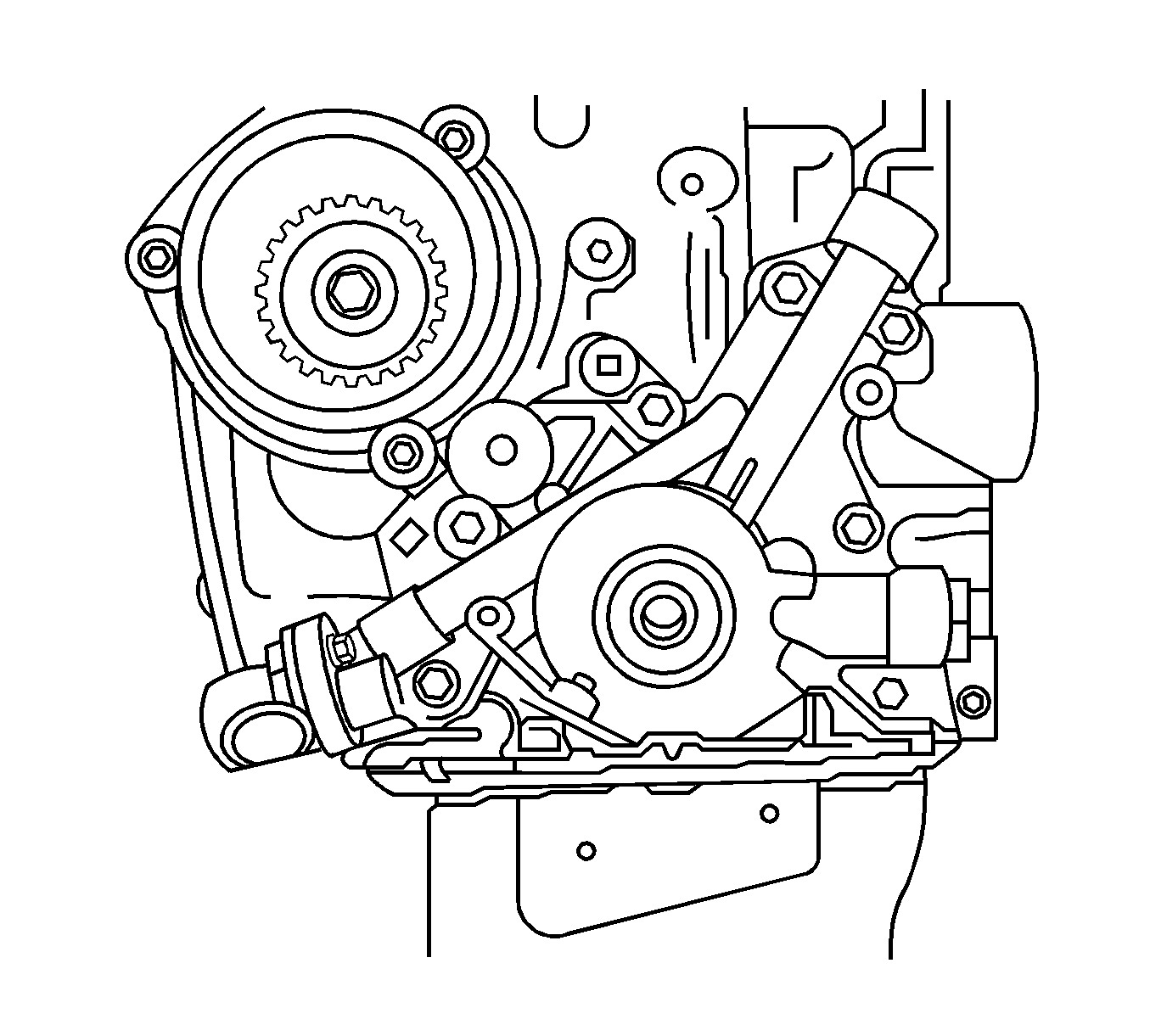

    5. Fig 2: View Of Crankshaft Seal
    GM1241648Courtesy of GENERAL MOTORS CORP.
  5. Install a new oil pump to the crankshaft shaft seal.
  6. Coat the lip of the seal with a thin coat of grease.

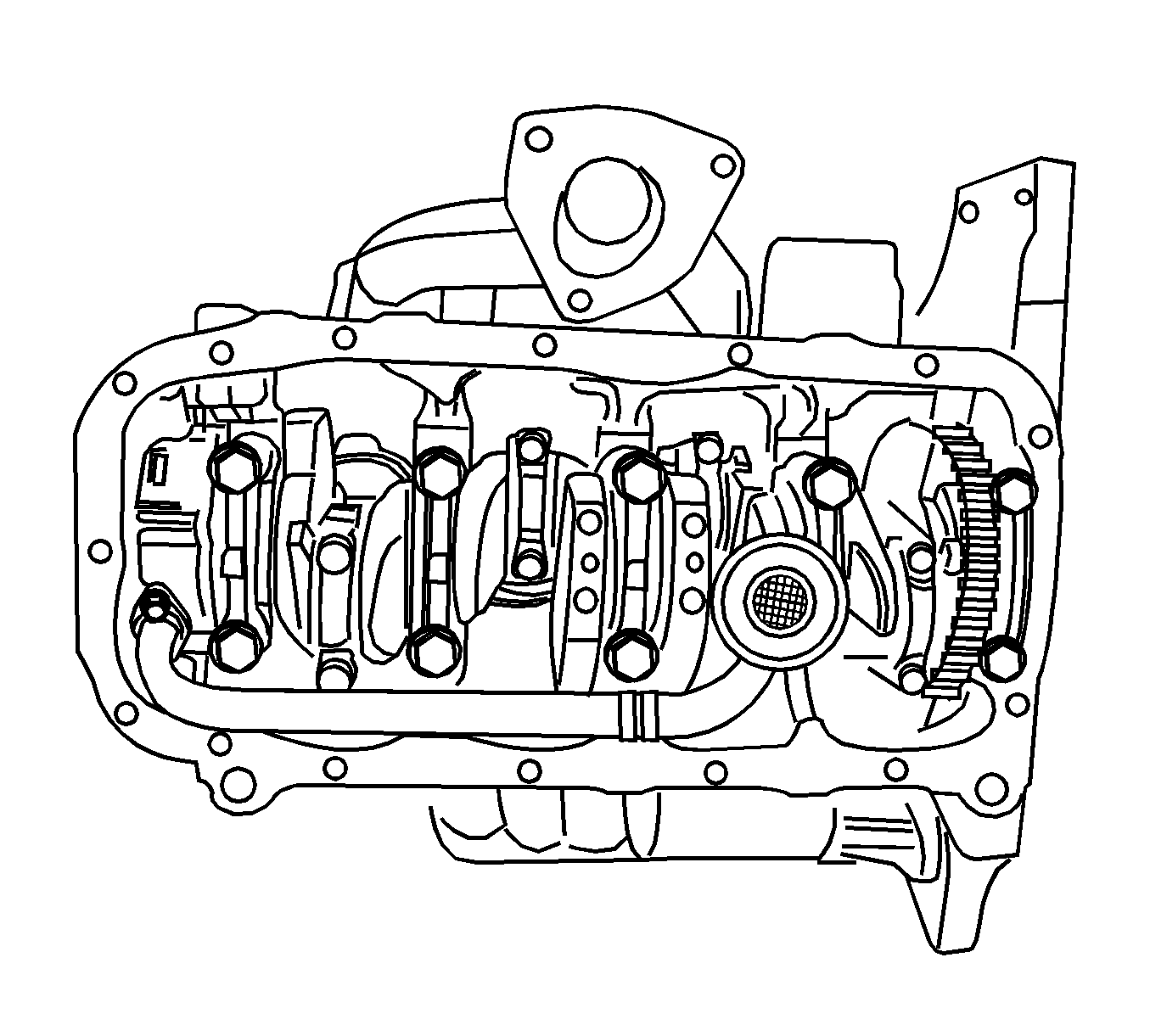

    7. Fig 3: View Of Oil Pump/Pickup Tube And Bolts
    GM1241642Courtesy of GENERAL MOTORS CORP.
  7. Coat the threads of the oil pump pickup tube and the support bracket bolts with LOCTITE ®242.
  8. Install the oil pump pickup tube and the bolts.

    Tighten:  Tighten the oil pump pickup tube and the support bracket bolts to 10 N.m (89 lb in).

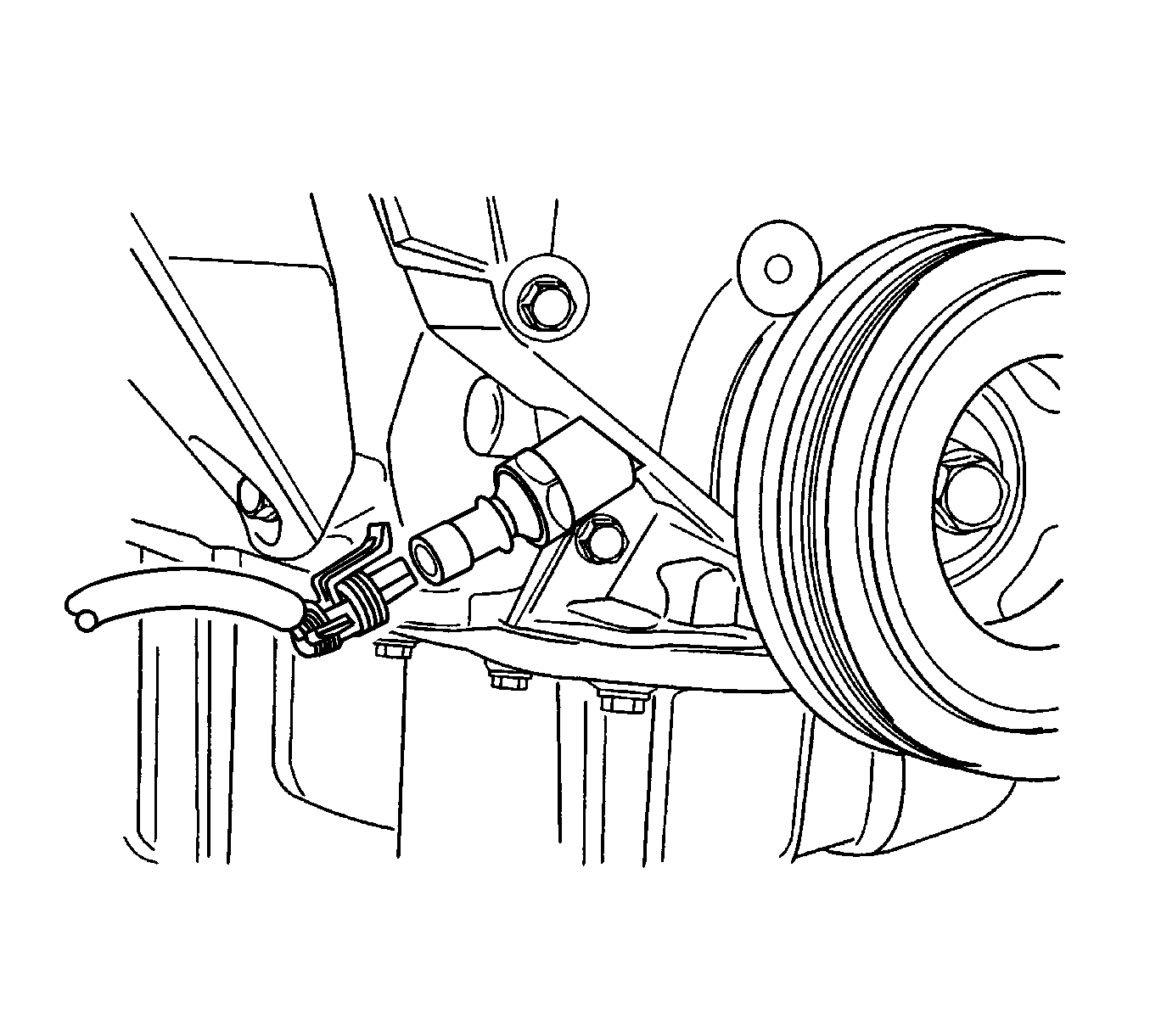

    9. Fig 4: Connecting Oil Pressure Switch Connector
    GM1241614Courtesy of GENERAL MOTORS CORP.
  9. Install the oil pan. Refer to Oil Pan Replacement .
  10. Install the CKP sensor and the bolt.

    Tighten:  Tighten the crankshaft position sensor retaining bolt to 10 N.m (89 lb in).

  11. Connect the oil pressure switch connector.
  12. Install the timing belt cover. Refer to Timing Belt Cover Replacement .
  13. Install the timing belt. Refer to Timing Belt Replacement .
  14. Connect the negative battery cable.
