Installation Procedure

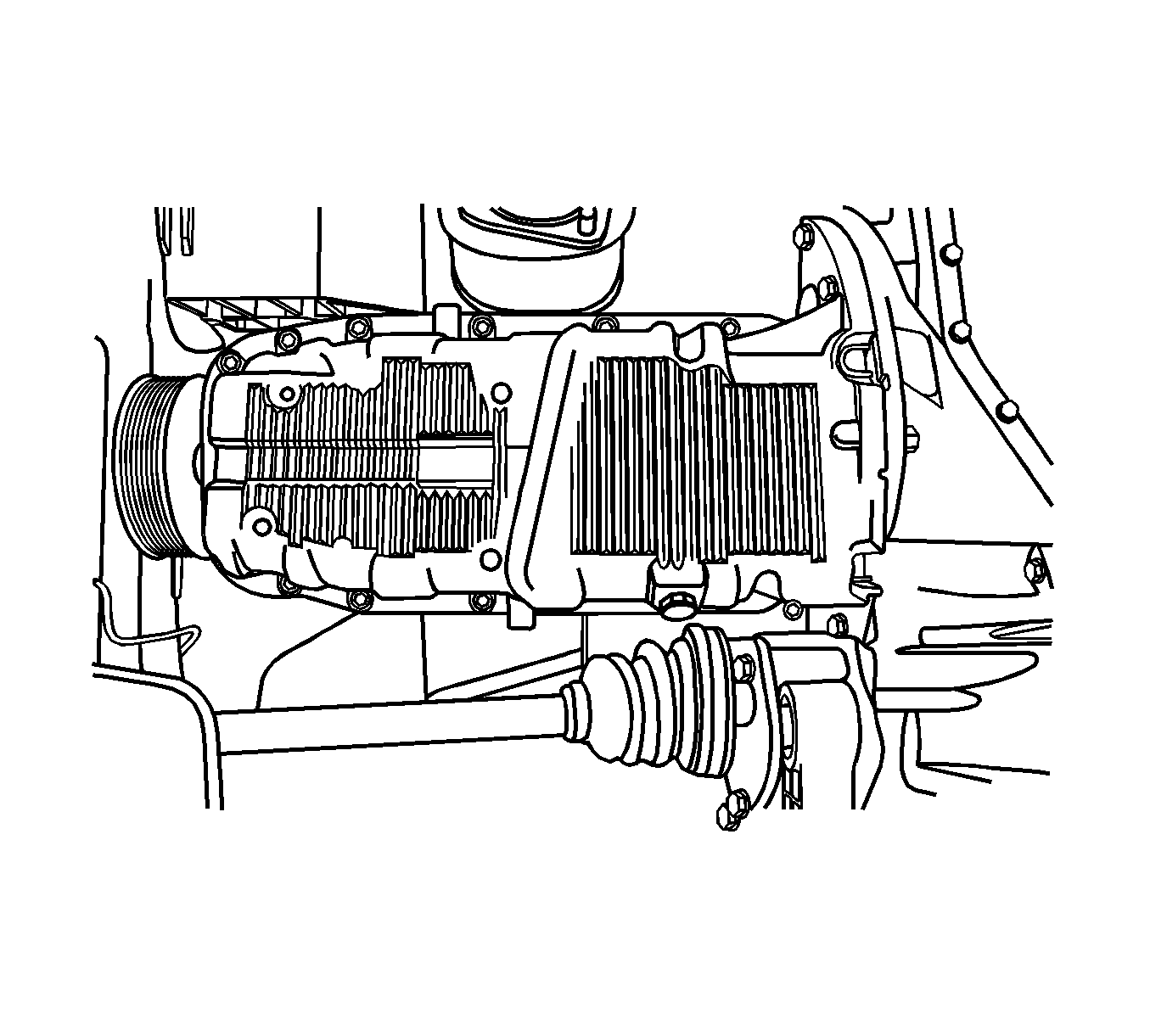

Fig 1: View Of Oil Pan

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Install the oil pan within 5 minutes after applying the liquid gasket to the oil pan.

NOTE: Refer to Fastener Notice .

Install the oil pan retaining bolts.
Tighten: Tighten the bolts to 10 N.m (89 lb in).
Discard the used oil pan drain plug washer and replace it with a new one.
Install the grommet.

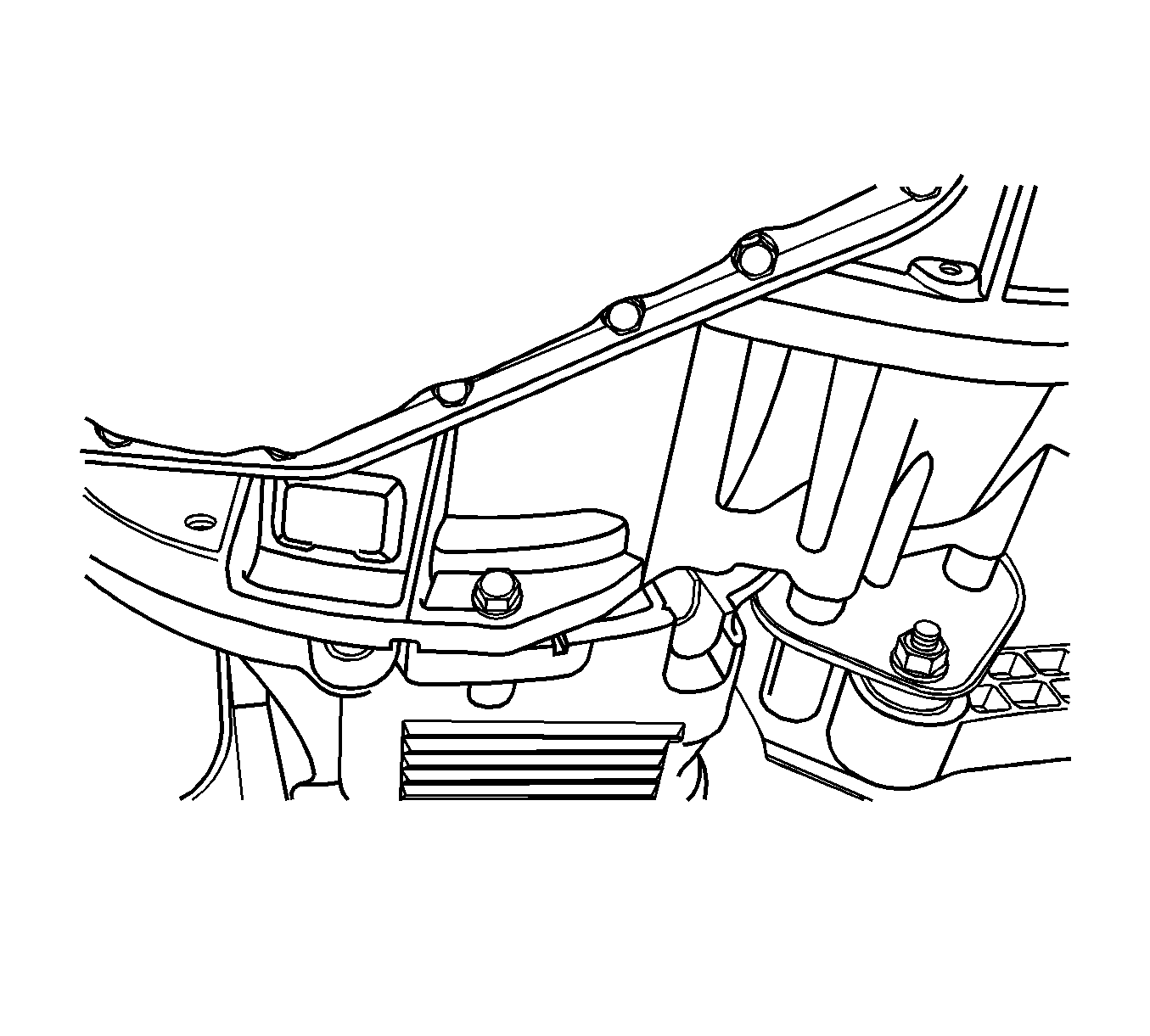

Fig 2: View Of Transaxle Housing

Courtesy of GENERAL MOTORS CORP.

Install the bolt that secures the transaxle housing to the oil pan.
Tighten: Tighten the bolt to 25 N.m (18 lb ft).

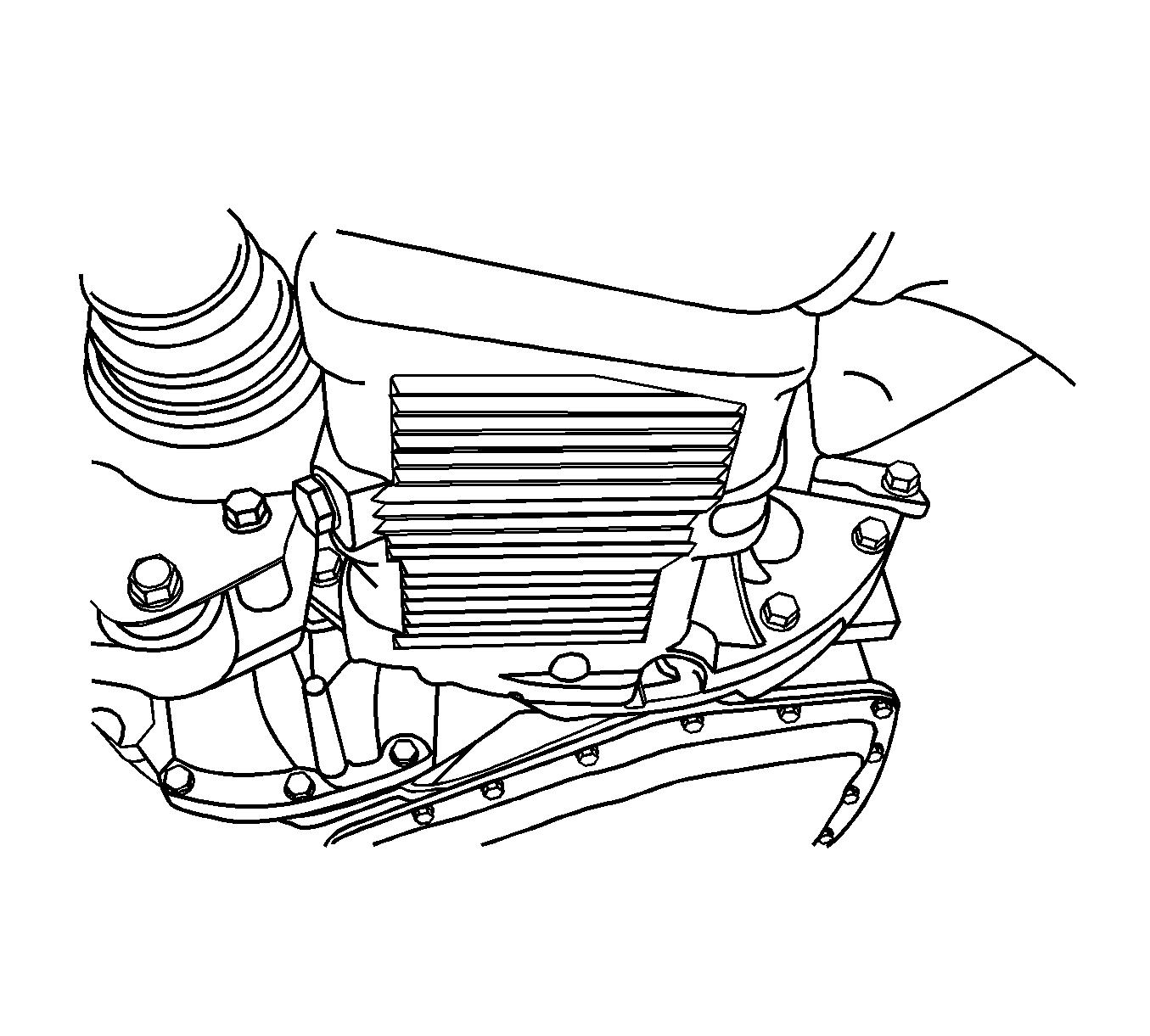

Fig 3: View Of Oil Pan And Transaxle Housing

Courtesy of GENERAL MOTORS CORP.

Install the bolts that secure the oil pan to the transaxle housing.
Tighten: Tighten the bolts to 25 N.m (18 lb ft).

Fig 4: View Of Catalytic Converter Lower Flange Nuts

Courtesy of GENERAL MOTORS CORP.

Install the catalytic converters and the exhaust pipe as a unit.
Tighten:
- Tighten the nuts that secure the catalytic converter to the exhaust manifold to 50 N.m (37 lb ft).
- Tighten the exhaust pipe bracket bolts to 50 N.m (37 lb ft).
- Tighten the front muffler nuts to 30 N.m (22 lb ft).

Fig 5: View Of Muffler Pipe Nuts

Courtesy of GENERAL MOTORS CORP.

Connect the HO2S.
Install the right front splash shield.
Install the right front wheel. Refer to Tire and Wheel Removal and Installation .
Connect the negative battery cable.
Refill the engine crankcase with engine oil.
