Installation Procedure

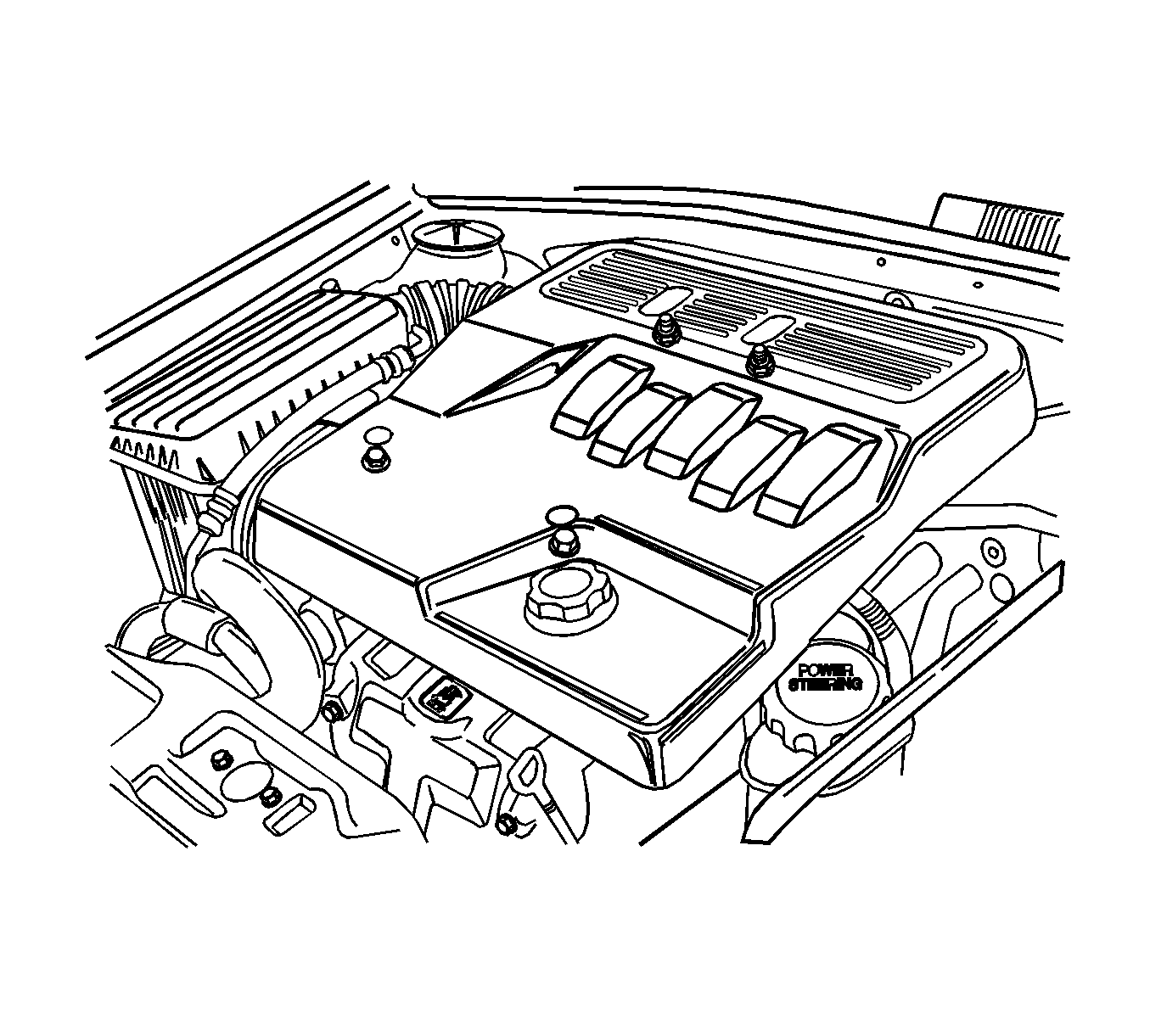

    Fig 1: Installing Engine Cover
    GM1291141Courtesy of GENERAL MOTORS CORP.
  1. Position the engine cover on the engine.
    2. NOTE: Refer to Fastener Notice .
  2. Install the engine cover bolts and nuts.

    Tighten:  Tighten the engine cover bolts and nuts to 10 N.m (89 lb ft).
