Removal Procedure

    Fig 1: Identifying Cover Screws
    GM1371851Courtesy of GENERAL MOTORS CORP.
  1. Remove the timing belt. Refer to Timing Belt Replacement .
  2. Remove the engine cover bolts.
  3. Remove the engine cover.
    4. Fig 2: View Of Throttle Cable
    GM1371852Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the breather tube form the valve cover.
  5. Disconnect the crankcase ventilation tube from the valve cover.
    6. Fig 3: View Of Camshaft Position (CMP) Sensor Connector
    GM1371854Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the camshaft position (CMP) sensor connector.
    7. Fig 4: View Of Ignition Wires And Spark Plugs
    GM1371855Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the ignition wires from the spark plugs.
    8. Fig 5: Valve Cover Bolts Location
    GM1371856Courtesy of GENERAL MOTORS CORP.
  8. Remove the valve cover bolts.
  9. Remove the valve cover and gasket.
    10. IMPORTANT: Use extreme care when removing the camshaft not to nick, scratch, or damage the camshaft lobes or bearing surfaces.
  10. While holding the intake camshaft firmly in place, remove the intake camshaft gear bolt.
  11. Remove the intake camshaft gear.
  12. While holding the exhaust camshaft firmly in place, remove the exhaust camshaft gear bolt.
  13. Remove the exhaust camshaft gear.

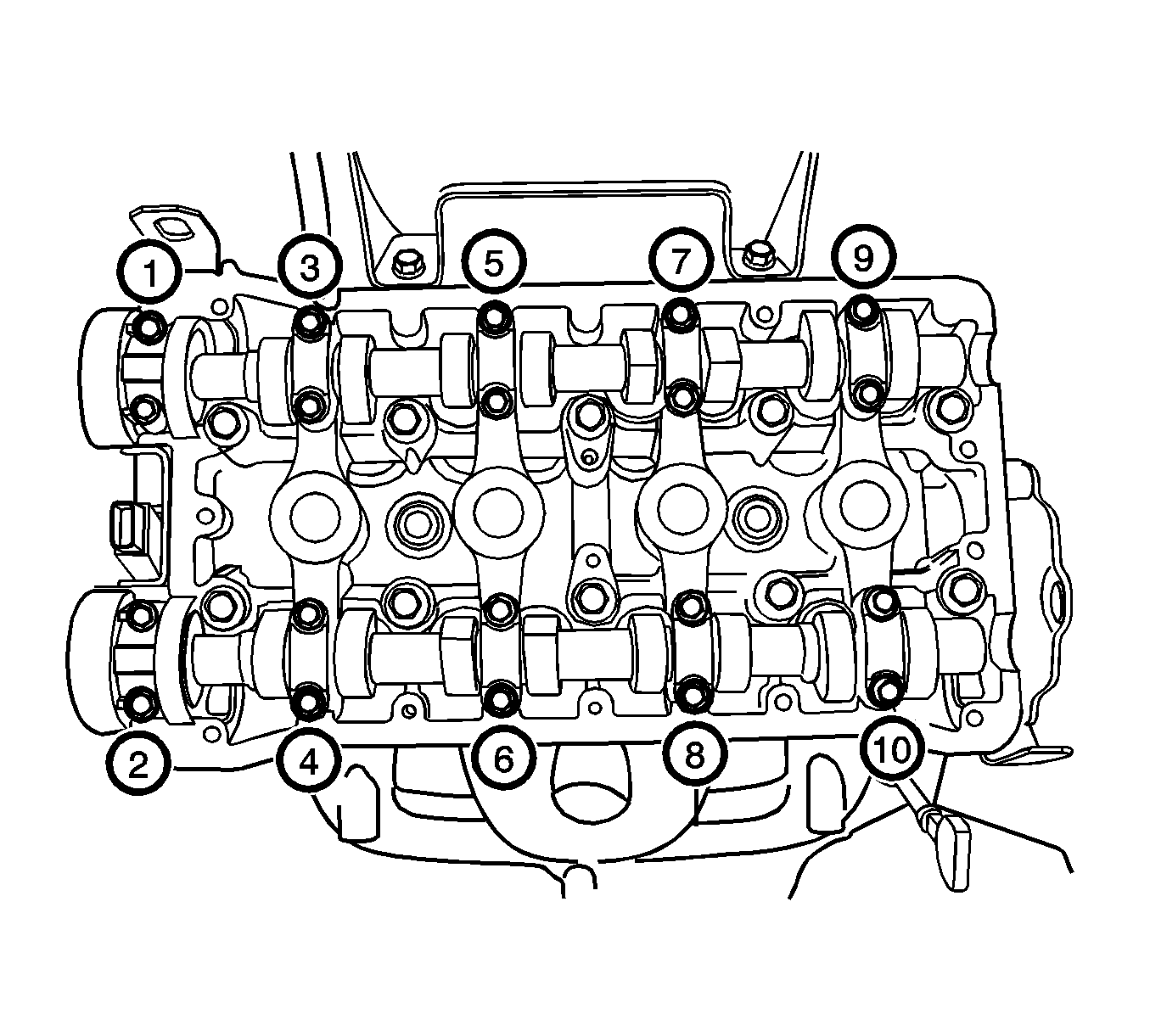

    14. Fig 6: Sequence Of Camshaft Caps And Bolts
    GM1372404Courtesy of GENERAL MOTORS CORP.
  14. Remove the camshaft cap bolts gradually and in the sequence shown for each camshaft cap.
    15. Fig 7: Camshaft Mounting
    GM1371902Courtesy of GENERAL MOTORS CORP.
  15. Remove the intake camshaft caps. Maintain the correct positions for installation.
  16. Remove the intake camshaft.
  17. Remove the exhaust camshaft caps. Maintain the correct positions for installation.
  18. Remove the exhaust camshaft.
