Installation Procedure

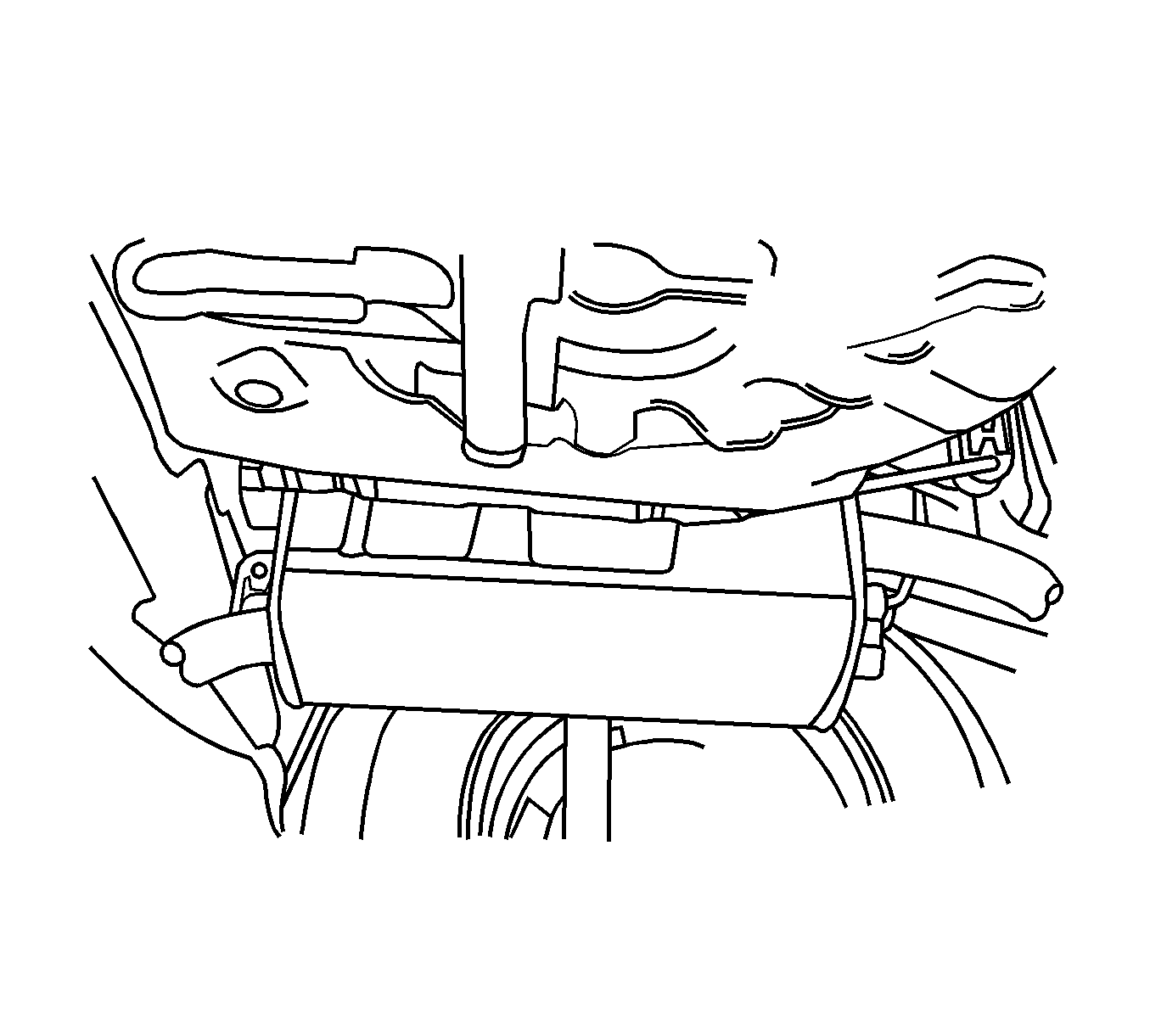

    Fig 1: View of Rear Muffler Assembly
    GM1241949Courtesy of GENERAL MOTORS CORP.
  1. Secure the rear muffler assembly to the rubber hangers on the tail pipe end.
    2. NOTE: Refer to Fastener Notice .
    Fig 2: View of Rear Muffler Pipe Flange
    GM1241946Courtesy of GENERAL MOTORS CORP.
  2. Secure the nuts and the gasket from the rear muffler pipe flange-to-front muffler pipe flange.

    Tighten:  Tighten the front muffler-to-rear muffler nuts to 30 N.m (22 lb ft).
