Installation Procedure

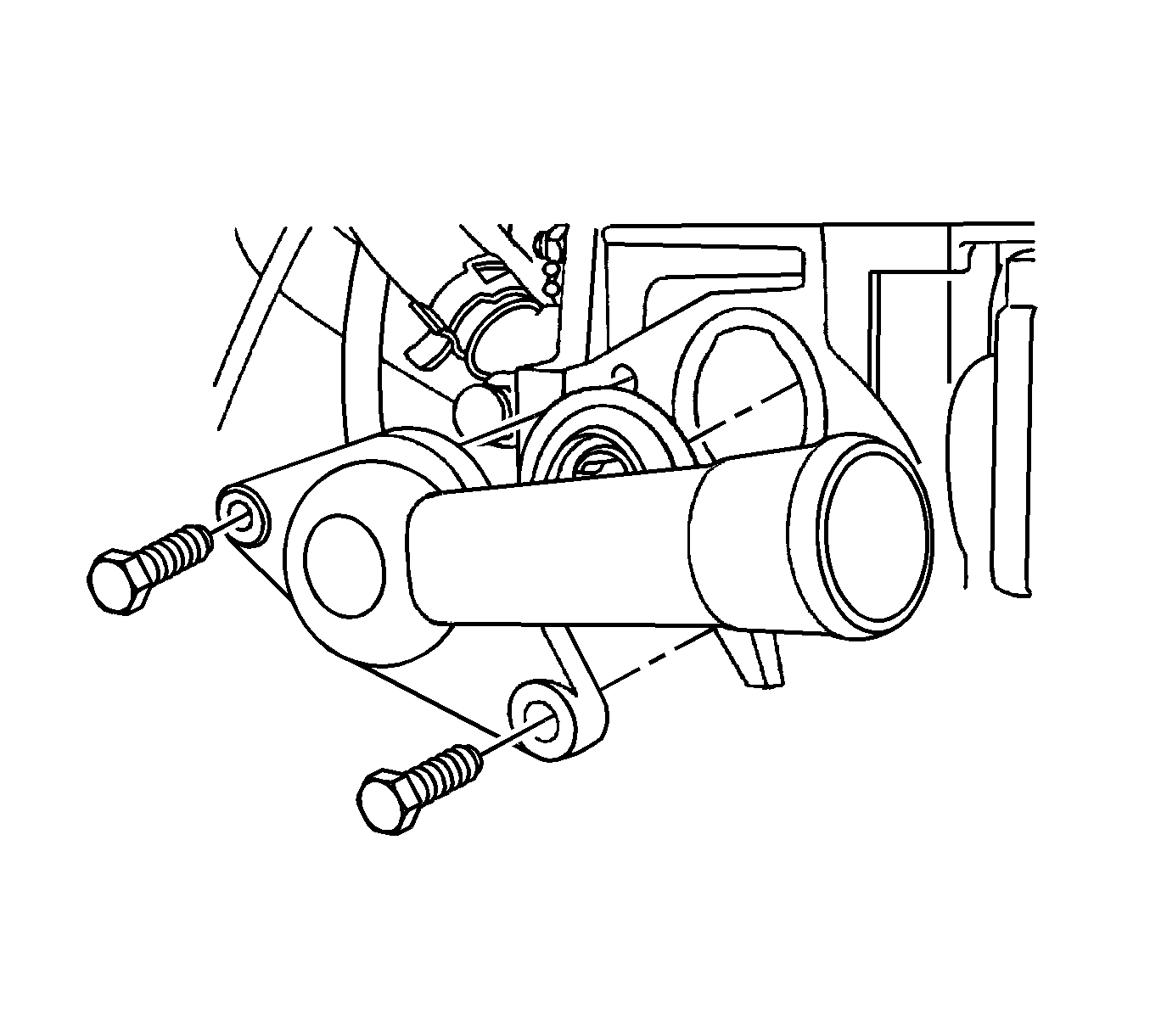

    Fig 1: View Of Thermostat Housing And Mounting Bolts
    GM1241812Courtesy of GENERAL MOTORS CORP.
  1. Install the thermostat into the cylinder head recess.
  2. Install the thermostat housing.
    3. NOTE: Refer to Fastener Notice .
  3. Secure the thermostat housing to the cylinder head with the mounting bolts.

    Tighten:  Tighten the thermostat housing mounting bolts to 20 N.m (15 lb ft).

  4. Install the timing belt rear hood. Refer to Timing Belt Replacement.
  5. Connect the upper radiator hose to the thermostat housing.
  6. Secure the upper radiator hose to the thermostat housing with a hose clamp.
  7. Refill the engine cooling system. Refer to Draining and Filling Cooling System .
