Intake Sensor Connector End View

Intake Sensor

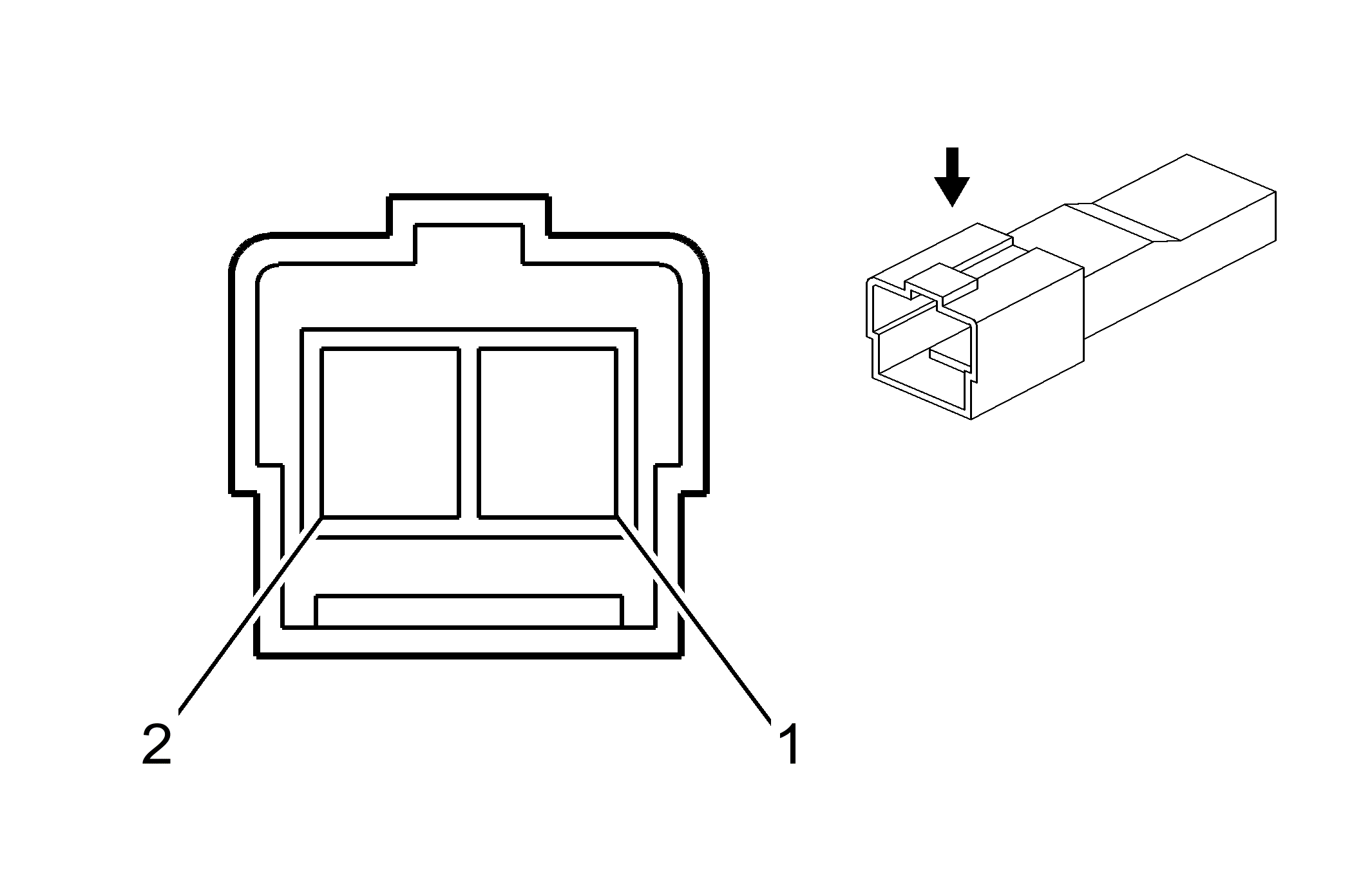

GM1468403Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 652630
  • 2-Way M
Pin Wire Color Circuit No. Function
1 BK/YE - Intake Sensor Signal
2 D-BU/WH - Low Reference
