Instrument Cluster Schematics (Notchback)

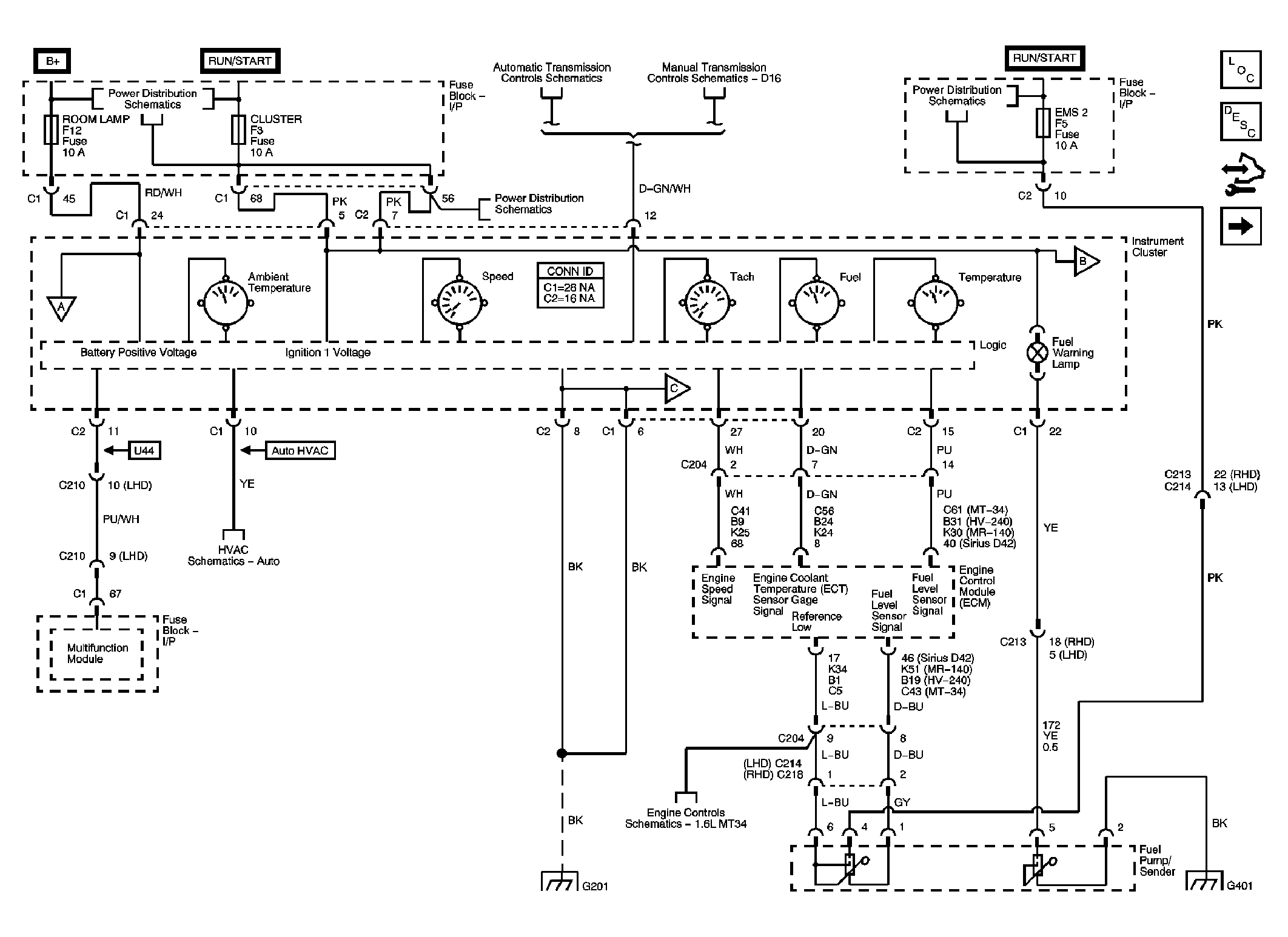

Fig 1: Instrument Cluster Power and Ground, Ambient Temperature, Engine Temperature, Fuel, Speed Gages

Courtesy of GENERAL MOTORS CORP.

Fig 2: Turn, High Beam, Fog Indicators, Instrument Cluster Illumination

Courtesy of GENERAL MOTORS CORP.

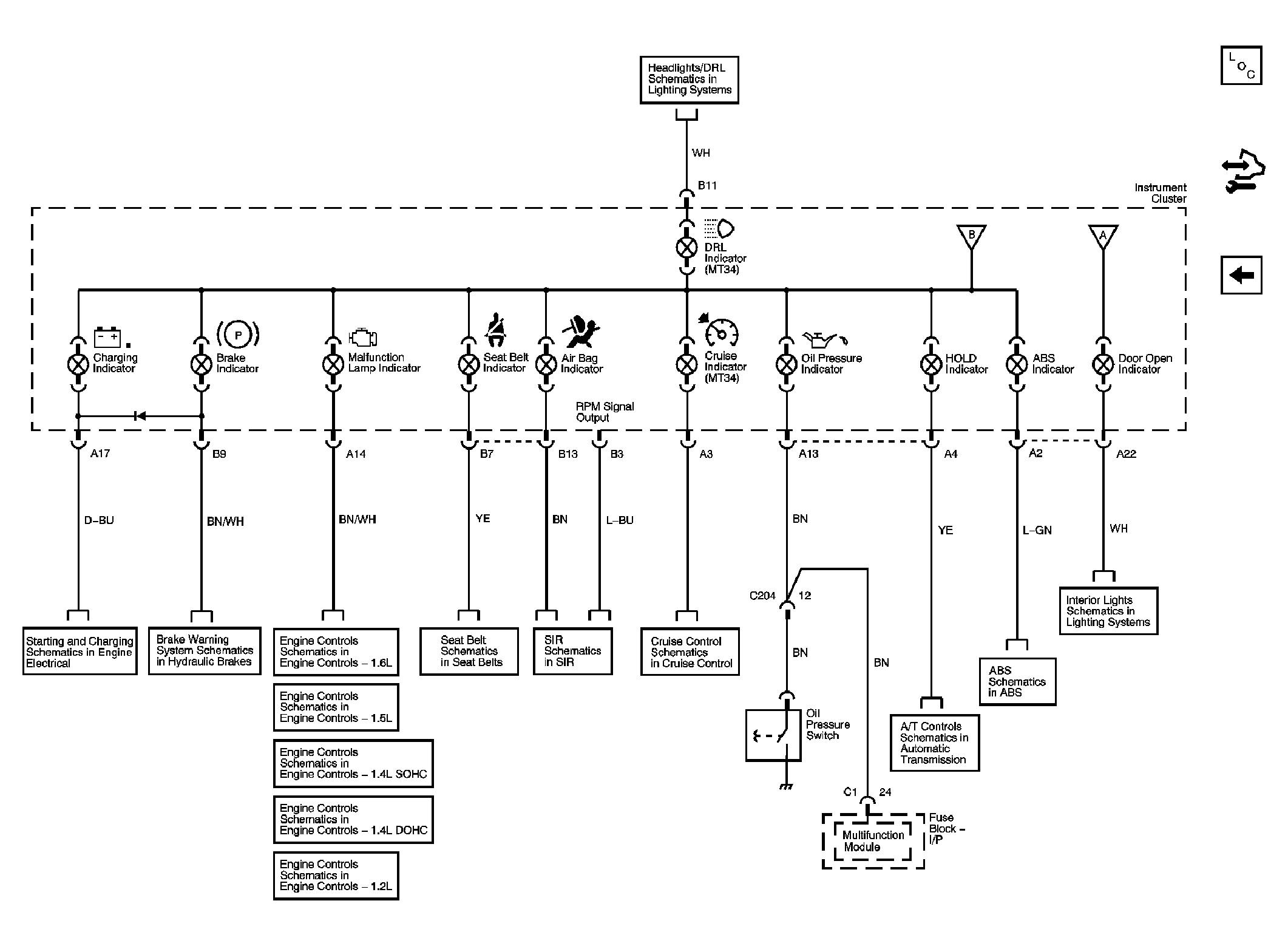

Fig 3: Charge, Brake, MIL, Seat Belt, Air Bag, Oil Pressure, HOLD, ABS, Door Open Indicators

Courtesy of GENERAL MOTORS CORP.
