Installation Procedure

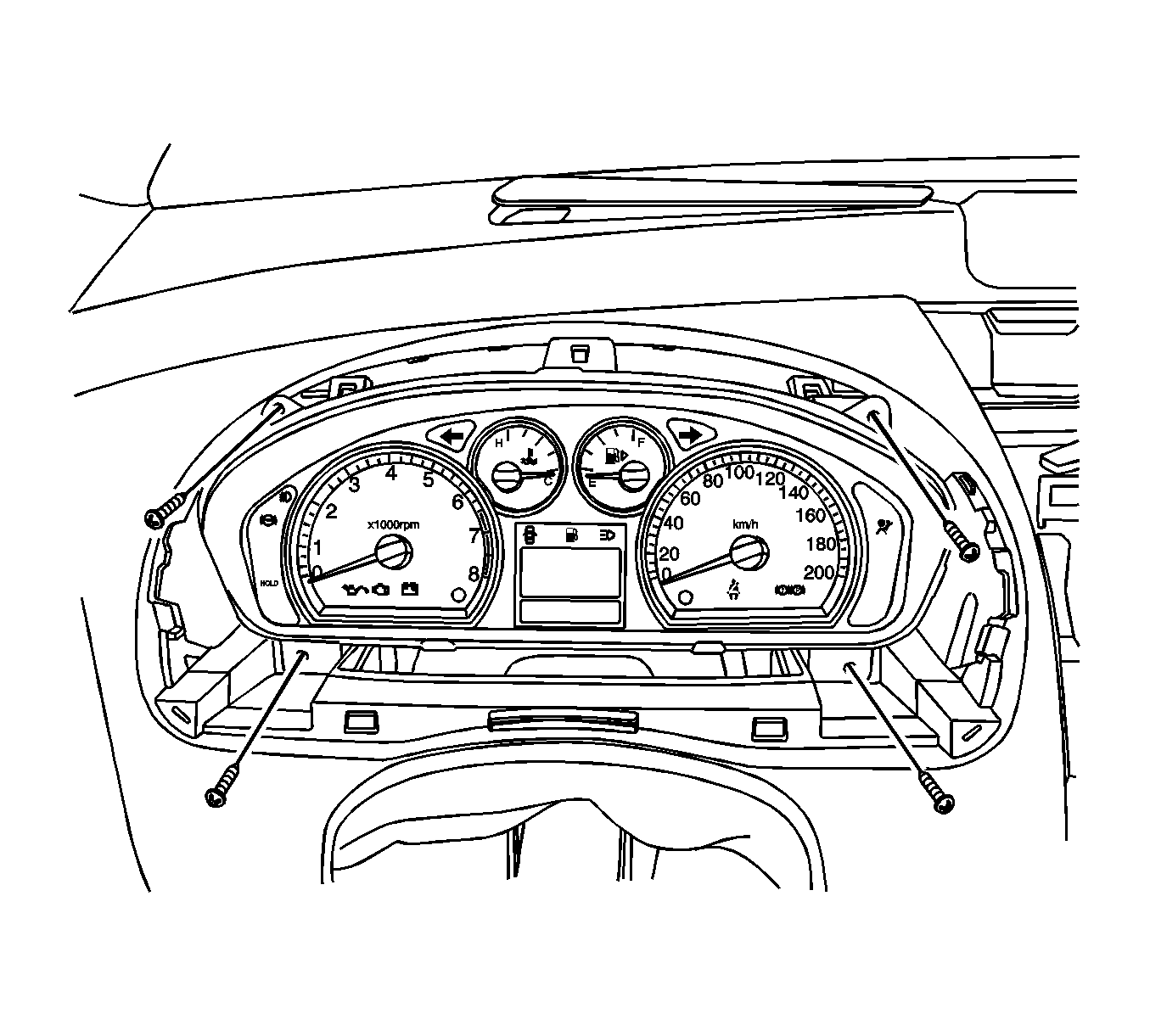

    Fig 1: Instrument Cluster
    GM1721598Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Connect the electrical connectors.
  2. Install the instrument cluster with the screws.

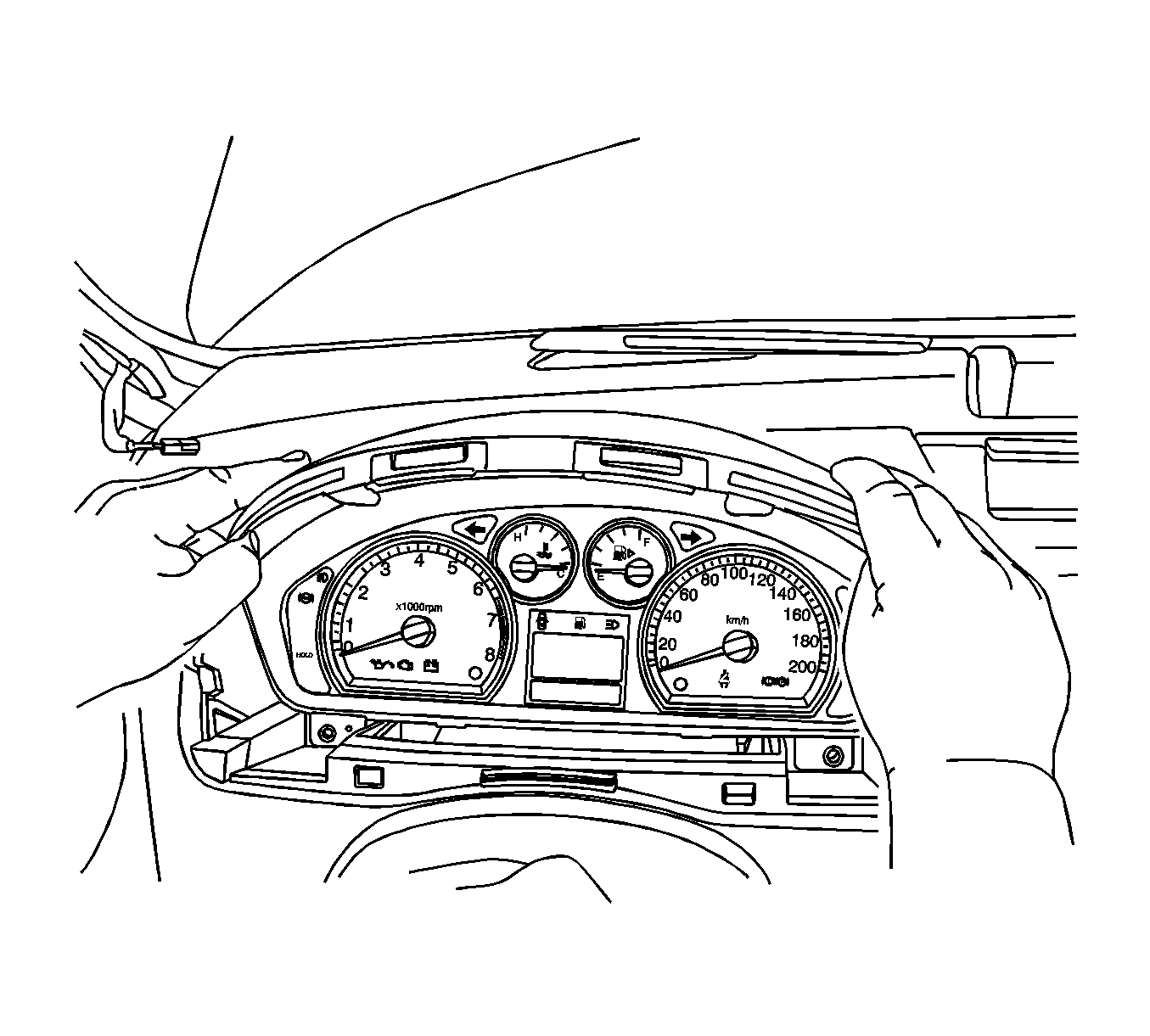

    3. Fig 2: Instrument Cluster Rear Trim Panel
    GM1721597Courtesy of GENERAL MOTORS CORP.
  3. Install the instrument cluster rear trim panel.

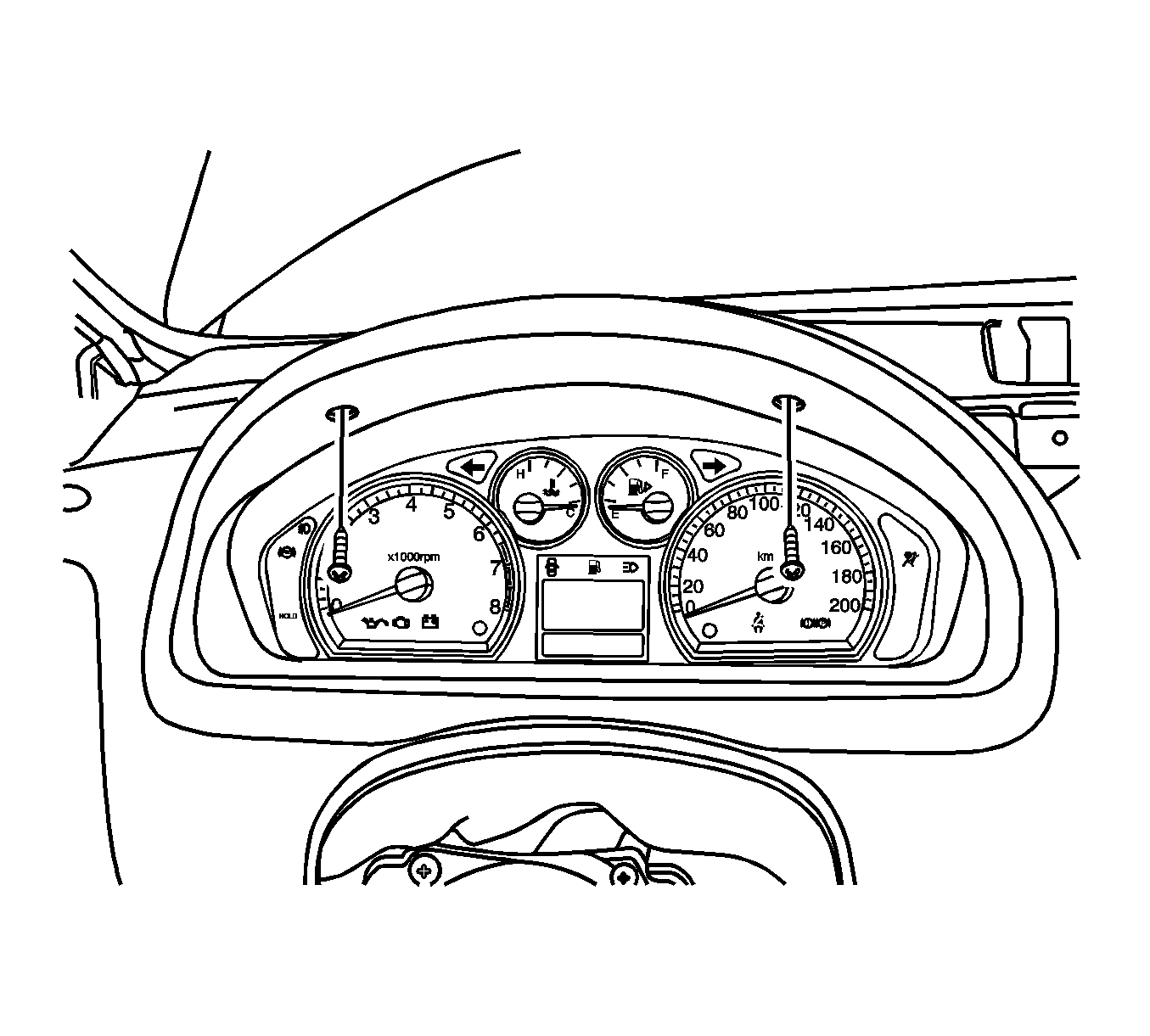

    4. Fig 3: Instrument Cluster Trim Panel
    GM1721595Courtesy of GENERAL MOTORS CORP.
  4. Install the instrument cluster trim panel.
  5. Connect the negative battery cable.
