Installation Procedure

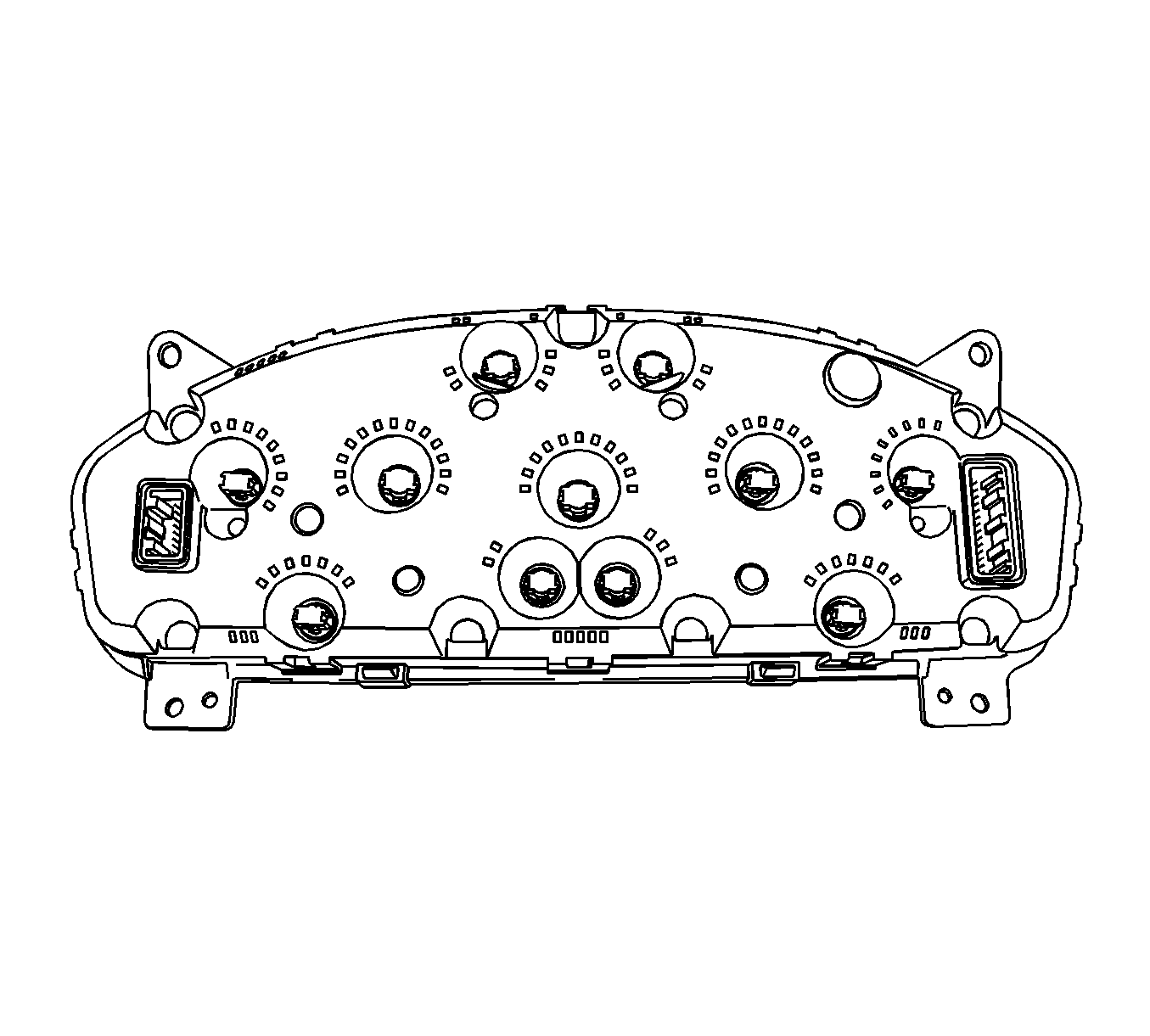

    Fig 1: View Of Back Of Instrument Cluster
    GM1721600Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the new bulb.
  2. Install the instrument cluster. Refer to Instrument Cluster Replacement .
  3. Connect the negative battery cable.
