Starting and Charging Schematics (Notchback)

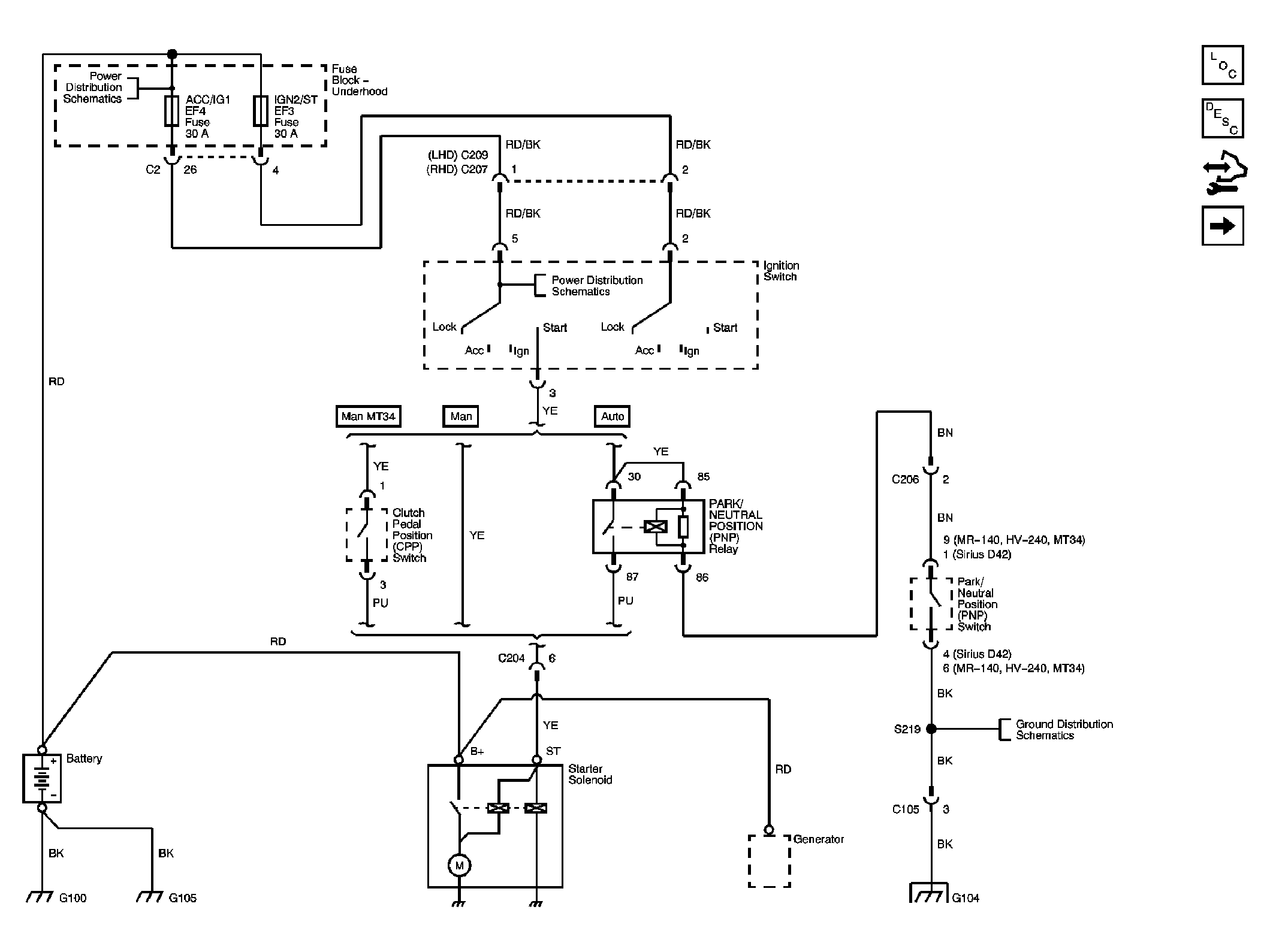

Fig 1: Starting System
GM1737632Courtesy of GENERAL MOTORS CORP.

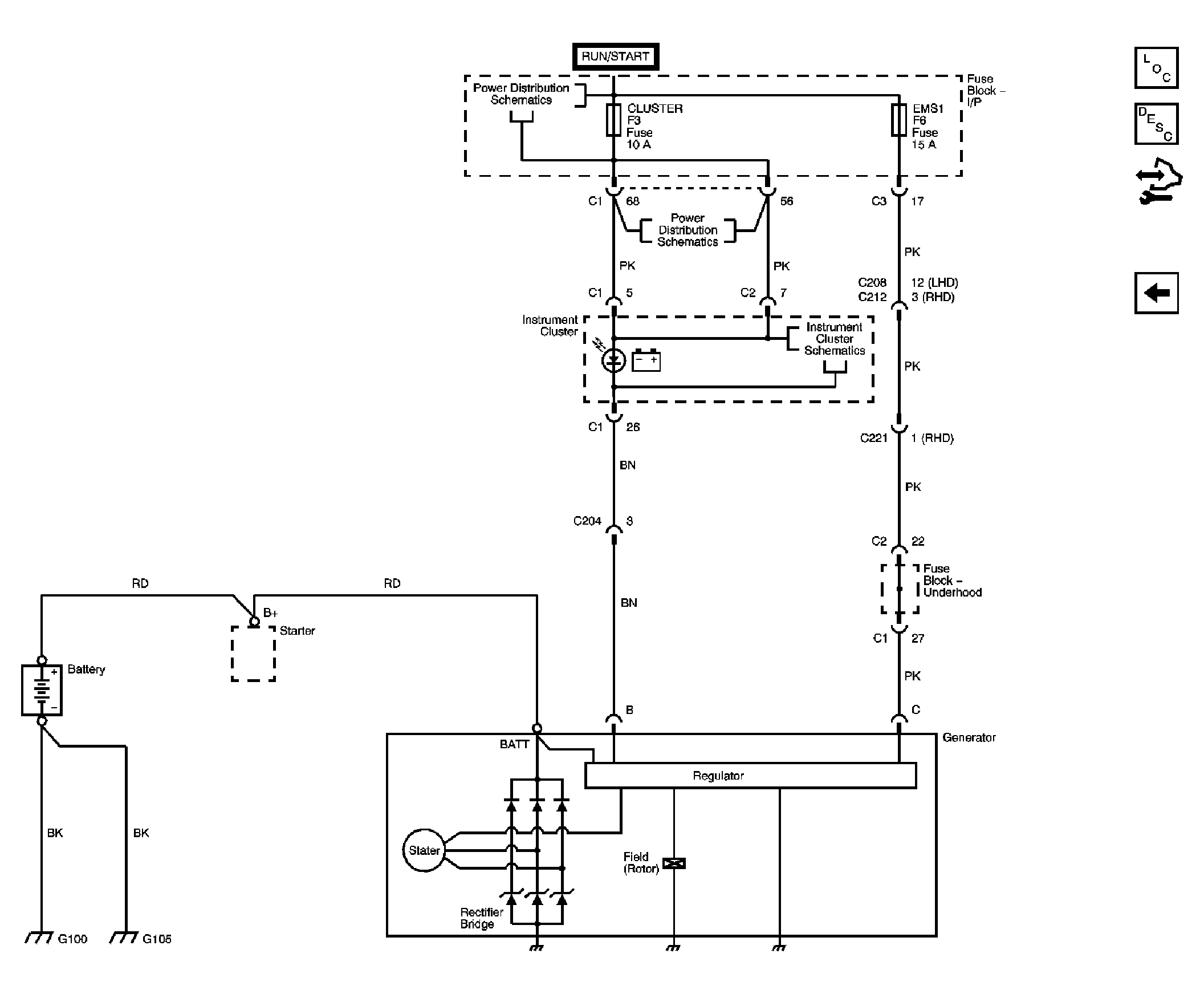

Fig 2: Charging System
GM1737634Courtesy of GENERAL MOTORS CORP.
