Starting and Charging Schematics (Hatchback)

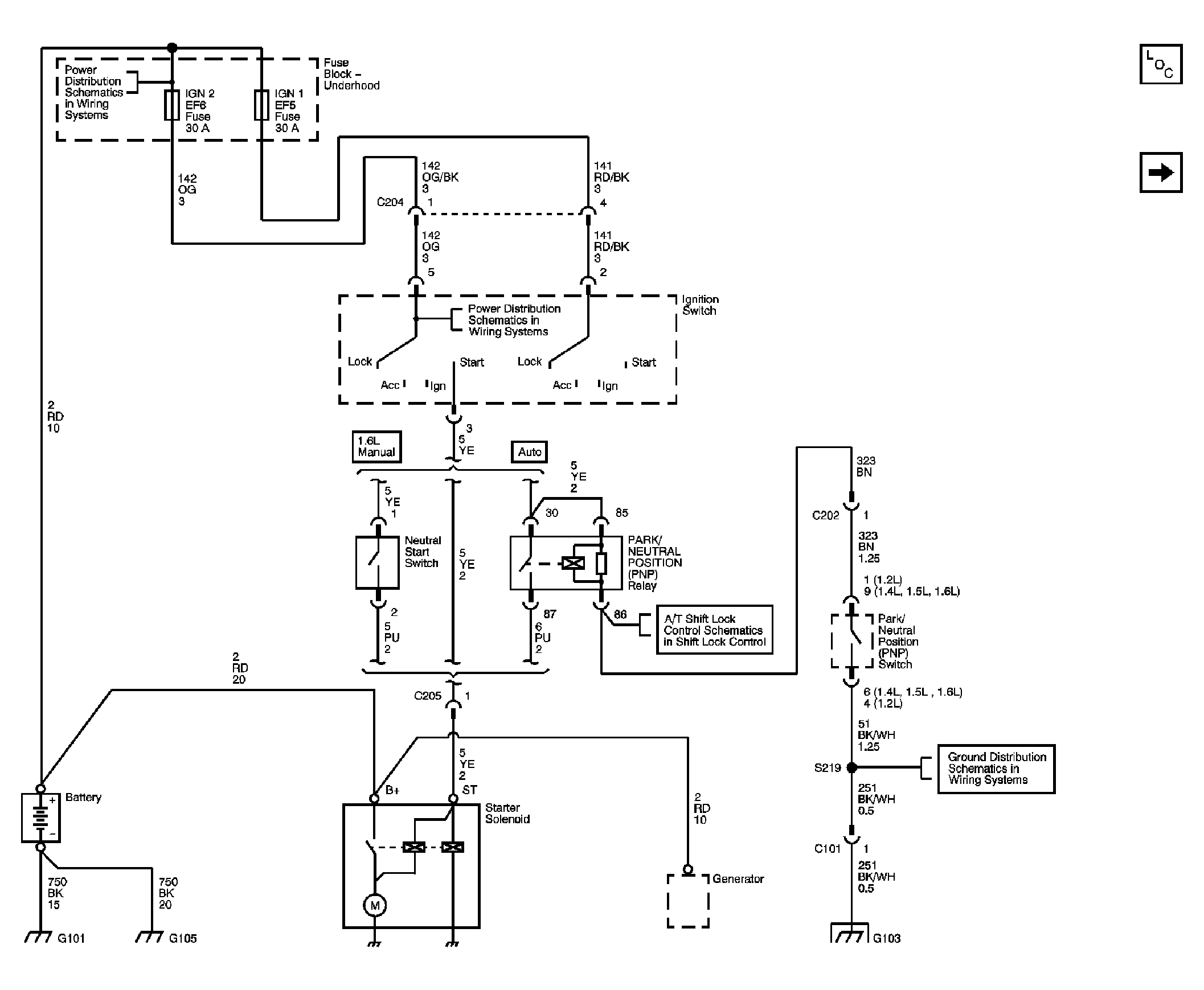

Fig 1: Starting System
GM1679827Courtesy of GENERAL MOTORS CORP.

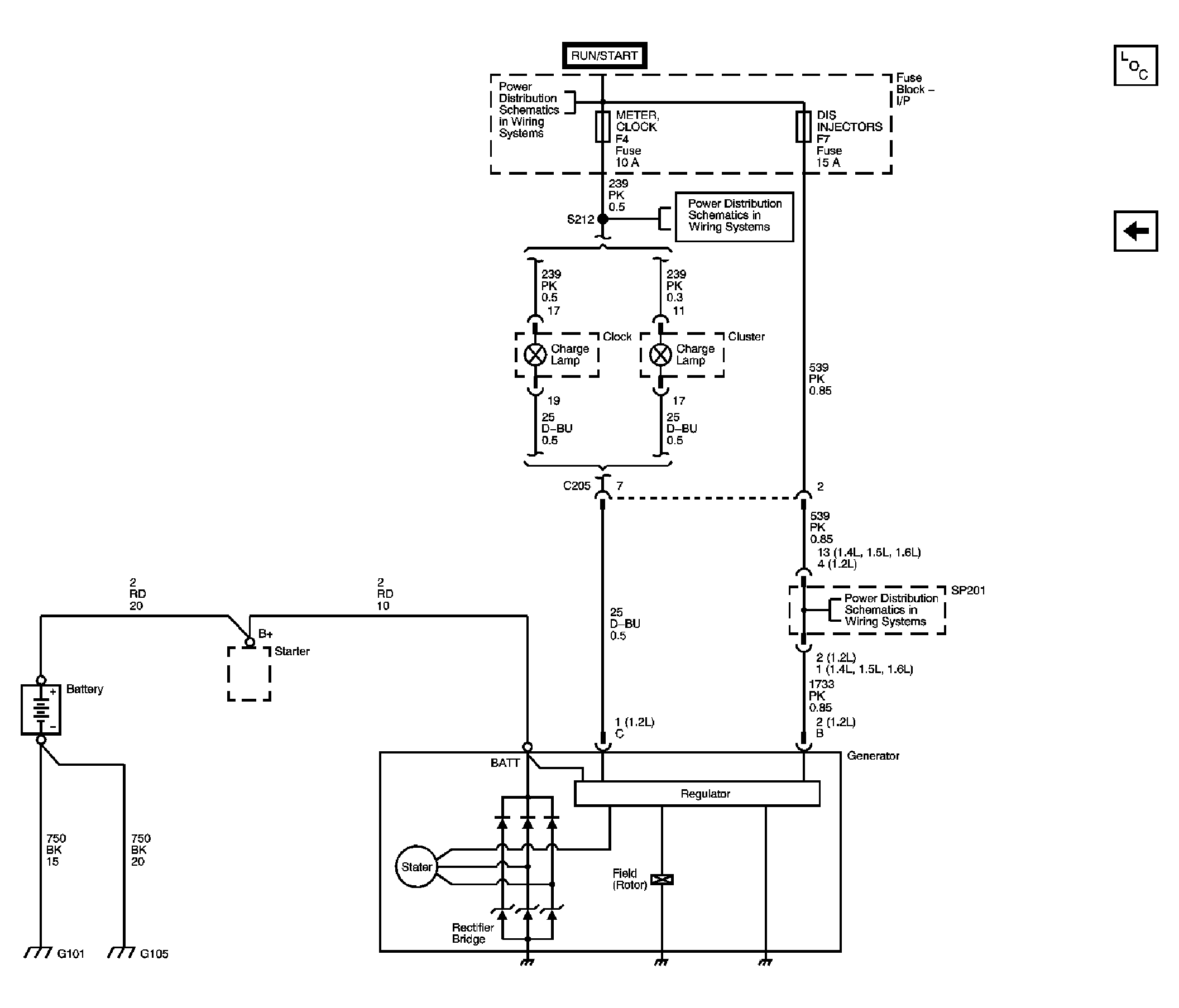

Fig 2: Charging System
GM1679830Courtesy of GENERAL MOTORS CORP.
