Removal Procedure

Follow the steps below in order to remove terminals from Micro 64 connectors.

Fig 1: Identifying Wire Dress Cover Lever Lock
Courtesy of GENERAL MOTORS CORP.

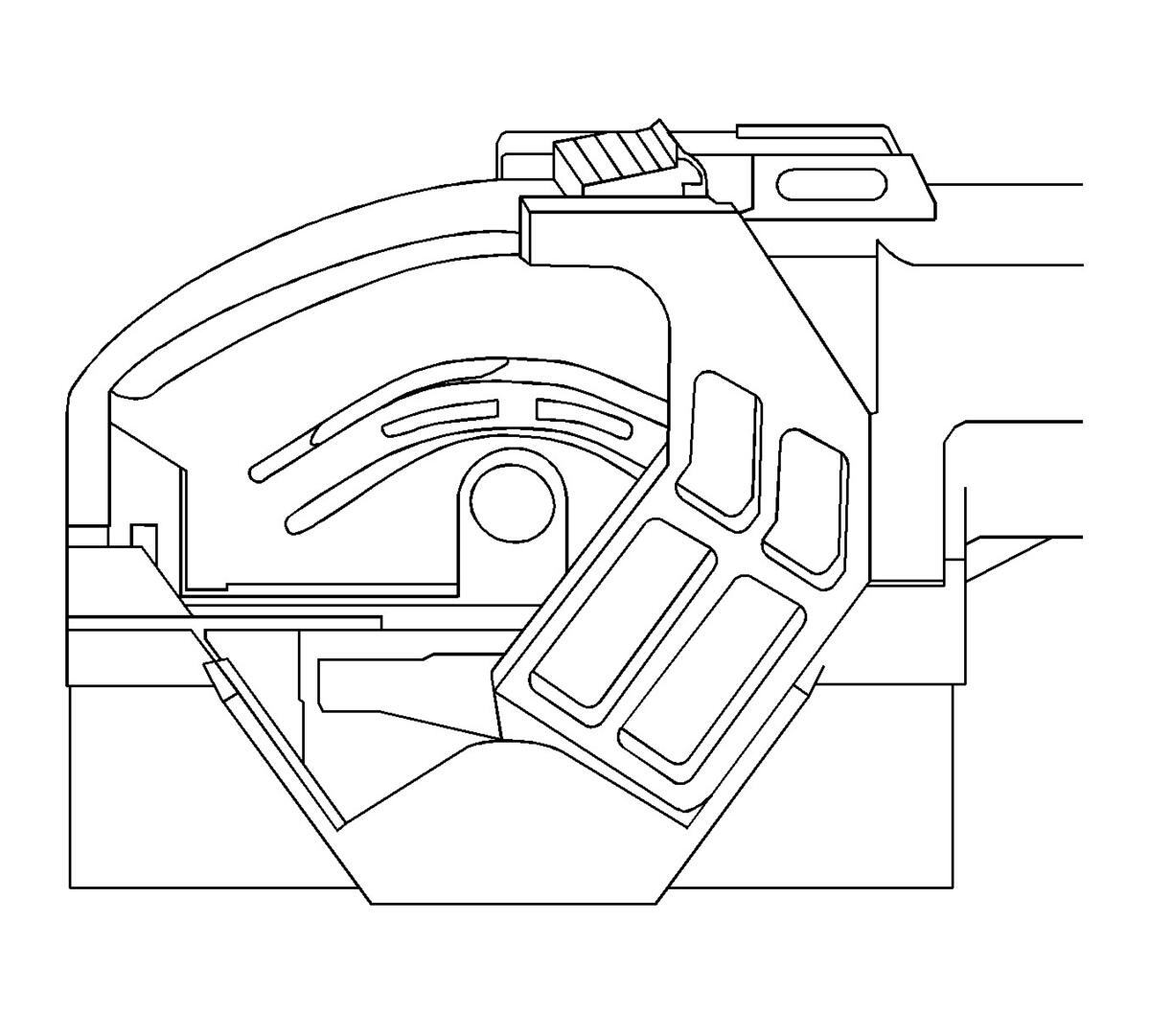

Fig 2: View Of Typical Micro 64 Connector
Courtesy of GENERAL MOTORS CORP.

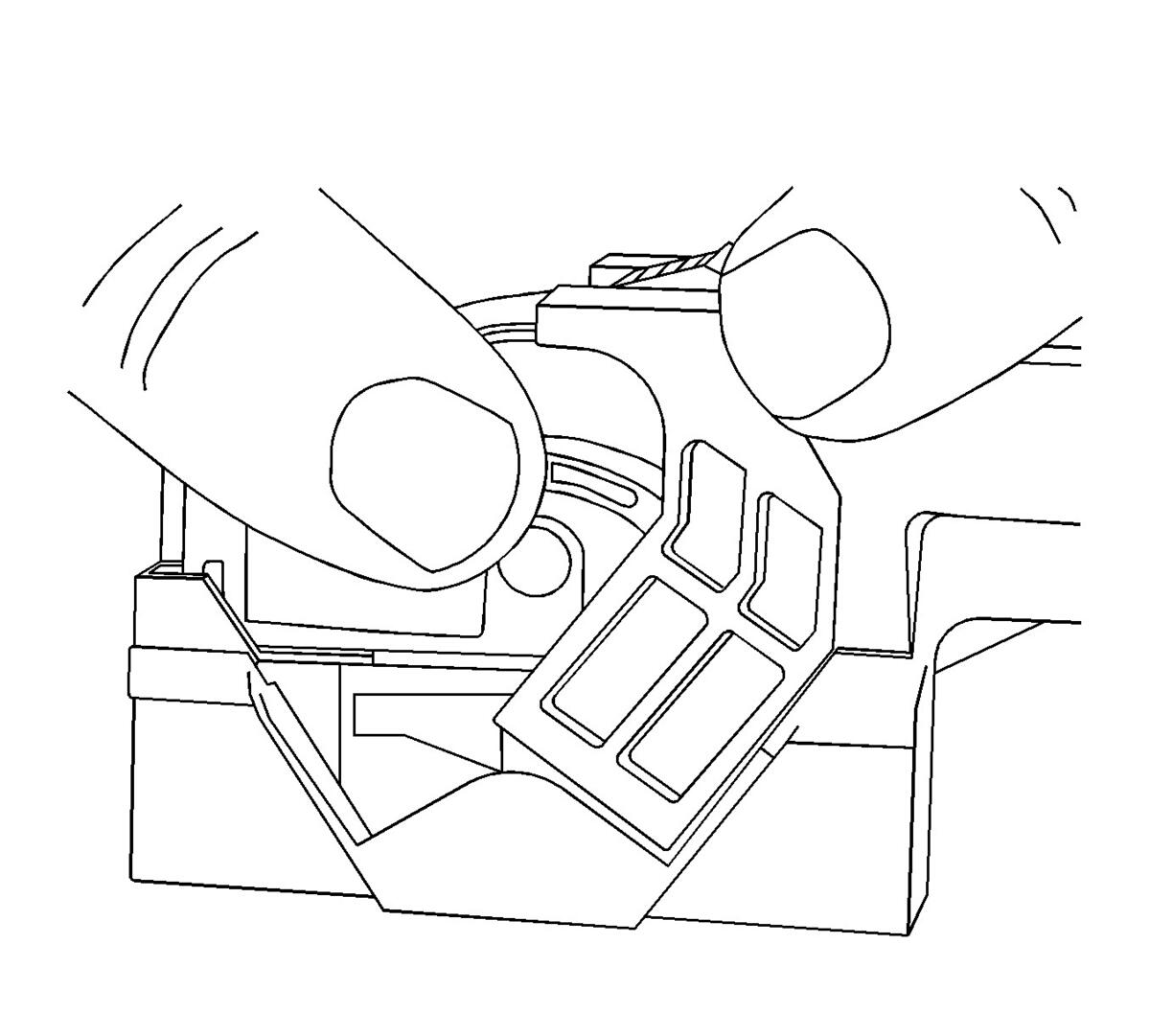

Fig 3: Depressing Lock And Pulling Lever
Courtesy of GENERAL MOTORS CORP.

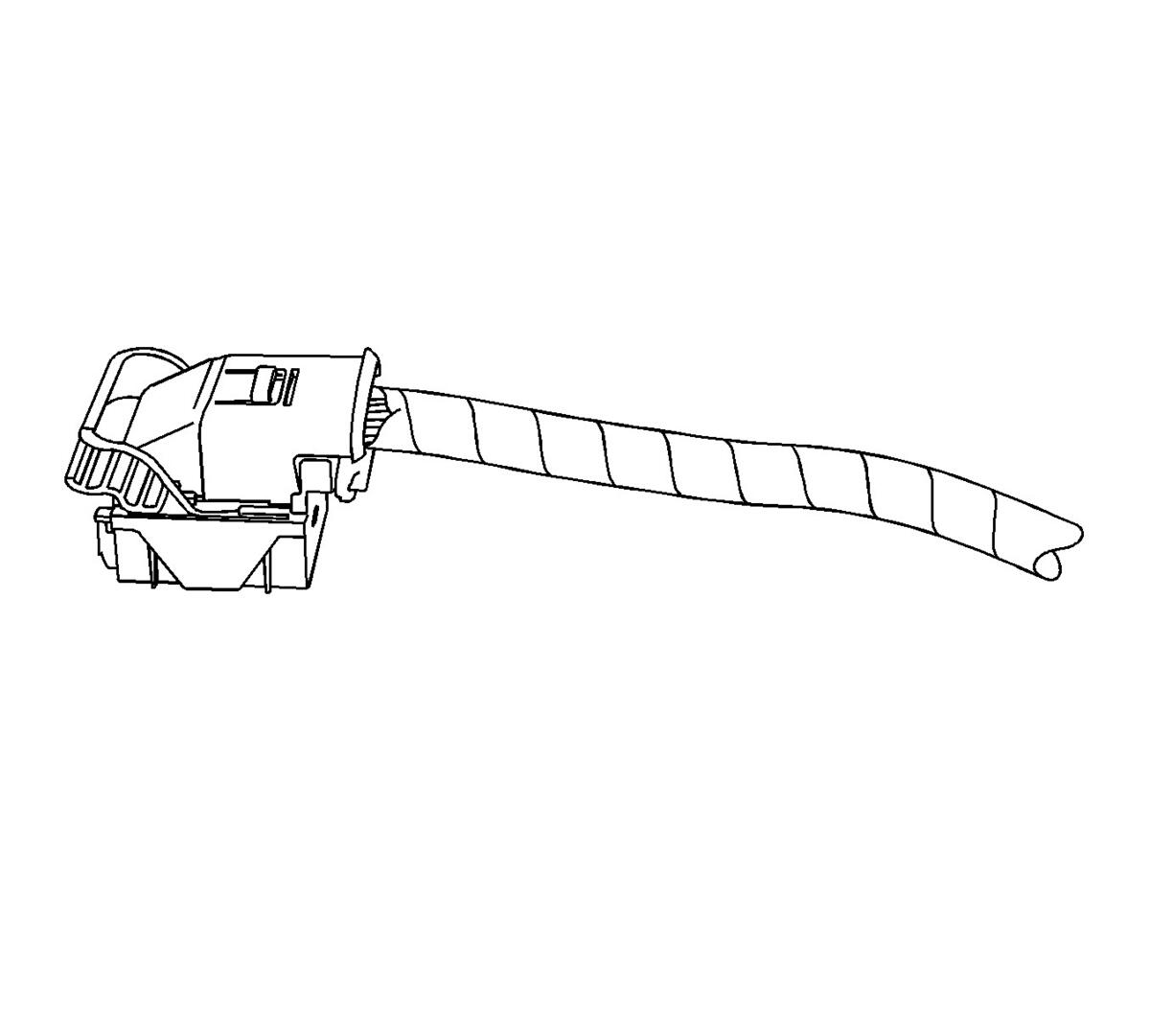

Fig 4: View Of Connector When Released From Component
Courtesy of GENERAL MOTORS CORP.

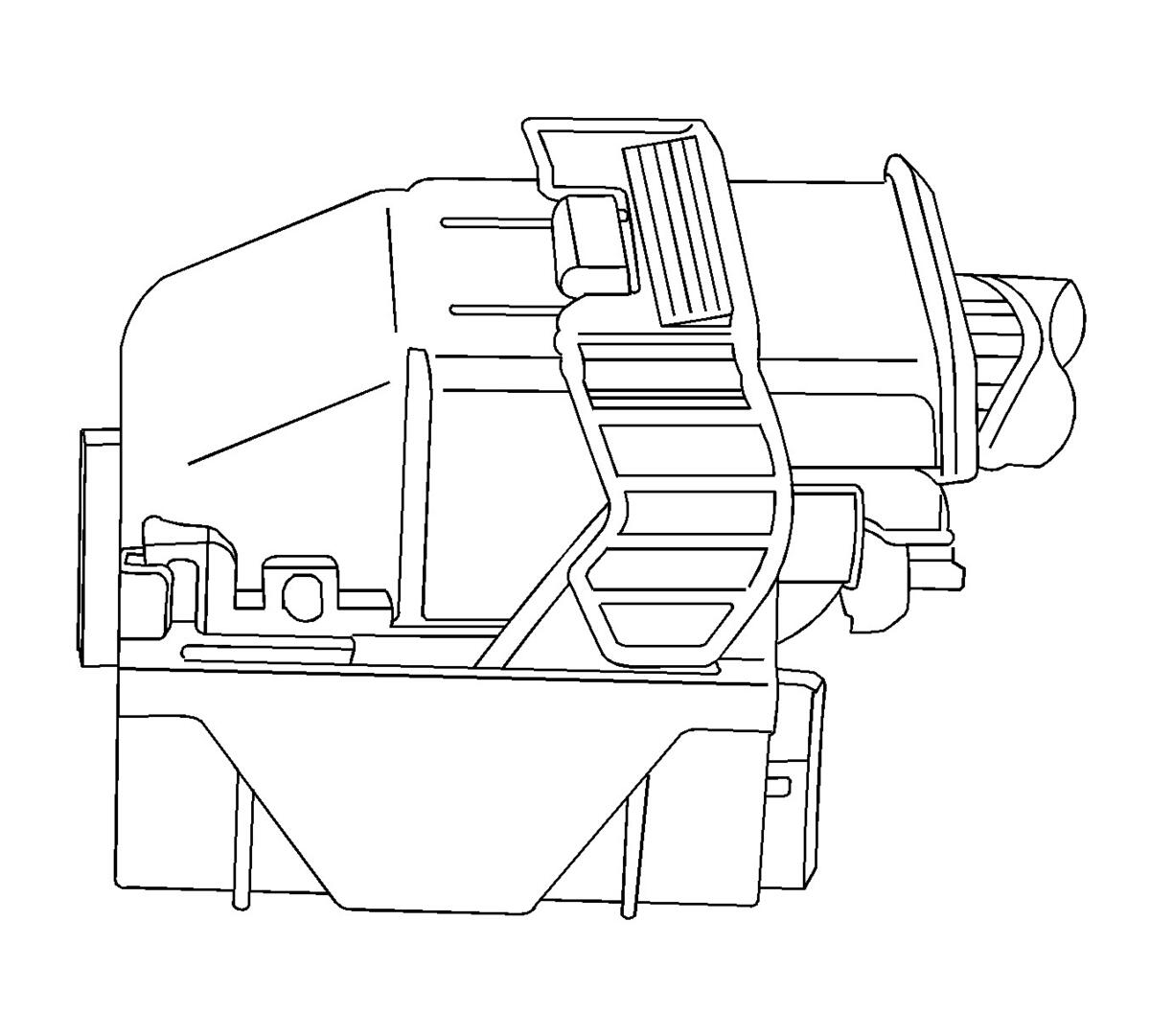

Fig 5: View Of Another Type Of Micro 64 Connector
Courtesy of GENERAL MOTORS CORP.

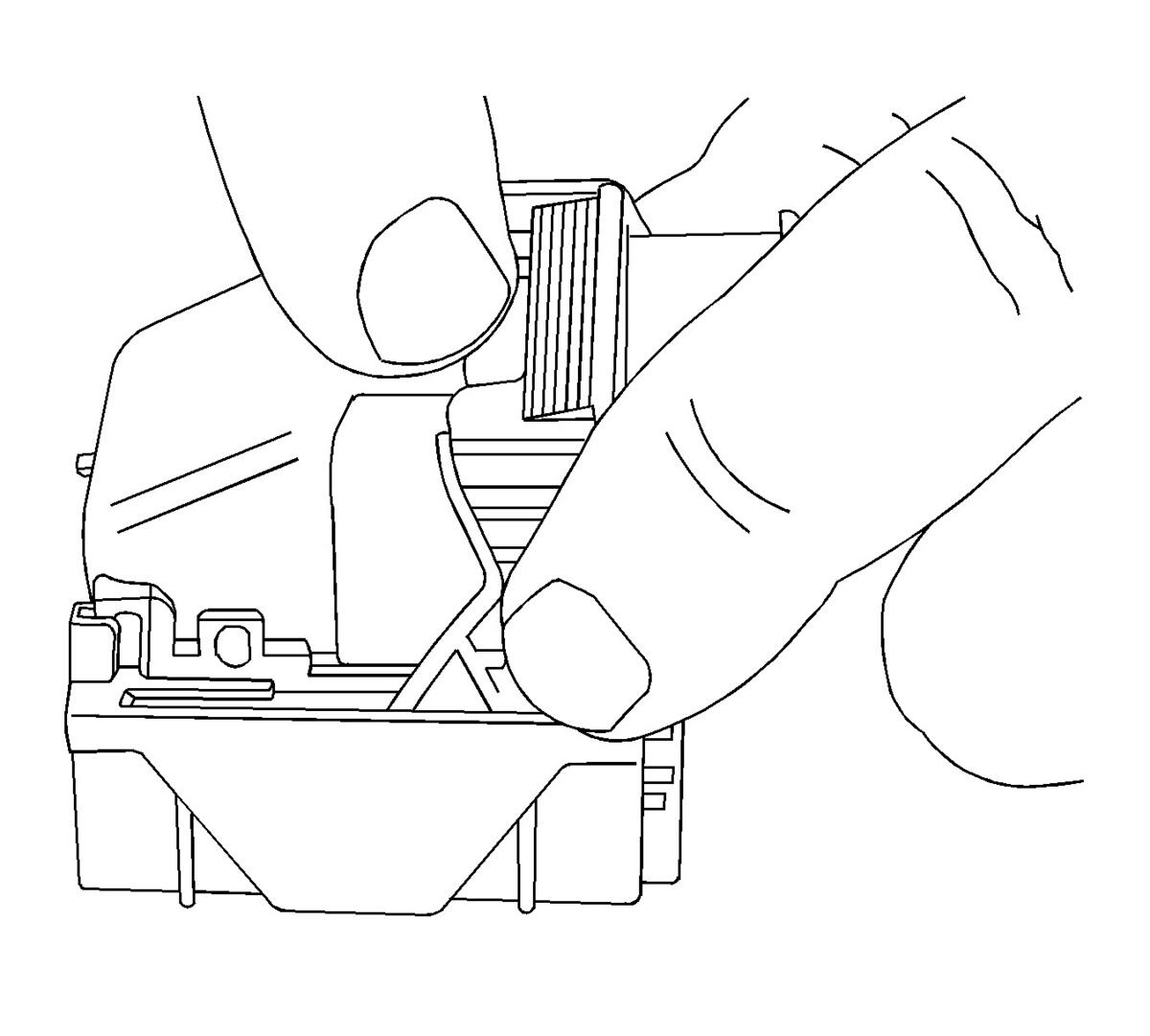

Fig 6: Locating Locks On Both Sides Of Wiredress Cover
Courtesy of GENERAL MOTORS CORP.

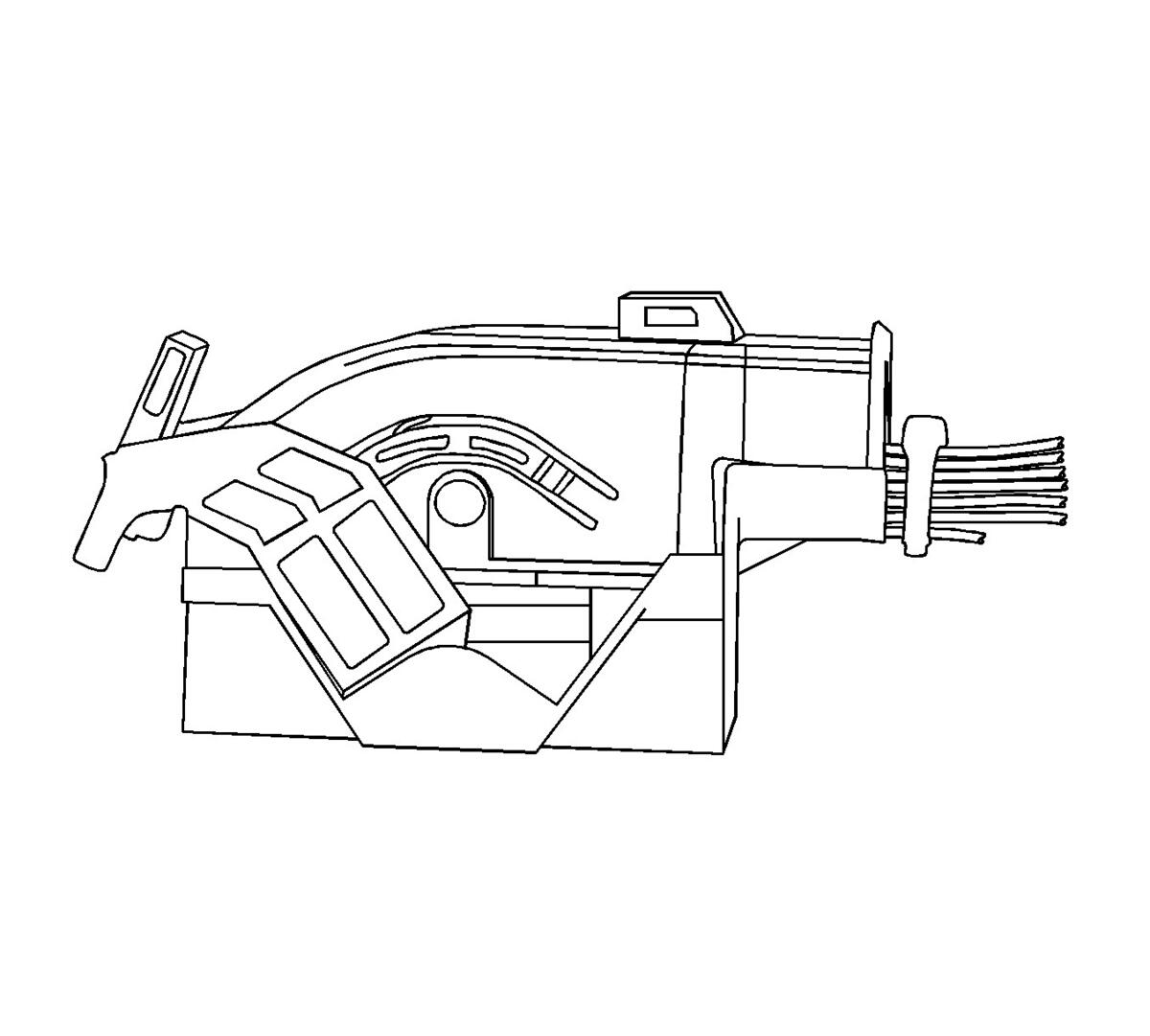

Fig 7: View Of Connector When Released From Component
Courtesy of GENERAL MOTORS CORP.
1. Locate the lever lock on the wire dress cover. While depressing the lock, pull the lever over and past the lock. The lever lock may be located on the top or sides of the wire dress cover.

   View of a typical Micro .64 connector.

   Depress the lock and pull the lever over and past the lock.

   View of the connector when released from the component.

   View of another type of Micro .64 connector.

   Depress the locks that are located on both sides of the wiredress cover and pull the lever over and past the locks.

   View of the connector when released from the component.

2. Disconnect the connector from the component.
Fig 8: Loosening Dress Cover Locking Tabs
Courtesy of GENERAL MOTORS CORP.
3. Locate the dress cover locking tabs at the front of the connector. Using a small flat-blade tool push down on one of the locking tabs and pull the cover up until the dress cover releases. Repeat this procedure for the other locking tab.
4. Once the front 2 locks are unlocked, lift the front of the dress cover and pull it forward.
Fig 9: Removing TPA By Inserting Small Flat Blade Into Small Slot
Courtesy of GENERAL MOTORS CORP.
IMPORTANT: Always use care when removing a terminal position assurance (TPA) in order to avoid damaging it.
5. Remove the TPA by inserting a small flat-blade tool into the small slot on the TPA and pushing down until the TPA releases. Gently pry the TPA out of the connector.
Fig 10: Identifying Terminal Release Tool
Courtesy of GENERAL MOTORS CORP.
IMPORTANT: Be careful not to angle or rock the J 38125-21 tool when inserting it into the connector or the tool may break.
6. Insert the J 38125-21 (GM P/N 15381651-2) tool into the round canal between the terminals cavities at the front of the connector. See the release tool cross reference in the Reference Guide of the J-38125  to ensure that the correct release tool is used.
Fig 11: Removing Wire From Back Of Connector
Courtesy of GENERAL MOTORS CORP.
7. While holding the removal tool in place, gently pull the wire out of the back of the connector. Always remember never use force when pulling a terminal out of a connector.
