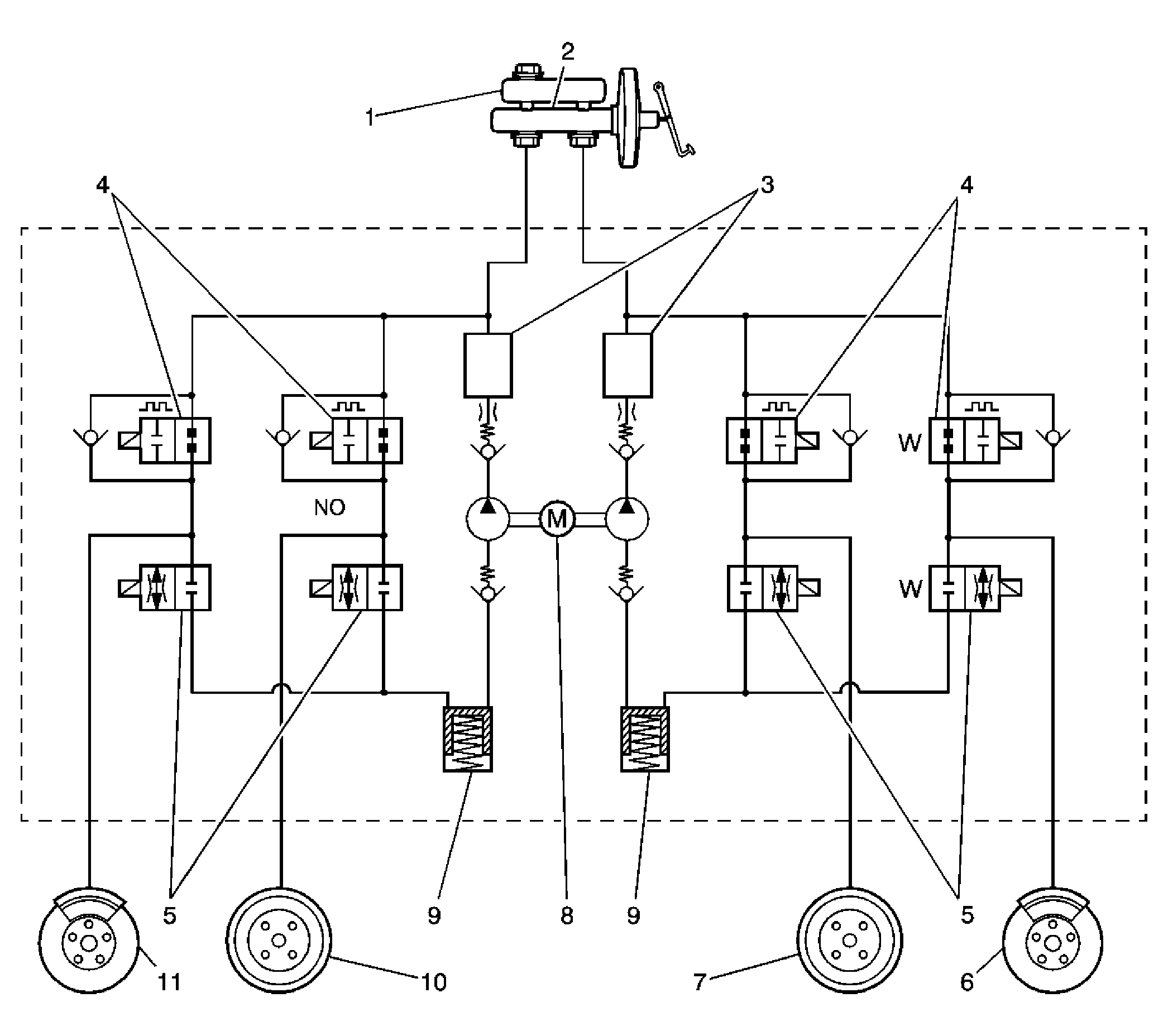

Antilock Braking Mode - Release
| Callout | Component Name |
|---|---|
| 1 | Reservoir |
| 2 | Master Cylinder |
| 3 | High Pressure Accumulator |
| 4 | Normally Open Valve |
| 5 | Normally Closed Valve |
| 6 | Left Front |
| 7 | Right Rear |
| 8 | Pump |
| 9 | Low Pressure Accumulator |
| 10 | Left Rear |
| 11 | Right Front |
If during the pressure hold mode the electronic brake control module (EBCM) still senses wheel slip, the EBCM will decrease the pressure to the affected wheels. The inlet valve is left closed and the outlet valve is opened. The excess fluid/pressure is temporarily stored into an accumulator within the brake pressure modulator valve (BPMV), until the pump can return the fluid to the master cylinder reservoir.
