Removal Procedure

    Fig 1: View of Parking Brake Console Hood-To-Tunnel Bracket
    GM1252049Courtesy of GENERAL MOTORS CORP.
  1. Release the parking brake.
  2. Move the front seats forward.
  3. Pry off the plastic caps that cover the access holes to the parking brake console hood-to-tunnel bracket screws.
  4. Remove the screws that secure the parking brake console hood-to-tunnel brackets. Raise the console hood.
    5. Fig 2: View of Parking Brake Adjustment Nut

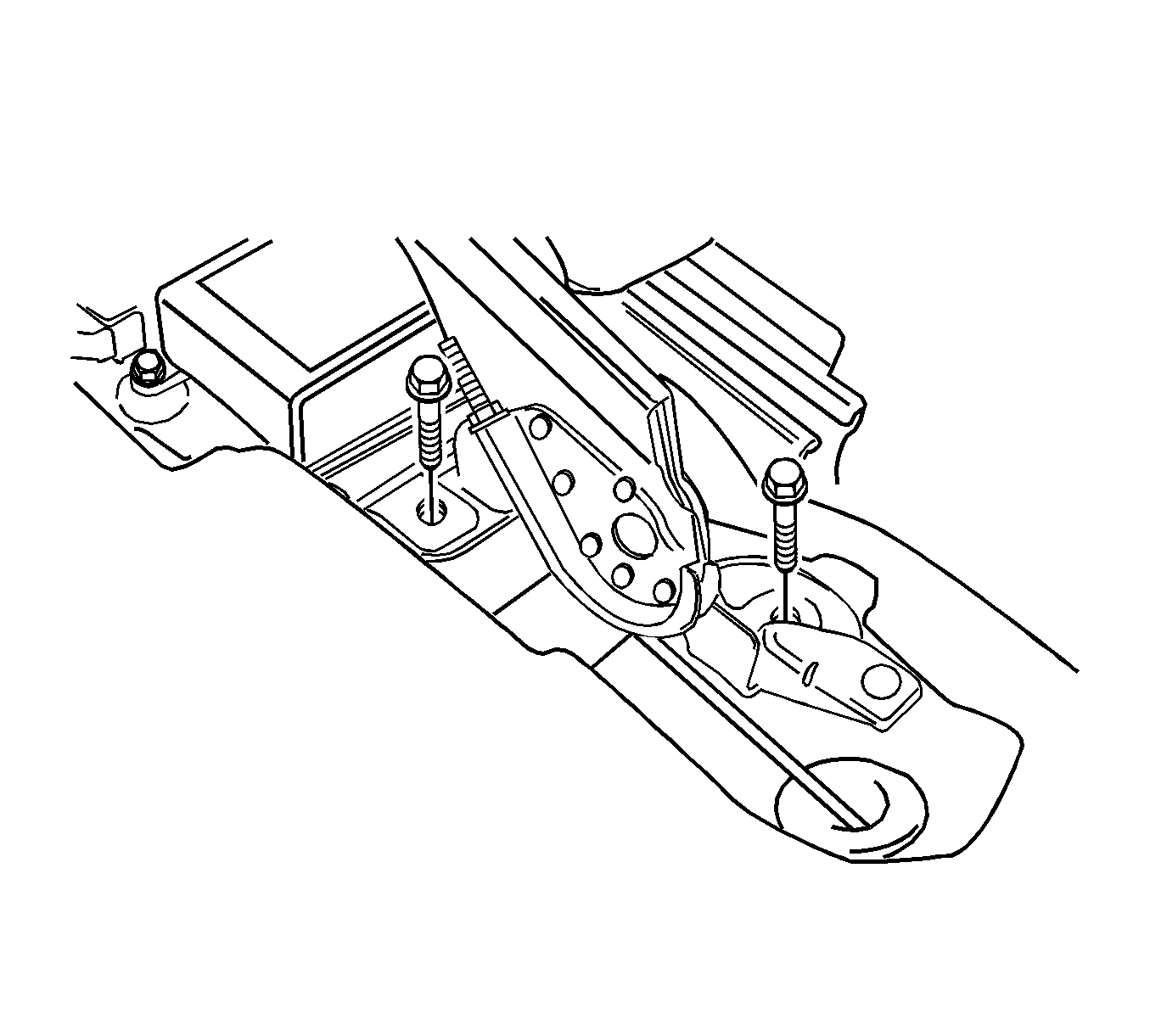

    GM1252059Courtesy of GENERAL MOTORS CORP.
  5. Measure the thread length from the end of the pushrod to the adjustment nut before removing the adjustment nut.
  6. Remove the complete parking brake lever assembly and the cable from the assembly by unfastening the parking brake lever-to-vehicle underbody bolts and removing the adjustment nut.
  7. Disconnect the parking brake warning lamp switch connector.
    8. IMPORTANT: The parking brake switch should be replaced if BRAKE warning light in the instrument panel cluster does not glow when the parking brake is applied with the ignition switch ON.
  8. Remove the parking brake switch, which is attached to the parking brake lever assembly by a small screw, if necessary.
  9. Inspect the parking brake lever cable and the lever grip for damage, and replace if necessary.
