Moveable Window Schematics (Notchback)

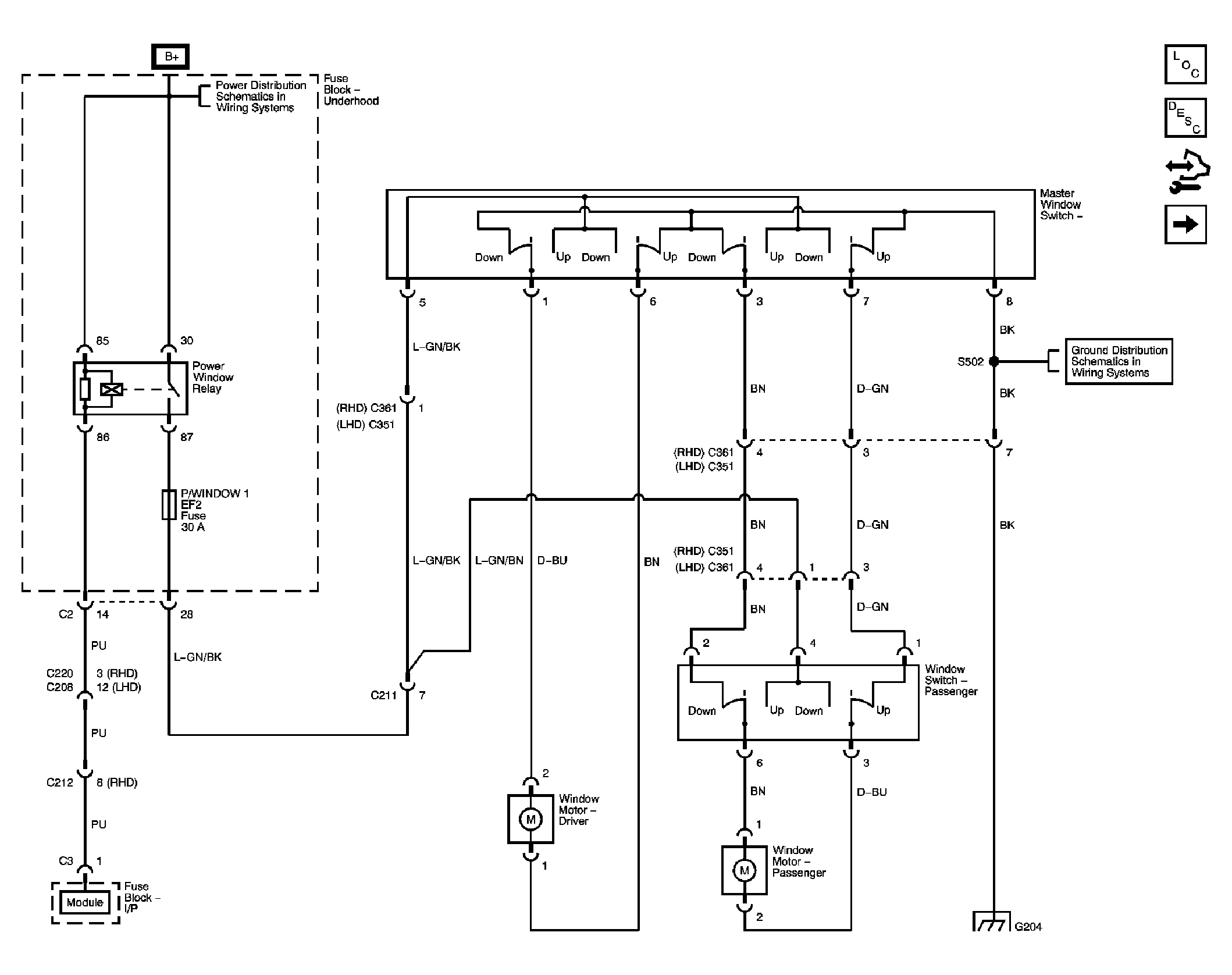

Fig 1: Front Power Windows
GM1736667Courtesy of GENERAL MOTORS CORP.

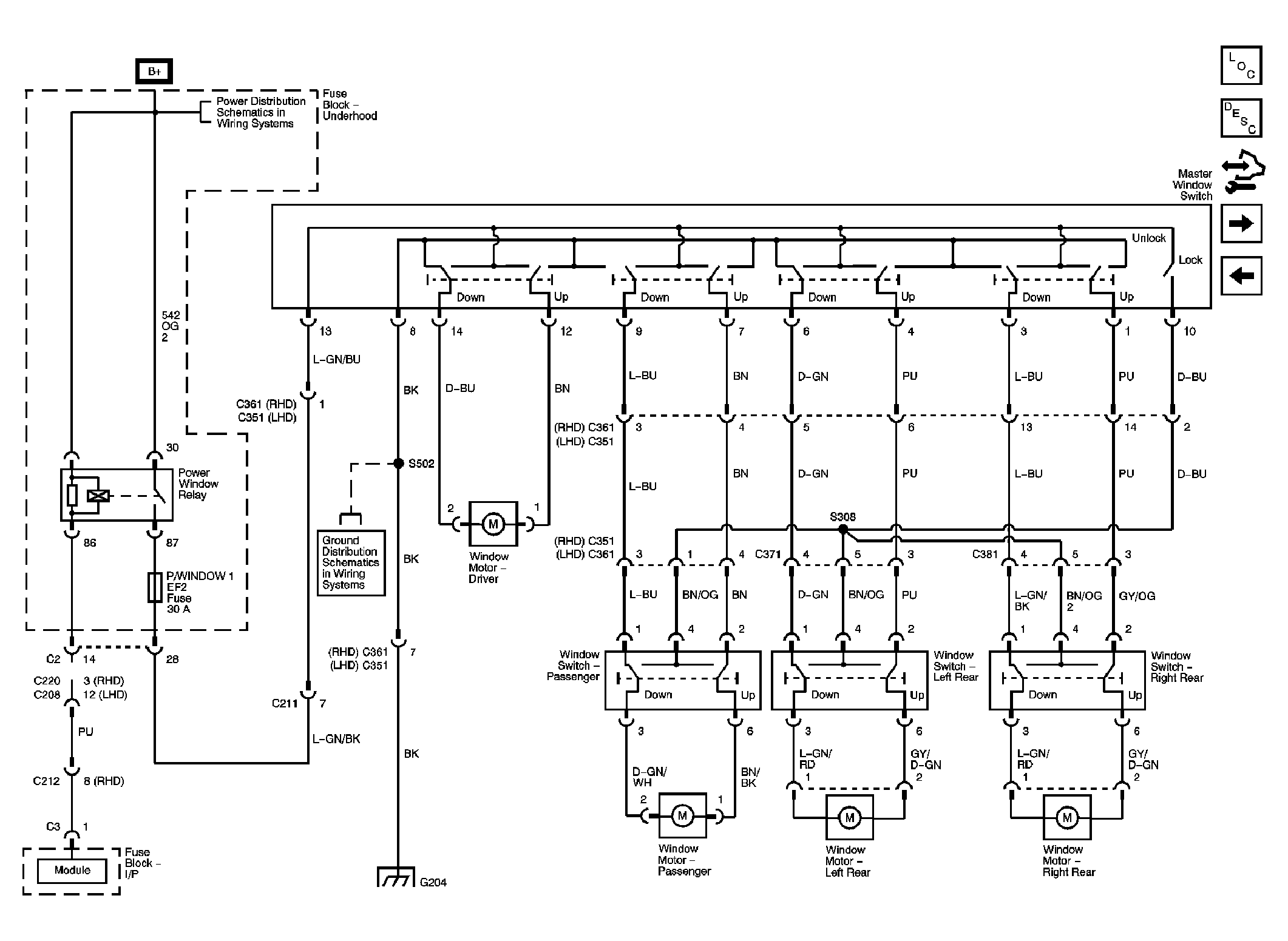

Fig 2: Front and Rear Power Windows
GM1736668Courtesy of GENERAL MOTORS CORP.

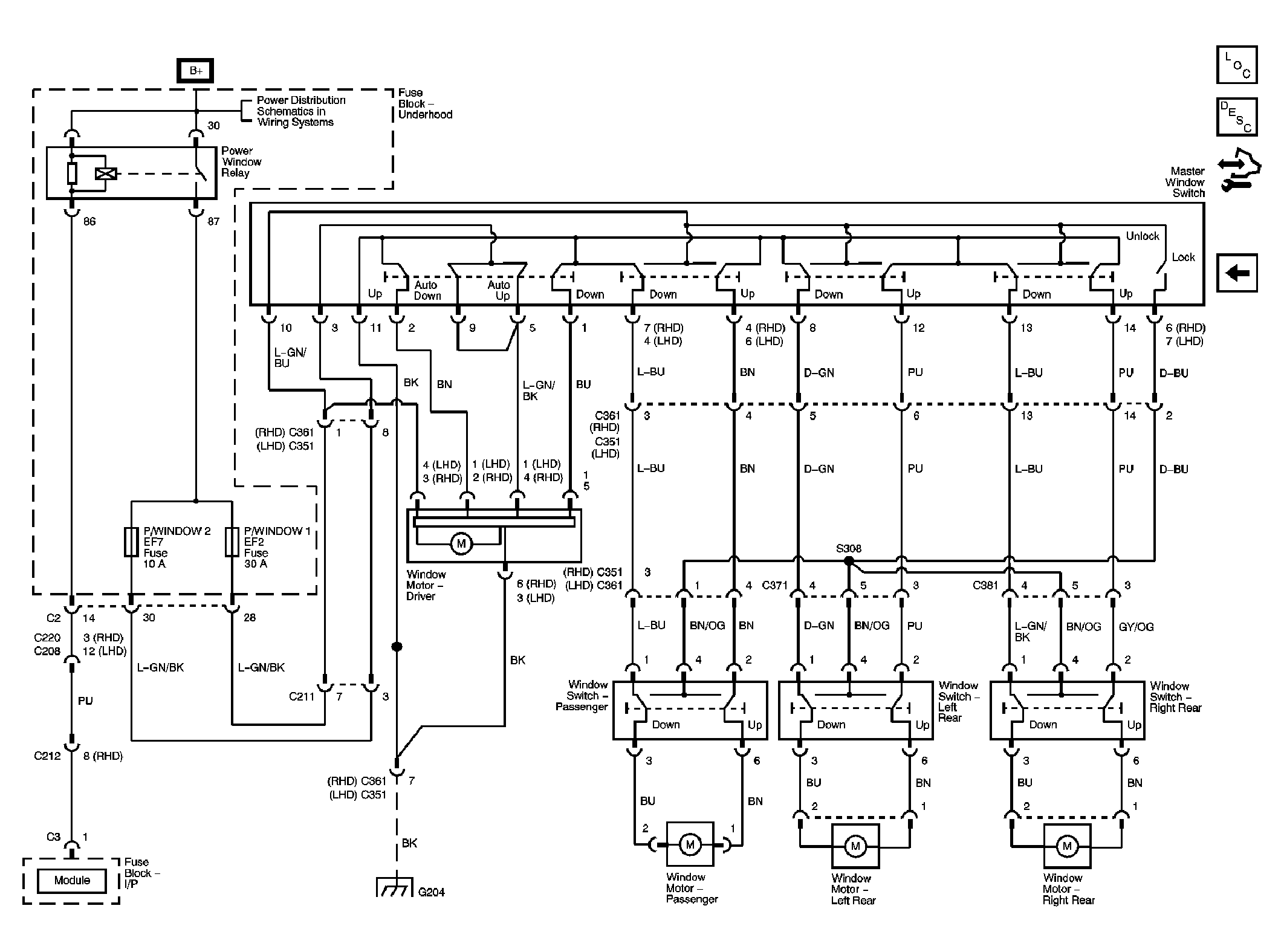

Fig 3: Safety Power Windows
GM1751242Courtesy of GENERAL MOTORS CORP.
