Defogger Schematics (Notchback)

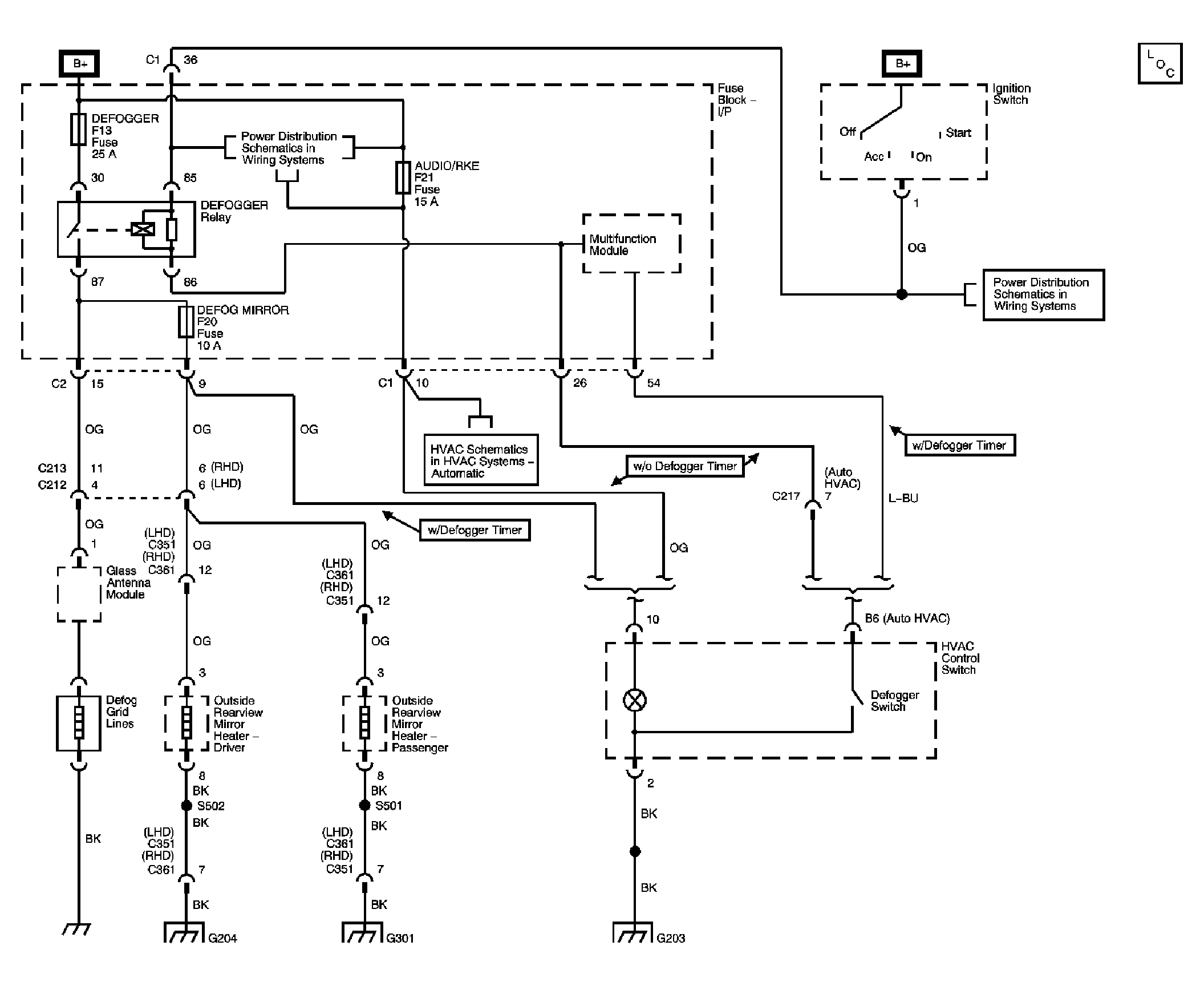

Fig 1: Defogger Schematic (Notchback)
Courtesy of GENERAL MOTORS CORP.
