Installation Procedure

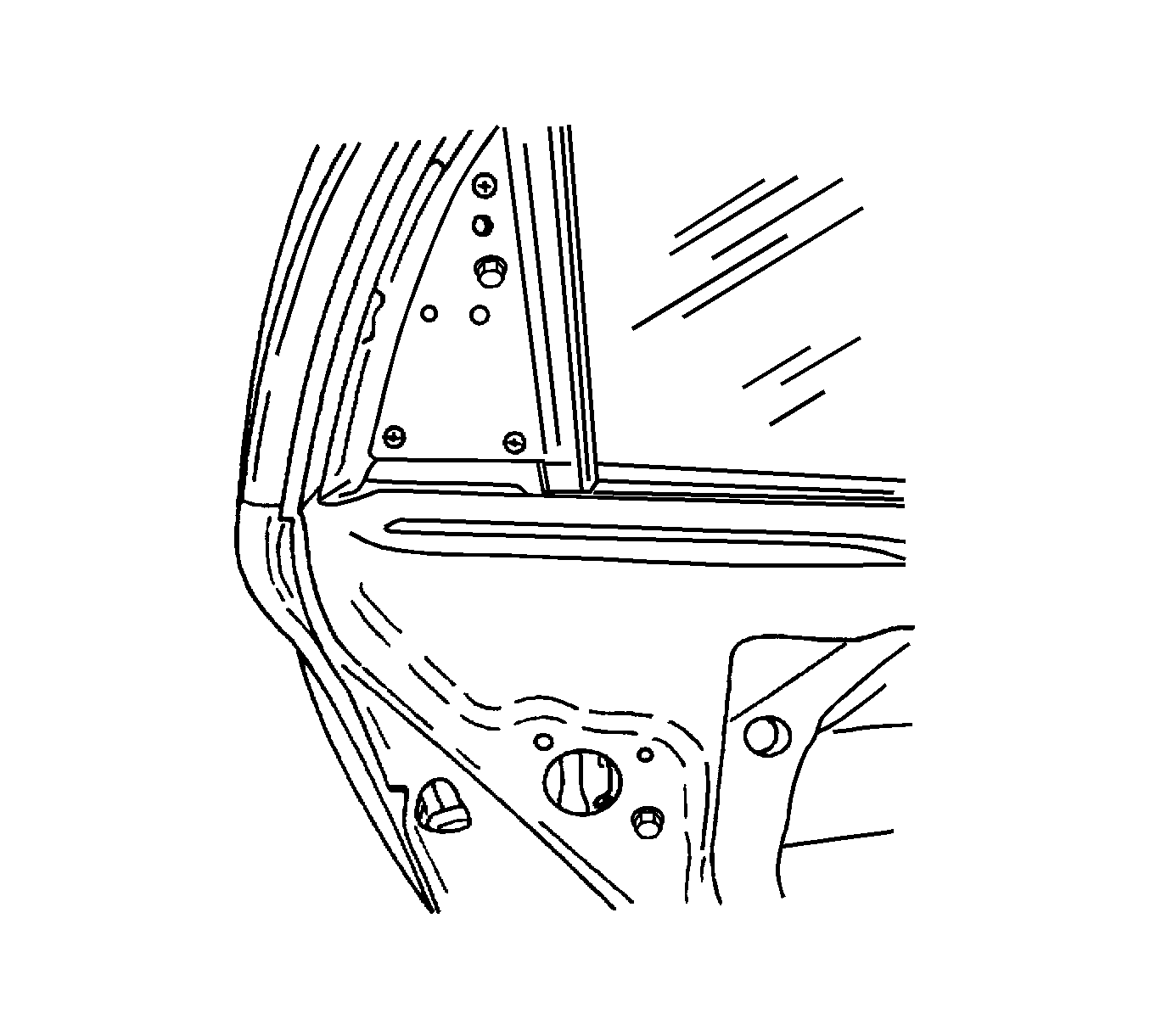

Fig 1: View of Guide Rail, Bolts, and Glass

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the guide rail and the bolts.
Tighten: Tighten the guide rail bolts to 7 N.m (62 lb in).

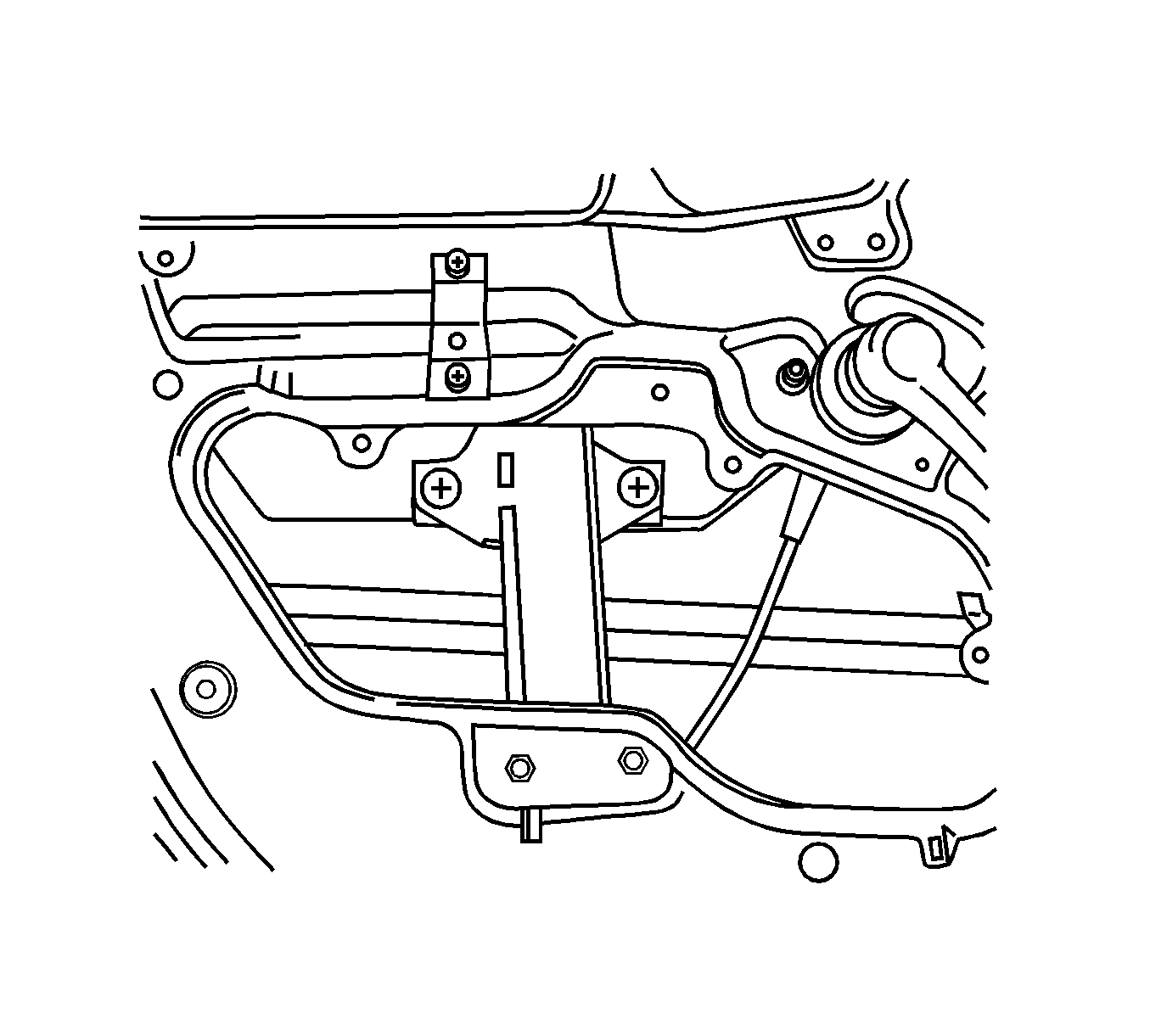

Fig 2: View of Screws That Secure Glass To Window Regulator

Courtesy of GENERAL MOTORS CORP.

Position the glass within the window regulator.
Install the glass screws.
Tighten: Tighten the door glass screws to 7 N.m (62 lb in).

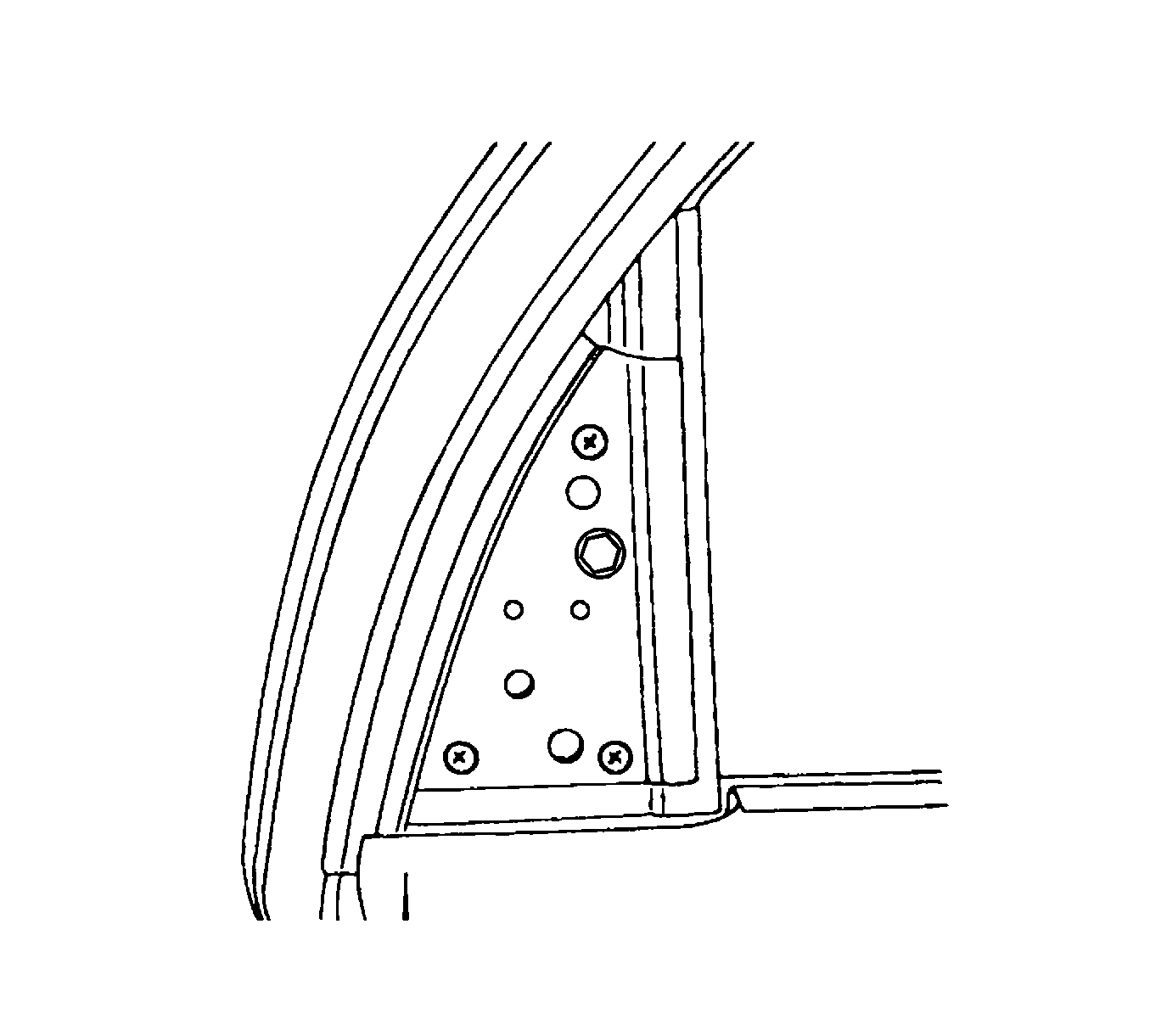

Fig 3: View of Exterior Rear Door Garnish Molding and Screws

Courtesy of GENERAL MOTORS CORP.

Install the door seal trim. Refer to Door Water Deflector Replacement .
Install the exterior rear door garnish molding with the screws.
Tighten: Tighten the exterior rear door garnish molding screws to 1.5 N.m (13 lb in).
Install the interior rear door garnish molding.
Install the outside channel molding. Refer to Rear Side Door Window Channel Replacement .
Install the rear door trim panel. Refer to Rear Door Trim Panel Replacement .
