Power Distribution Schematics (Notchback)

Fig 1: ABS, HAZARD, ECU, FUEL PUMP Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 2: FAN LOW, FAN HI, A/C COMP, P/WINDOW Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 3: Park Lamp Relay and Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 4: Head Lamp Relays and Fuses, Fog Lamp Relays and Fuses, BATT, STOPLAMPS, OBD Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 5: ROOM LAMP, SUNROOF, SPARE Fuses

Courtesy of GENERAL MOTORS CORP.

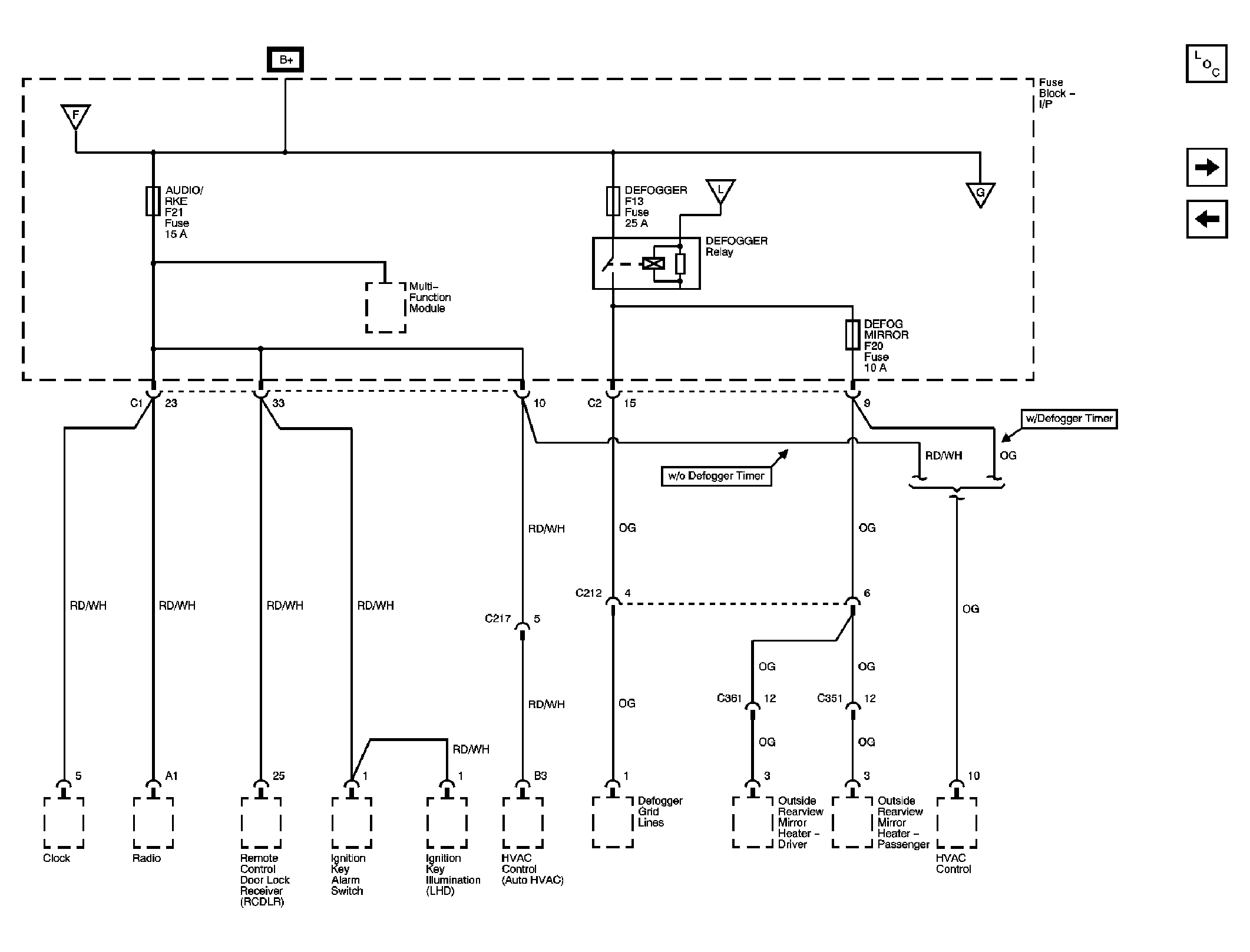

Fig 6: AUDIO RKE, DEFOGGER, DEFOG MIRROR Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 7: HORN, WIPER, DOOR LOCK, RR FOG Fuses and Relays

Courtesy of GENERAL MOTORS CORP.

Fig 8: ACC/IG1 Fuse, Ignition Switch, B/UP LAMP, ELEC MIRROR Fuses

Courtesy of GENERAL MOTORS CORP.

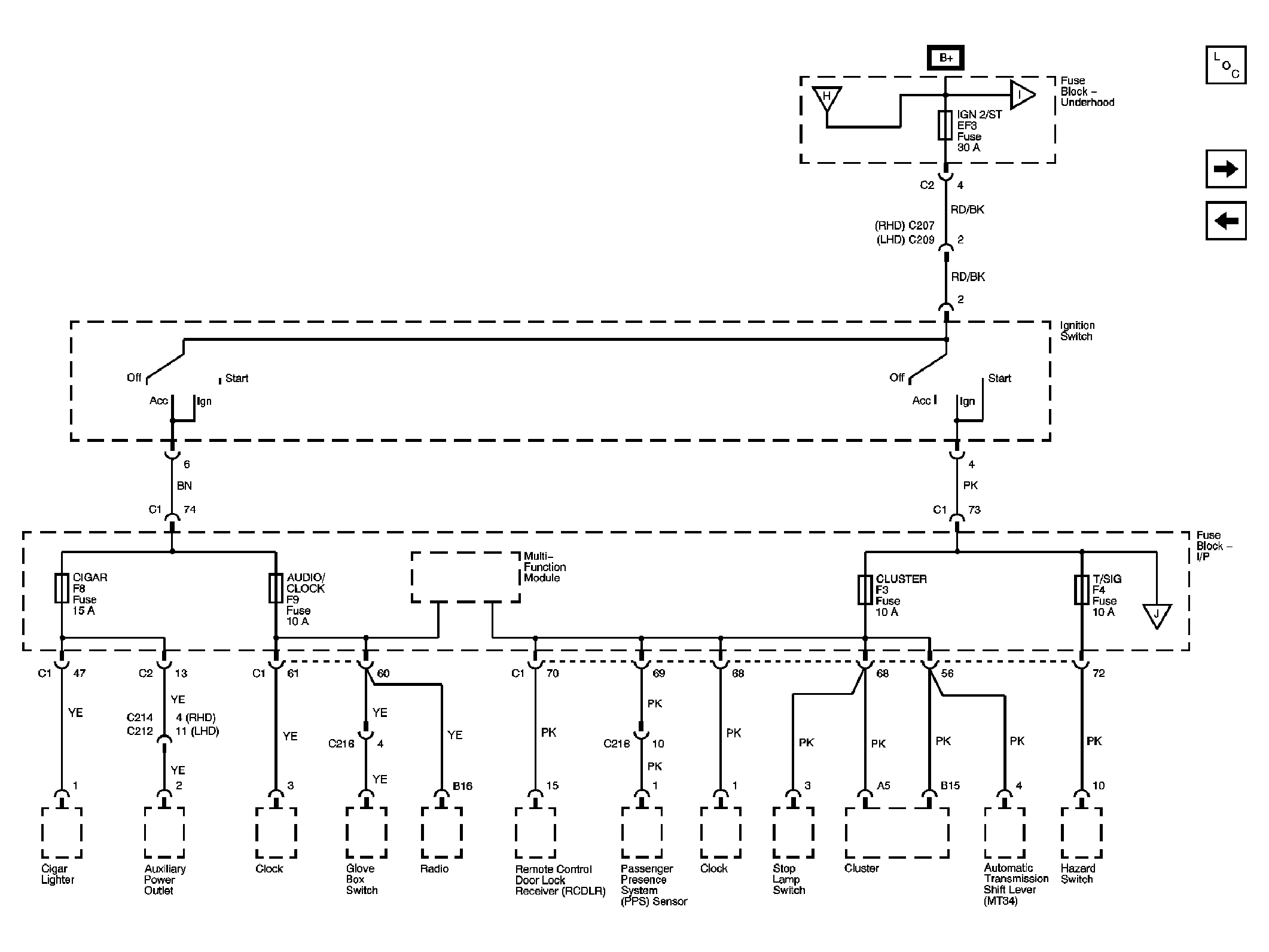

Fig 9: IGN 2/ST Fuse, Ignition Switch, CIGAR, AUDIO/CLOCK, CLUSTER, T/SIG Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 10: SDM, EMS 1, EMS 2 Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 11: Headlamp, Fan, A/C Relays

Courtesy of GENERAL MOTORS CORP.

Fig 12: MAIN, FAN, A/C, Relays, EMS1, EMS2 Fuses - Sirius D42, MT34

Courtesy of GENERAL MOTORS CORP.
