Measurements - Underbody (Notchback)

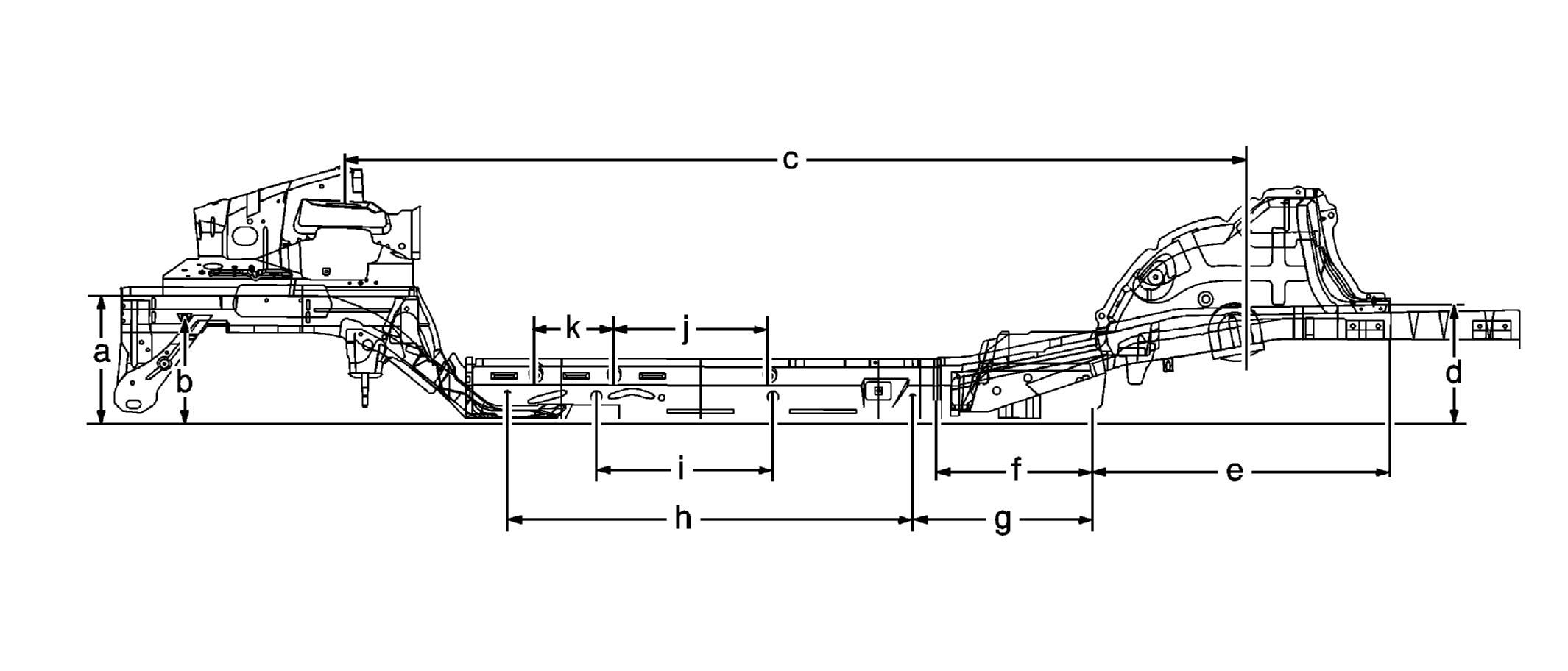

Fig 1: Body Side View Dimensions (Notchback)

GM1251606

Courtesy of GENERAL MOTORS CORP.

Body Side View Measurements (Notchback)

Points	Dimensions (mm)	Dimensions (in)
A	374 mm	14.72 in
B	292.1 mm	11.5 in
C	2,480 mm	97.63 in
D	313.1 mm	12.32 in
E	786.2 mm	30.95 in
F	411.4 mm	16.19 in
G	474.8 mm	18.69 in
H	1,128.8 mm	44.44 in
I	490 mm	19.29 in
J	432.6 mm	17.03 in
K	218 mm	8.6 in

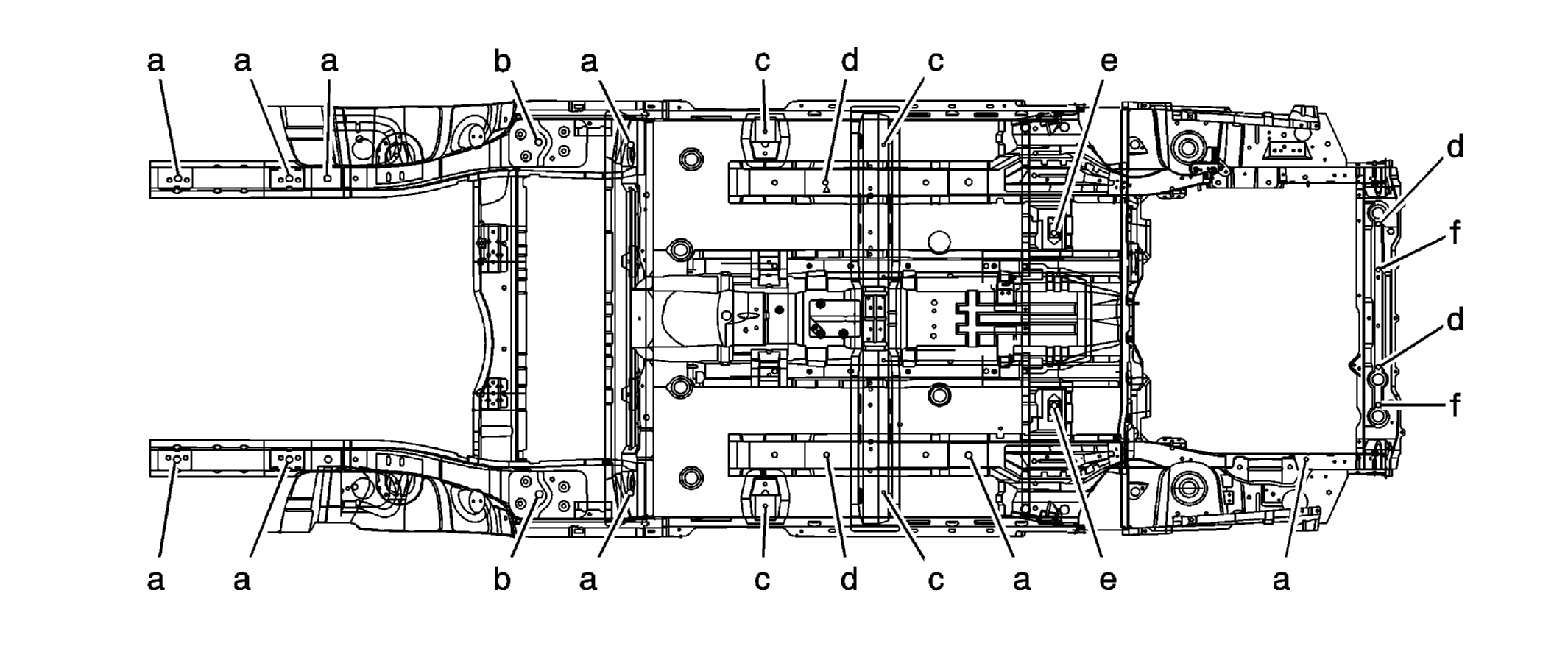

Fig 2: Underbody Reference Points (Notchback)

GM1251607

Courtesy of GENERAL MOTORS CORP.

Underbody Reference Points (Notchback)

Points	Dimensions (mm)	Dimensions (in)
A	20 mm	0.78 in
B	12 mm	0.47 in
C	11 mm	0.43 in
D	16 mm	0.62 in
E	10 mm	0.39 in
F	14 mm	0.55 in

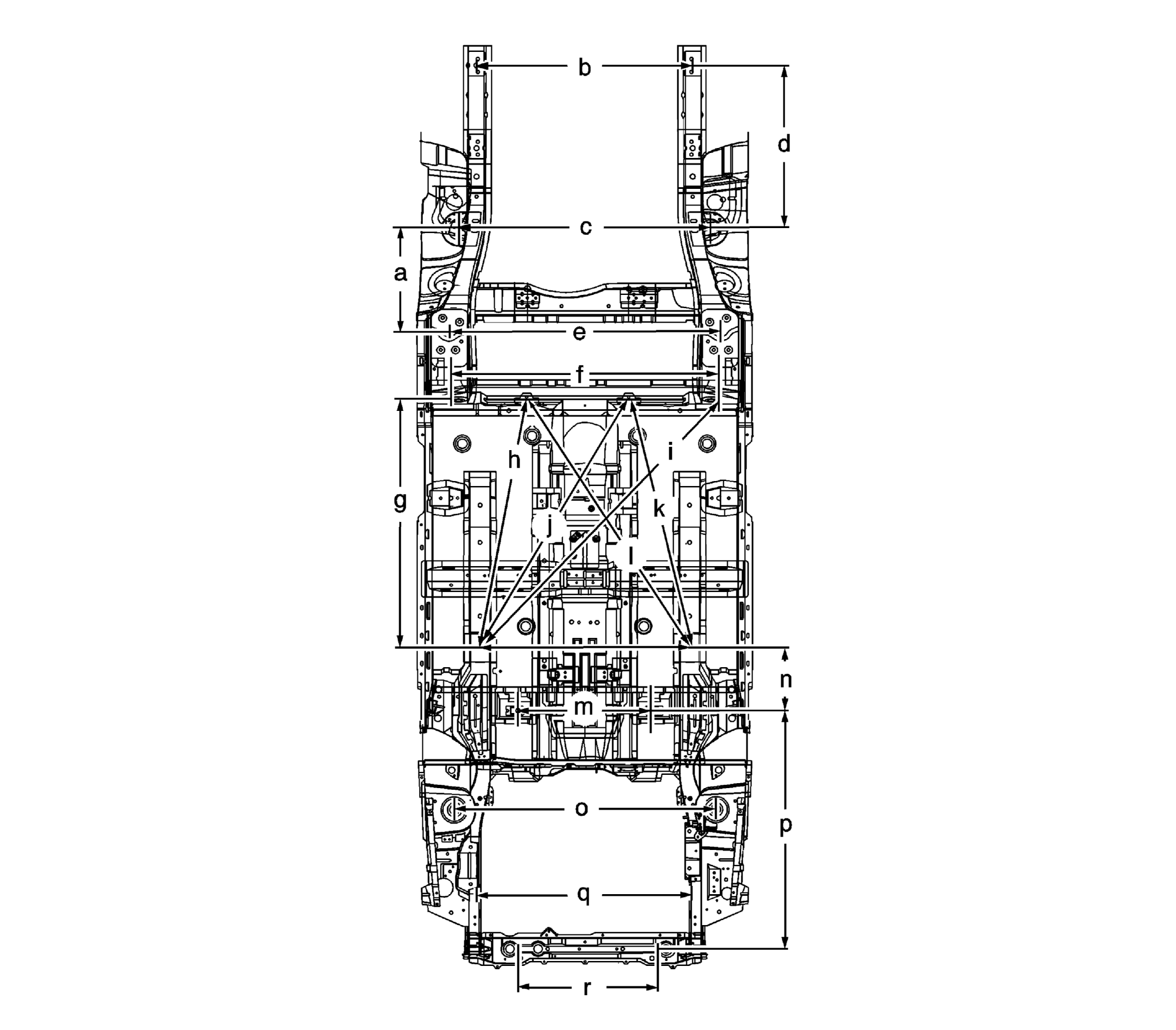

Fig 3: Underbody Frame (Notchback)

GM1308750

Courtesy of GENERAL MOTORS CORP.

Underbody Frame Measurements (Notchback)

Points	Dimensions (mm)	Dimensions (in)
A	422	16.61
B	909	35.79
C	1,062.6	41.81
D	657	25.87
E	1,147.6	45.16
F	1,128	44.41
G	1,052	41.42
H	1,087	42.80
I	1,458	57.40
J	1,240	48.82
K	1,099	43.27
L	1,272	50.10
M	564	22.20
N	270	10.63
O	1,110	43.70
P	1,015.2	39.96
Q	935.4	36.81
R	595	23.43

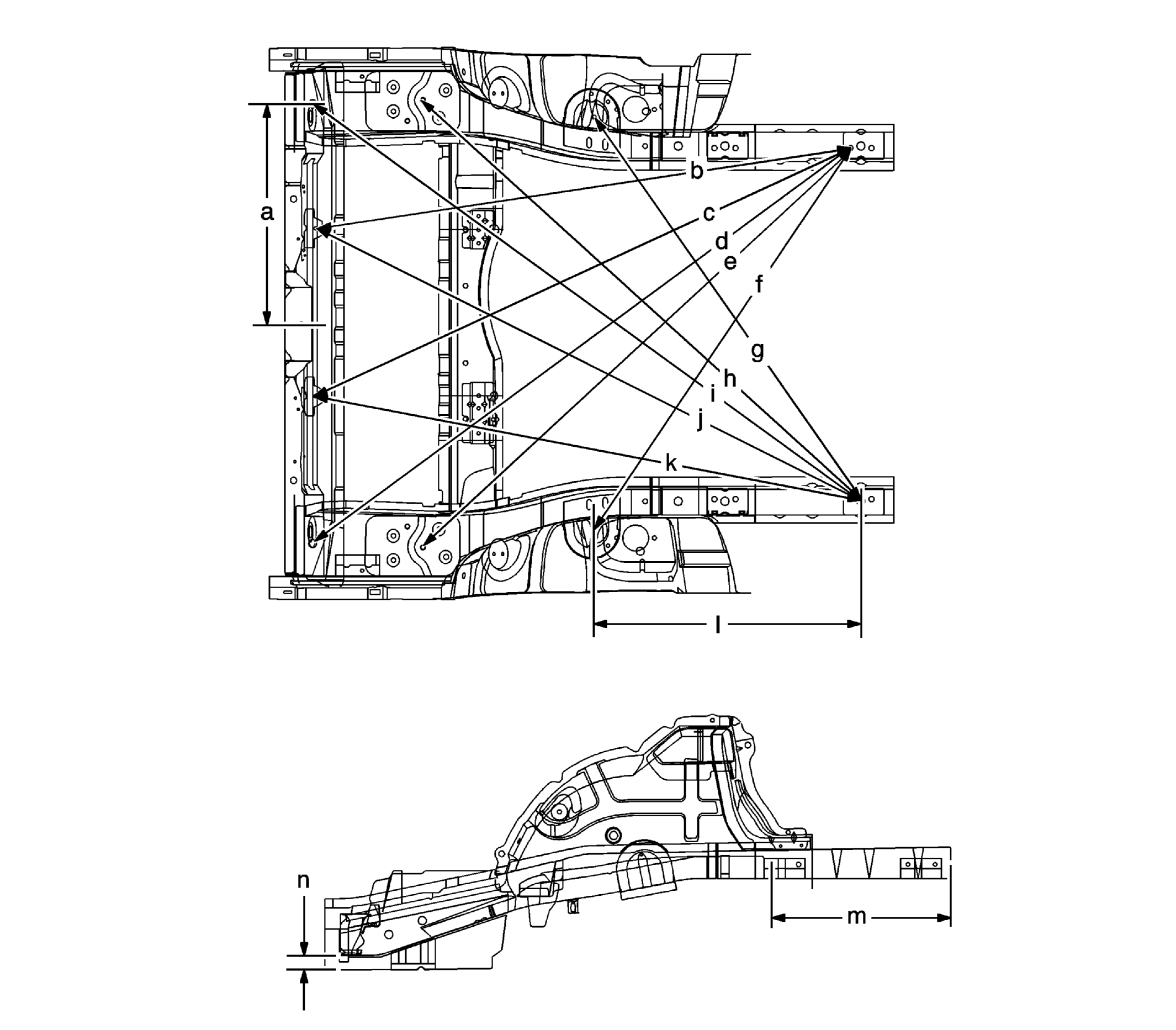

Fig 4: Rear Underbody (Notchback)

GM1770103

Courtesy of GENERAL MOTORS CORP.

Rear Underbody Measurements (Notchback)

Points	Dimensions (mm)	Dimensions (in)
A	595 mm	23.43 in
B	320 mm	12.60 in
C	1,373 mm	54.06 in
D	1,479 mm	58.23 in
E	1,492 mm	58.74 in
F	1,421 mm	55.94 in
G	564 mm	22.20 in
H	890 mm	35.04 in
I	692 mm	27.24 in
J	364 mm	14.38 in
K	229 mm	9.02 in
L	499 mm	19.65 in
M	250 mm	8.94 in

Fig 5: Rear Frame (Notchback)

GM1770103

Courtesy of GENERAL MOTORS CORP.

Rear Frame Measurements (Notchback)

Points	Dimensions (mm)	Dimensions (in)
A	564 mm	22.20 in
B	1,361 mm	53.58 in
C	1,487 mm	58.54 in
D	1,699 mm	66.89 in
E	1,491 mm	58.70 in
F	1,182 mm	46.54 in
G	1,191 mm	46.89 in
H	1,498 mm	58.98 in
I	1,706 mm	67.17 in
J	1,519 mm	59.80 in
K	1,373 mm	54.06 in
L	657 mm	25.87 in
M	440 mm	17.32 in
N	341 mm	1.34 in
