Windshield and Rear Glass (Notch Back)

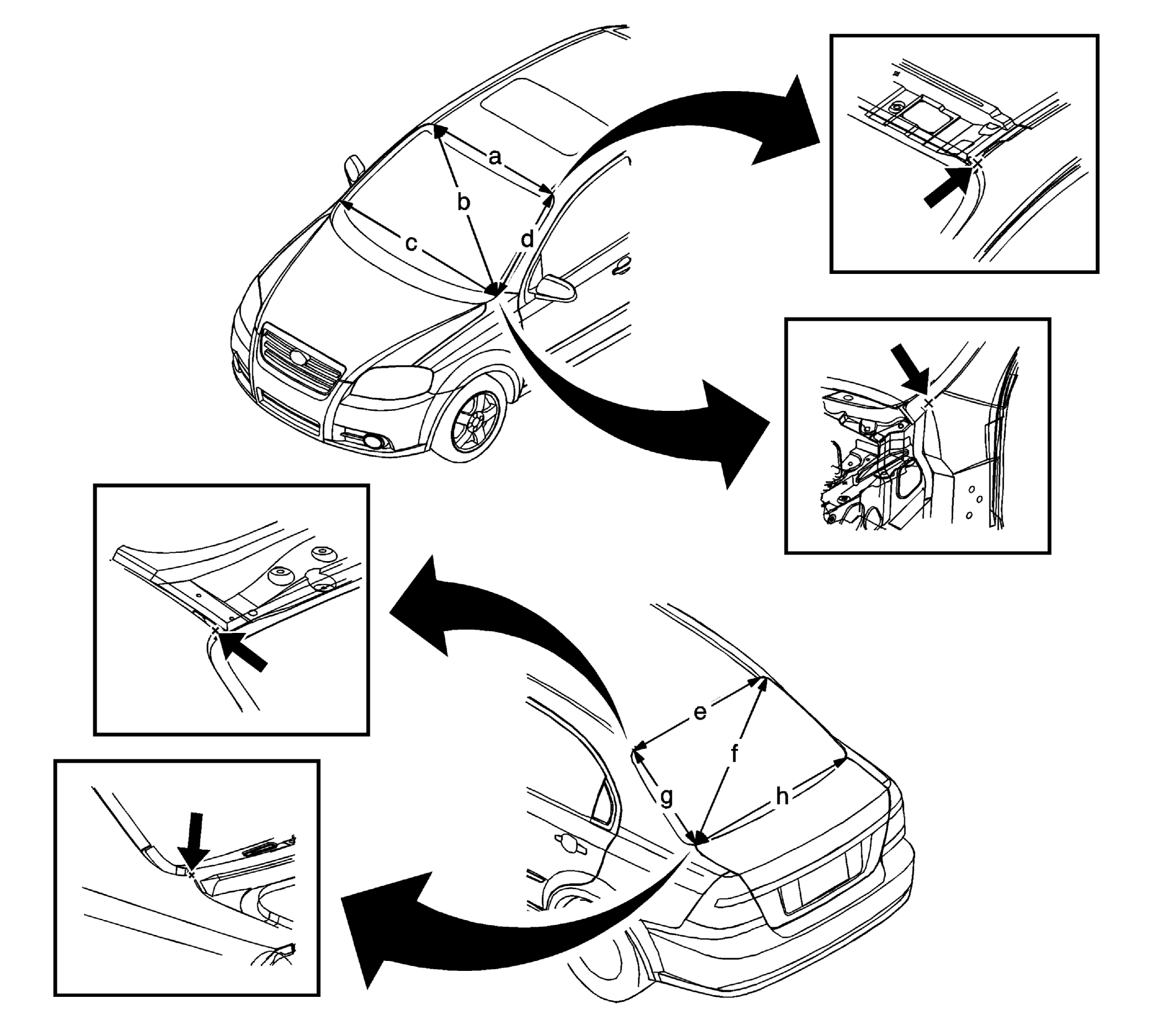

Courtesy of GENERAL MOTORS CORP. Windshield and Rear Glass Dimensions
| Points |
Dimensions (mm) |
Dimensions (in) |
|
IMPORTANT:
Reference dimensions show the distance between the center of positioning holes shown in illustrations.
|
| A |
1,052 |
41.42 |
| B |
1,415 |
55.71 |
| C |
1,368 |
53.86 |
| D |
749 |
29.49 |
| E |
957 |
37.68 |
| F |
1,222 |
48.11 |
| G |
631 |
24.84 |
| H |
1,143 |
45.00 |
