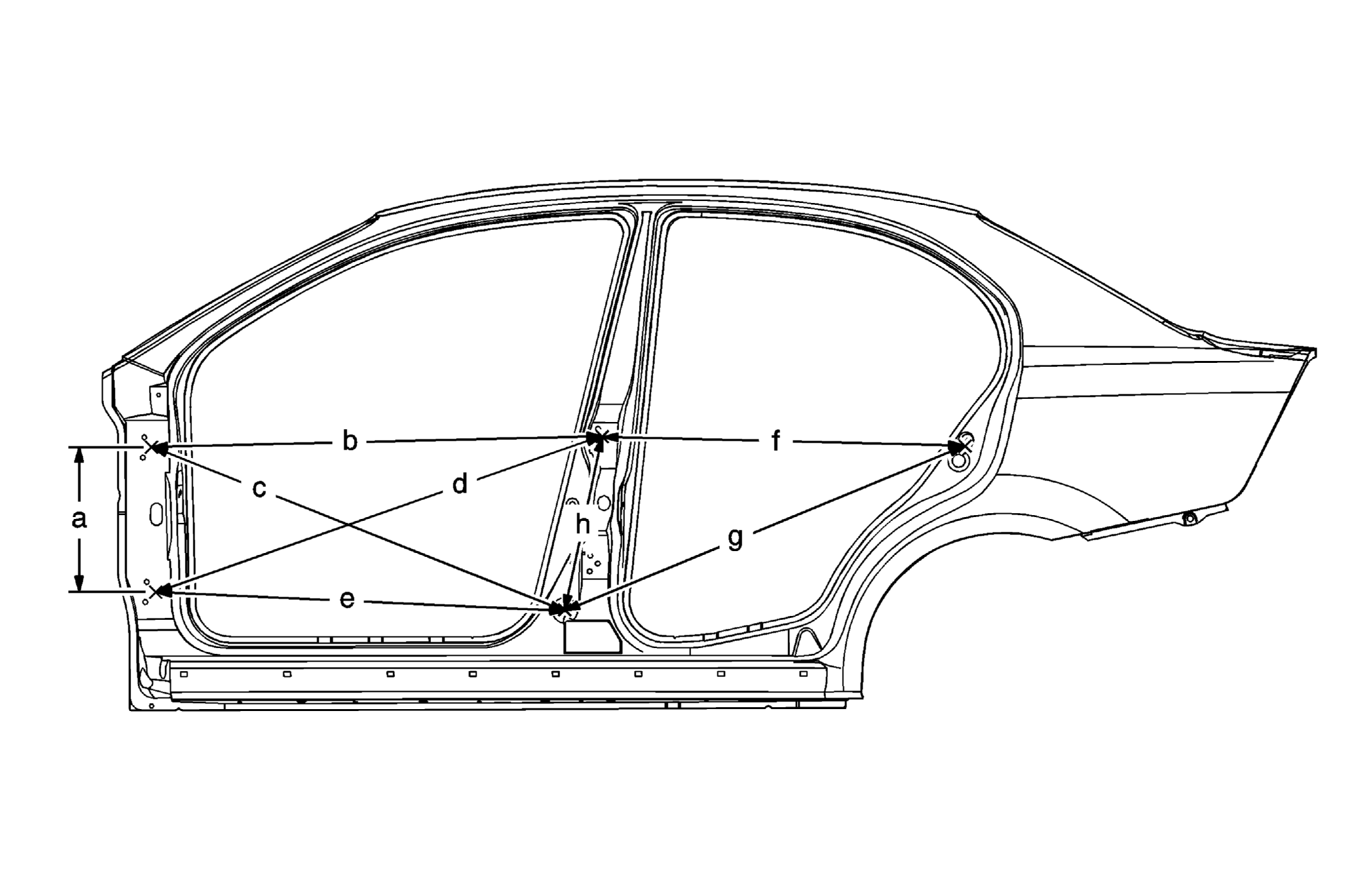

Side Outer (Notch Back)
Side Outer Dimensions Dimensions
| Points | Dimensions (mm) | Dimensions (in) |
|---|---|---|
|
IMPORTANT:
Reference dimensions show the distance between the designated position and opposite position shown in illustrations, outside-to-outside.
|
||
| A | 350.0 | 13.78 |
| B | 1091.0 | 42.95 |
| C | 1074.0 | 42.28 |
| D | 1147.0 | 45.16 |
| E | 992.0 | 39.06 |
| F | 879.0 | 34.61 |
| G | 1048.0 | 41.26 |
| H | 429.0 | 16.89 |
