Front Panel

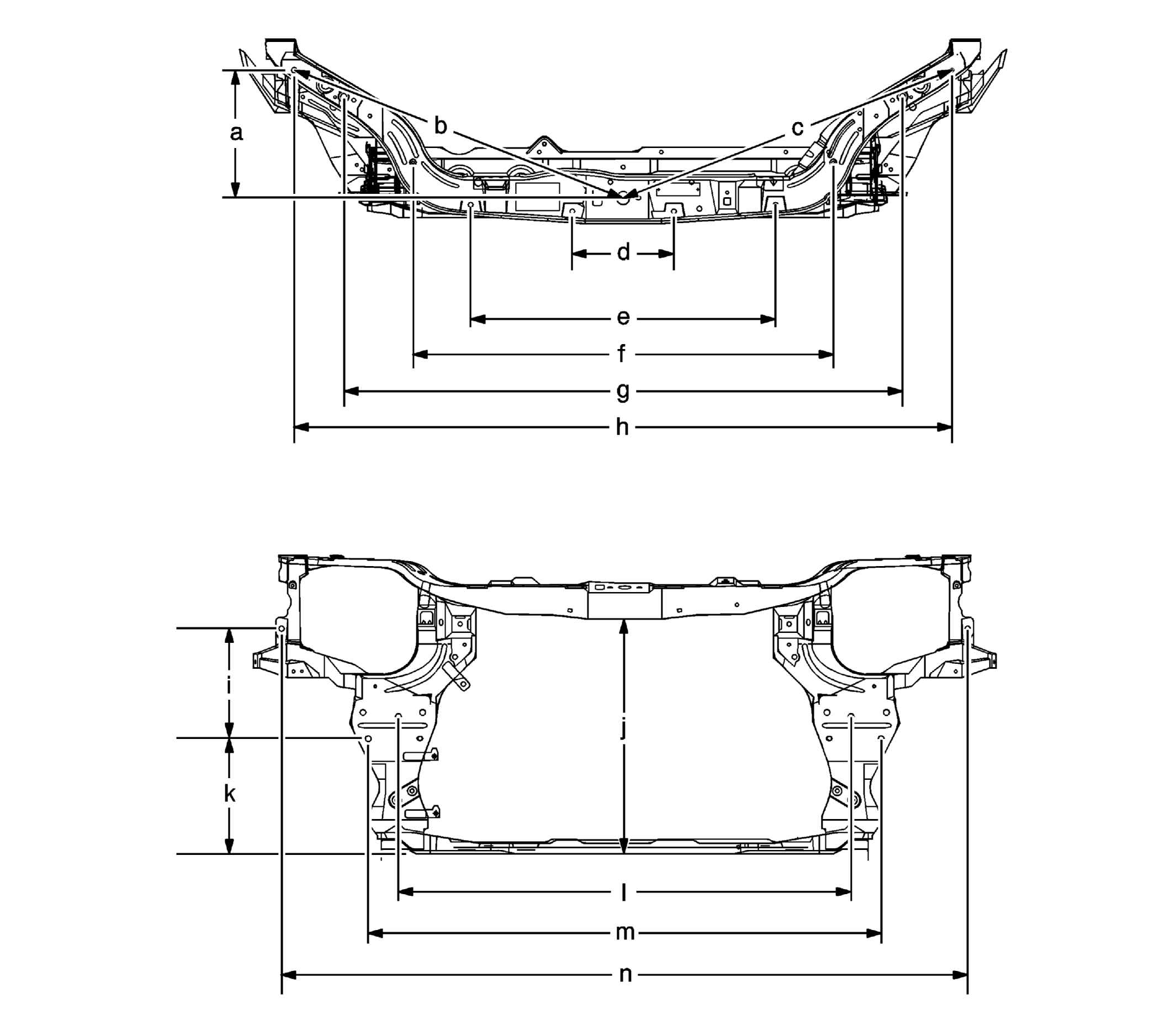

Front Panel Dimensions
| Points | Dimensions (mm) | Dimensions (in) |
|---|---|---|
|
IMPORTANT:
Reference dimensions show the distance between the center of positioning holes shown in illustrations.
|
||
| A | 252.0 | 9.92 |
| B | 697.0 | 27.44 |
| C | 697.0 | 27.44 |
| D | 200.0 | 7.87 |
| E | 600.0 | 23.62 |
| F | 827.0 | 32.62 |
| G | 1,100.0 | 43.31 |
| H | 1,295.0 | 54.88 |
| I | 178.0 | 17.01 |
| J | 478.0 | 18.82 |
| K | 281.0 | 11.06 |
| L | 920.0 | 36.22 |
| M | 1,043.0 | 41.02 |
| N | 1,394.0 | 54.88 |
