Floor Pan

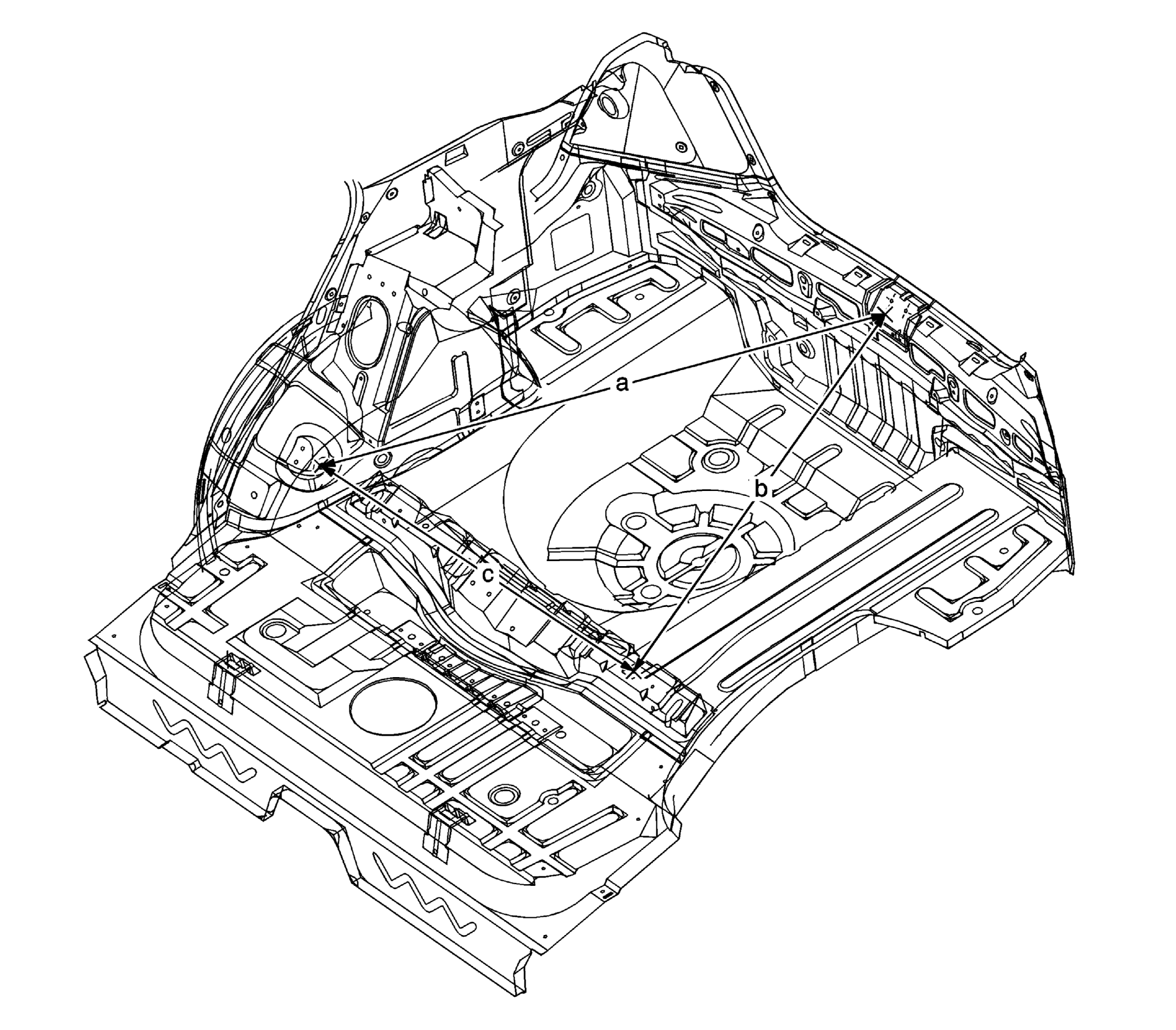

Fig 1: Floor Pan Dimensions

Courtesy of GENERAL MOTORS CORP.

Floor Pan Dimensions

Points	Dimensions (mm)	Dimensions (in)
IMPORTANT: Reference dimensions show the distance between the center of positioning holes shown in illustrations.
A	1,161	45.71
B	1,028	40.72
C	869	34.21
