Back Panel Lower (Notch Back)

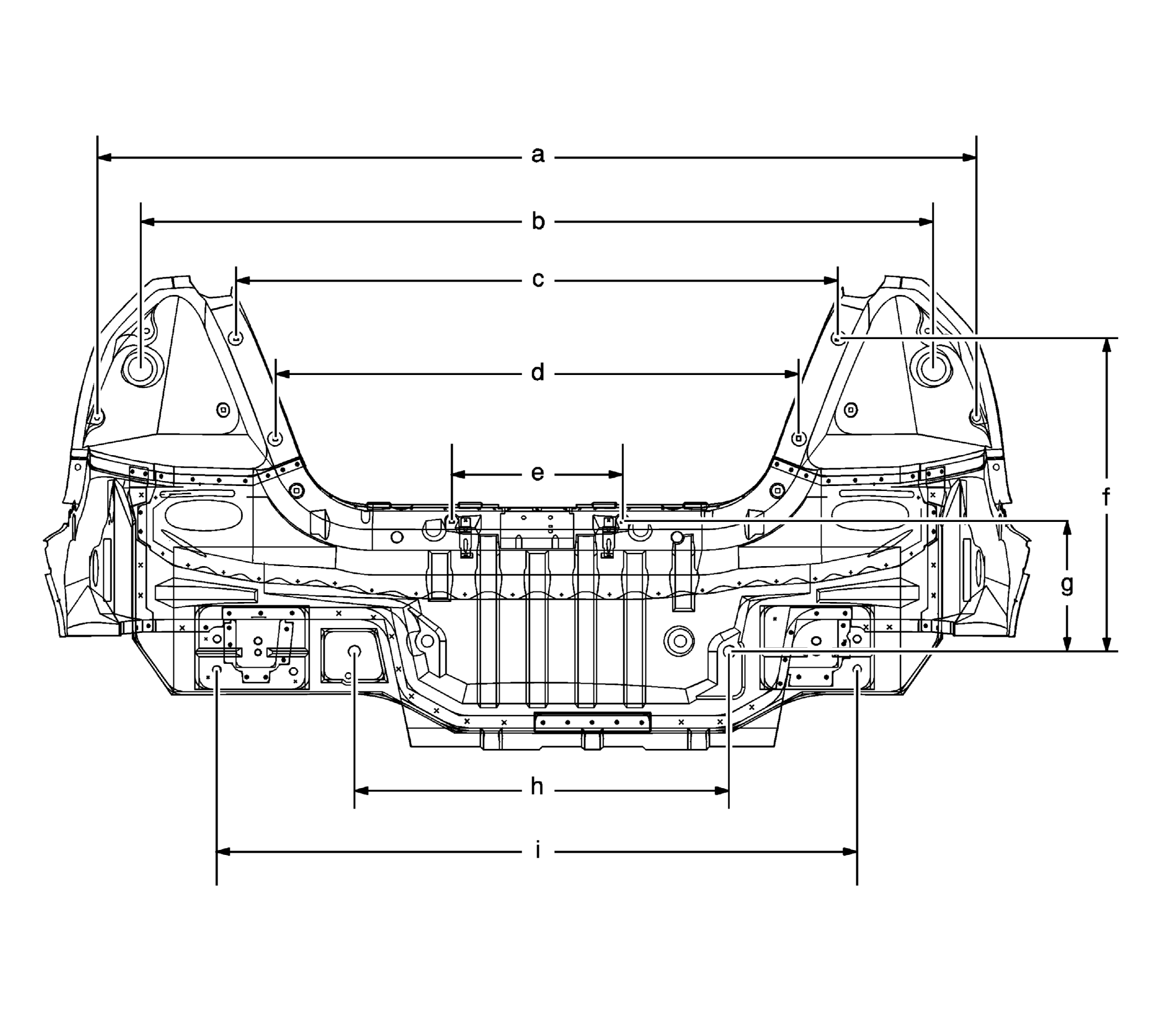

Courtesy of GENERAL MOTORS CORP. Back Panel Lower Dimensions
| Points |
Dimensions (mm) |
Dimensions (in) |
|
IMPORTANT:
Reference dimensions show the distance between the center of positioning holes shown in illustrations.
|
| A |
1445 |
56.89 |
| B |
1,303 |
51.30 |
| C |
990 |
38.98 |
| D |
861 |
33.90 |
| E |
280 |
11.02 |
| F |
515 |
20.28 |
| G |
215 |
8.46 |
| H |
616 |
24.25 |
| I |
1,051 |
41.38 |
