Installation Procedure

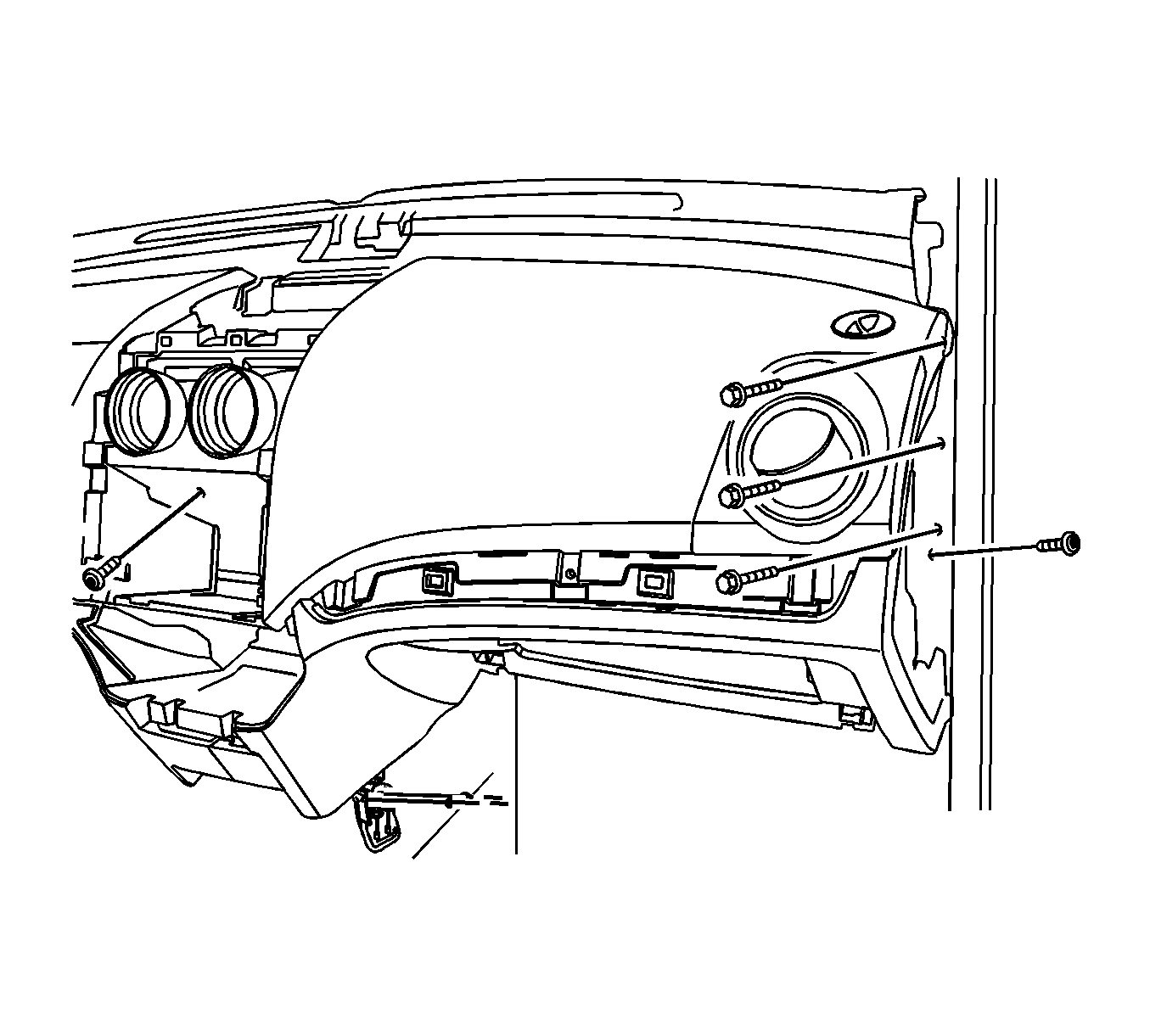

    Fig 1: Instrument Panel End Screws
    GM1721675Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the instrument panel assembly with the right side end screws.

    Tighten:  Tighten the instrument panel bolts to 20 N.m (15 lb ft).

  2. Install the tie bar retaining bolts.

    Tighten:  Tighten the tie bar retaining bolts to 20 N.m (15 lb ft).

  3. Connect ALDL connector with the screws.

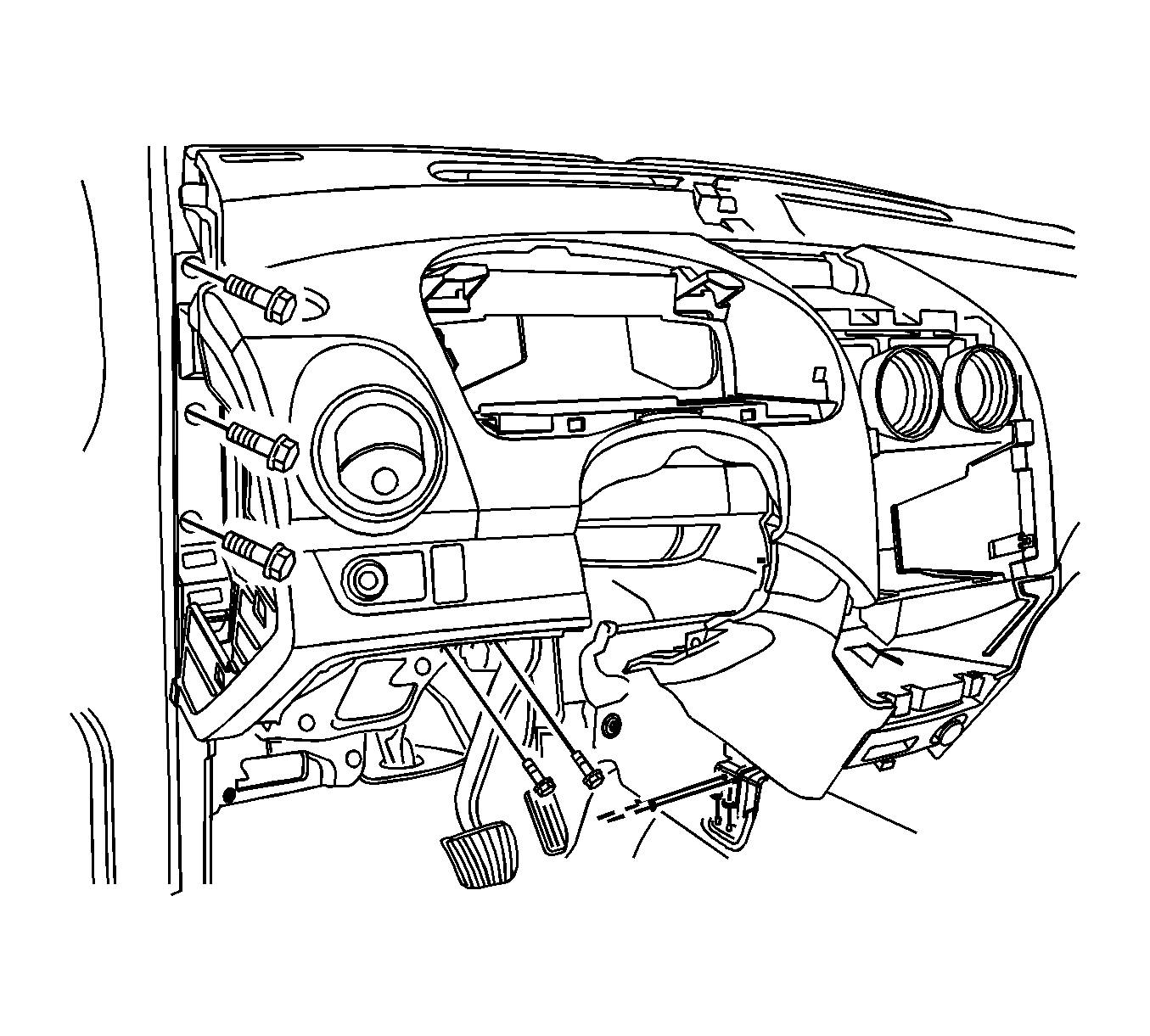

    4. Fig 2: Instrument Panel Bolts
    GM1721673Courtesy of GENERAL MOTORS CORP.
  4. Install the instrument panel bolts to the left side of the instrument panel.

    Tighten:  Tighten the instrument panel bolts to 20 N.m (15 lb ft).

  5. Install the instrument panel bolts above the steering column.

    Tighten:  Tighten the instrument panel bolts to 20 N.m (15 lb ft).

  6. Install the instrument panel bolts behind the HVAC assembly.

    Tighten:  Tighten the instrument panel bolts behind the HVAC assembly to 4 N.m (35 lb in).

    7. Fig 3: View of Instrument Panel For Audio System and A/C Controller
    GM1248457Courtesy of GENERAL MOTORS CORP.
  7. Install the digital clock.
  8. Install glove box assembly to the instrument panel. Refer to Instrument Panel Compartment Replacement .
  9. Install the audio system to the instrument panel. Refer to Radio Replacement .
  10. Install the A/C controller to the instrument. Refer to HVAC Control Assembly Replacement .
  11. Install the cupholder.
  12. Install the cigar lighter and ashtray.

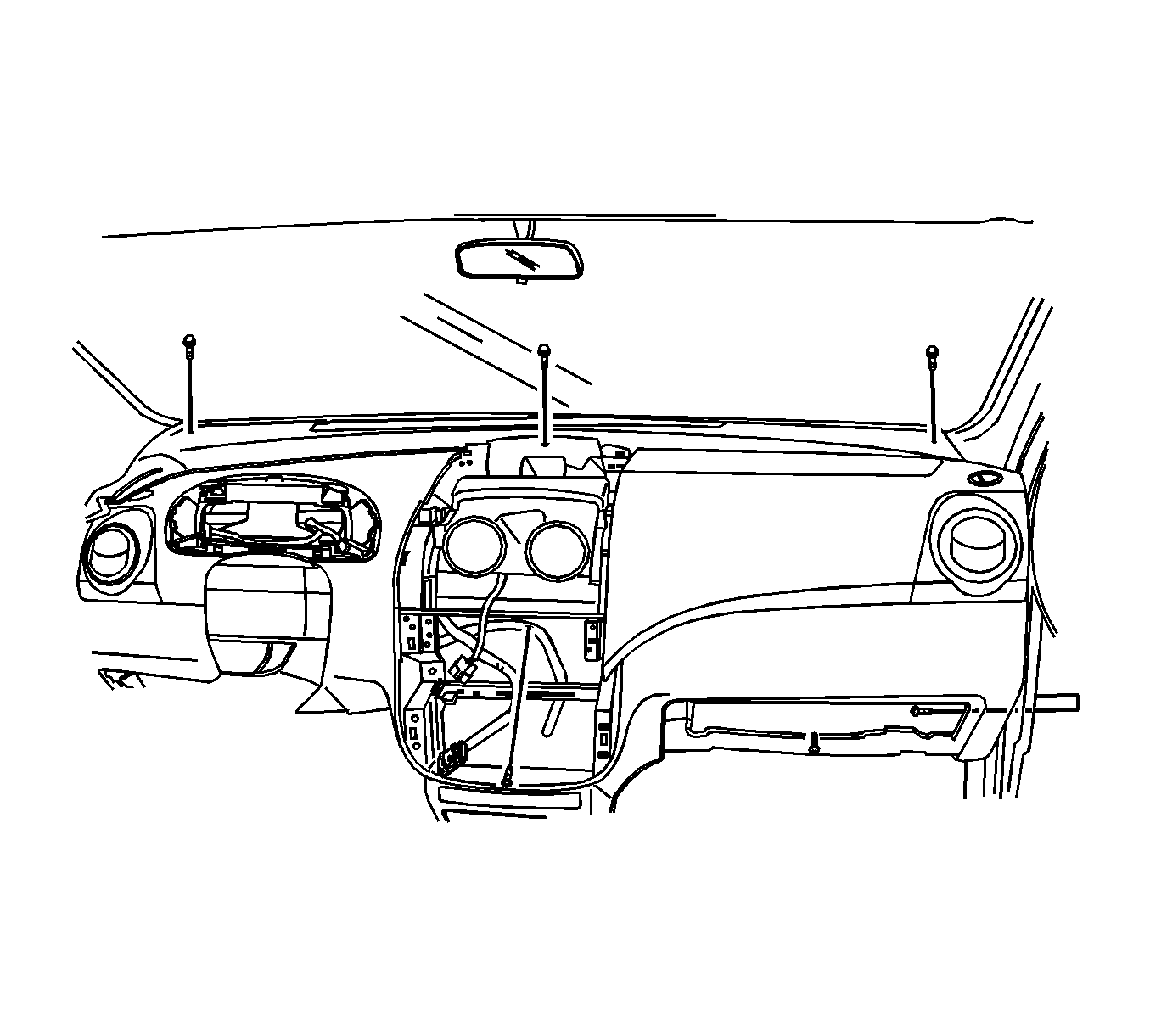

    13. Fig 4: View Of Dash
    GM1721672Courtesy of GENERAL MOTORS CORP.
  13. Install the instrument panel center vents.
  14. Install the instrument panel lower cover.
  15. Install the side cover.
  16. Install the instrument cluster assembly. Refer to Instrument Cluster Replacement .
  17. Install the windshield pillar garnish molding. Refer to Windshield Pillar Garnish Molding Replacement .
  18. Install the signal lamp switch and the wiper switch. Refer to Turn Signal Multifunction Switch Replacement for signal, and refer to Wipers/Washer Switch Replacement .
  19. Install the steering column trim cover. Refer to Steering Column Replacement .
  20. Install the steering wheel to the steering column. Refer to Steering Wheel Replacement .
  21. Install the driver's air bag module to the steering wheel, if equipped. Refer to Inflatable Restraint Steering Wheel Module Replacement .
  22. Connect the negative battery cable.
