Data Communication Schematics (Notchback)

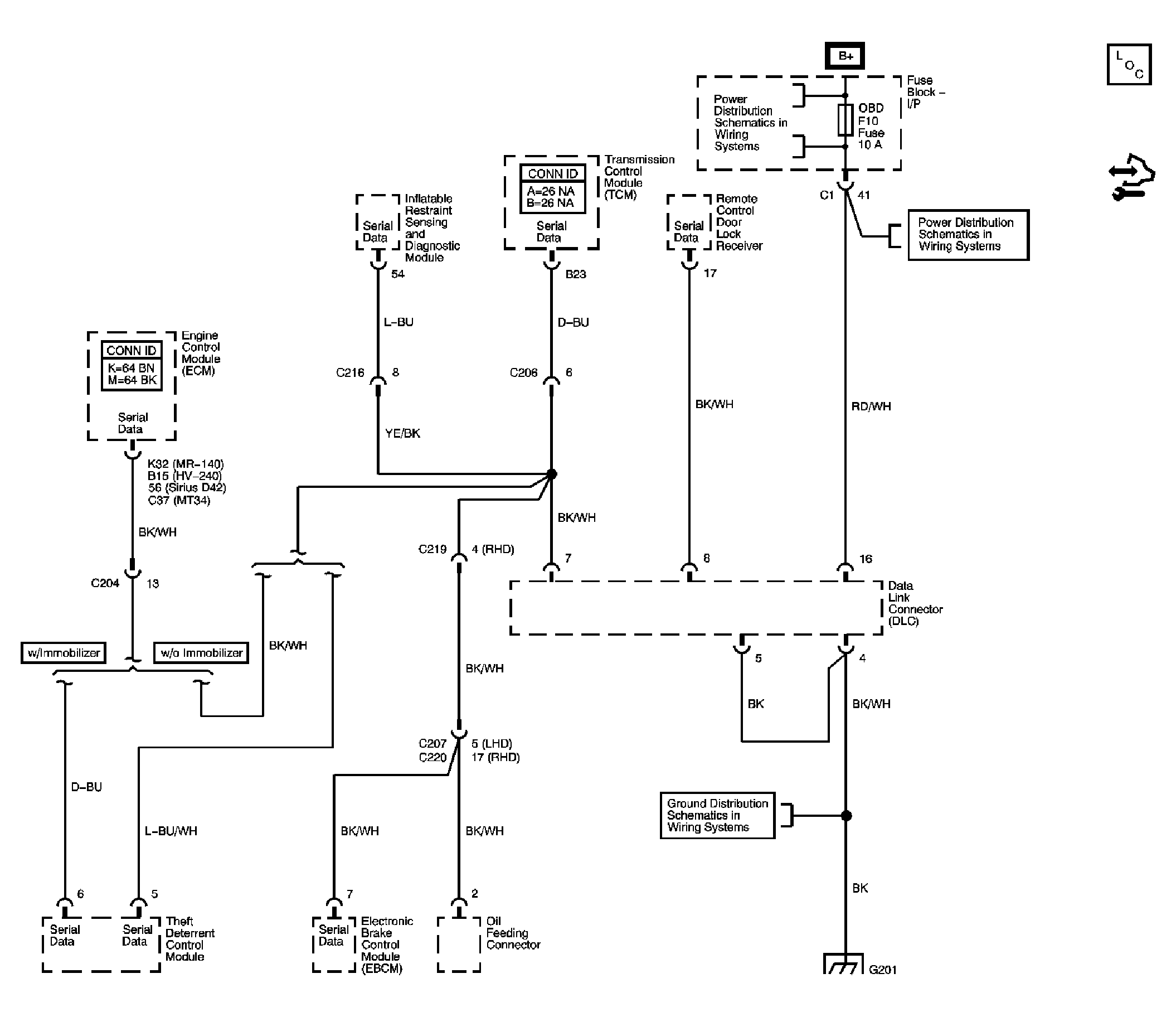

Fig 1: DLC Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
