Transfer Assembly Disassembly and Reassembly: Disassembly

NOTE: It is possible to disassemble transfer assembly without removing intermediate shaft with Step  1) to  4) performed if not necessary.
  1. Remove right case oil seal No.1 (1) from transfer right case using special tool.

    Special Tool

    : 09913-50121

  2. Remove snap ring (2) by using snap ring pliers.
  3. Remove intermediate shaft (4) with intermediate shaft bearing (3) from transfer assembly.
  4. Remove intermediate shaft bearing (3) from intermediate shaft (4) by using bearing puller and hydraulic press.
    Fig 1: Identifying Intermediate Shaft And Intermediate Shaft Bearing
    G04847430Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove transfer output retainer assembly (1) and shim (3) by removing retainer bolts (2).
  6. Remove transfer case bolts (4).
  7. Separate transfer right case (5) from transfer left case (6) by using special tool.

    Special Tool

    (A): 09912-34510

  8. Remove reduction drive gear assembly (7) and reduction driven gear assembly (9).
  9. Remove shim (10) and bearing outer races (8).
    NOTE: When it is difficult to remove bearing outer races from cases, remove them with special tool.

    Special Tool

    (B): 09944-96011

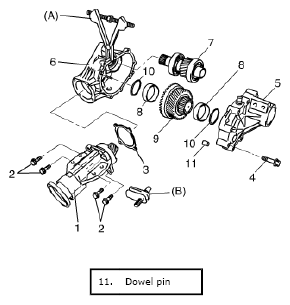

    Fig 2: Identifying Transfer Assembly Components
    G04847431Courtesy of SUZUKI OF AMERICA CORP.
