Manual Transaxle Unit Components

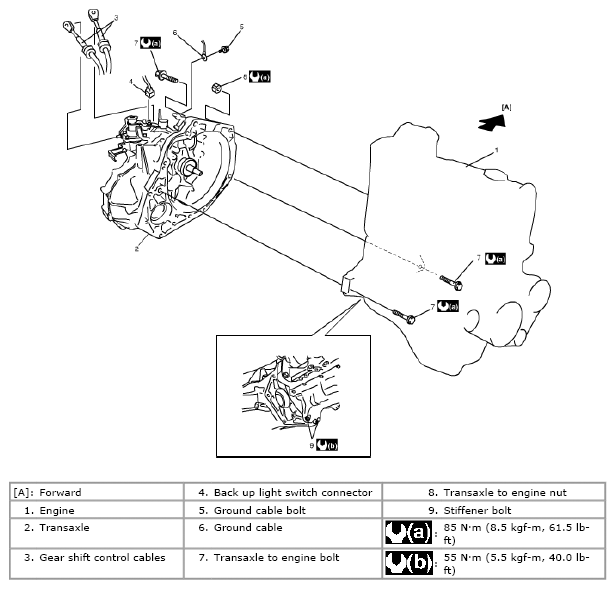

Fig 1: Identifying Manual Transaxle Unit Components With Tightening Torque
G04848056Courtesy of SUZUKI OF AMERICA CORP.
