Manual Transaxle Oil Change
- Before changing oil, be sure to stop engine and lift vehicle horizontally.
- With vehicle lifted up, check leakage.
If leakage exists, correct it.

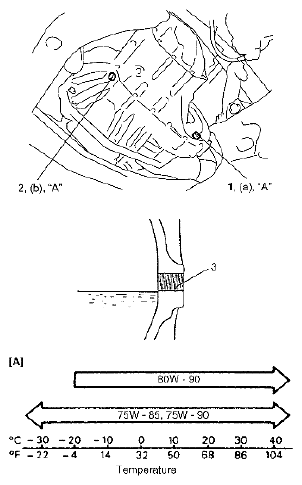

NOTE: Whenever vehicle is hoisted for any other service work than oil change, also be sure to check for oil leakage. - Remove oil level / filler plug (2).
- Remove drain plug (1), and drain old oil.
- Apply sealant to thread of drain plug (1), and tighten it to specified torque.
"A": Sealant 99000-31260SUZUKI Bond No.1217G
Tightening torque
Transaxle oil drain plug a: 21 N.m (2.1 kg-m, 15.5 lb-ft)
- Pour new specified oil until oil level reaches bottom of oil filler plug hole (3) as shown in figure.NOTE: It is highly recommended to use API GL-4 75W-90 gear oil.
Transaxle oil specification
: API GL-4 (For SAE classification, refer to Fig 1 in figure.)
Transaxle oil capacity (Reference)
: 2.5 liters (5.3/4.4 US/lmp. pt.)
- Apply sealant to thread of level / filler plug, and then tighten it to specified torque.
"A": Sealant 99000-31260SUZUKI Bond No.1217G
Tightening torque
Transaxle oil level / filler plug b: 21 N.m (2.1 kg-m, 15.5 lb-ft)
