Input Shaft and Countershaft Components

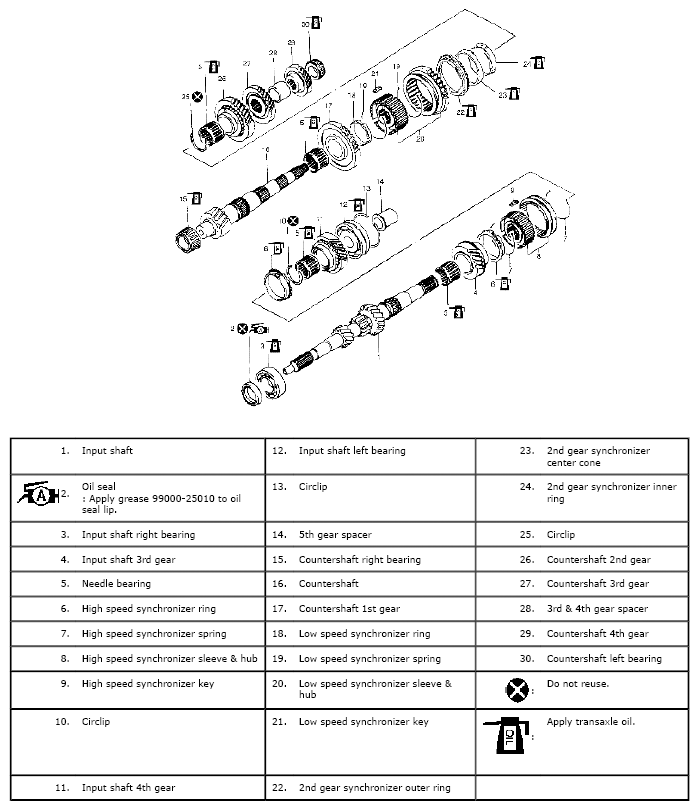

Fig 1: Exploded View Of Input Shaft And Countershaft Components
G04848103Courtesy of SUZUKI OF AMERICA CORP.
