Gear Shift and Select Shaft Assembly Removal and Installation: Removal

  1. Remove battery and tray with ECM.
  2. Disconnect gear shift and gear select control cables from transaxle.
  3. Remove gear shift interlock bolt (1) and 5th to reverse interlock guide bolt (2) from transaxle case.
  4. Remove gear shift & select shaft assembly (3).

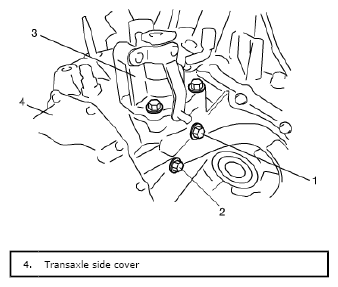

    Fig 1: Identifying Gear Shift Interlock Bolt And 5th To Reverse Interlock Guide Bolt
    G04848061Courtesy of SUZUKI OF AMERICA CORP.
