Gear Shift and Select Shaft Assembly Components

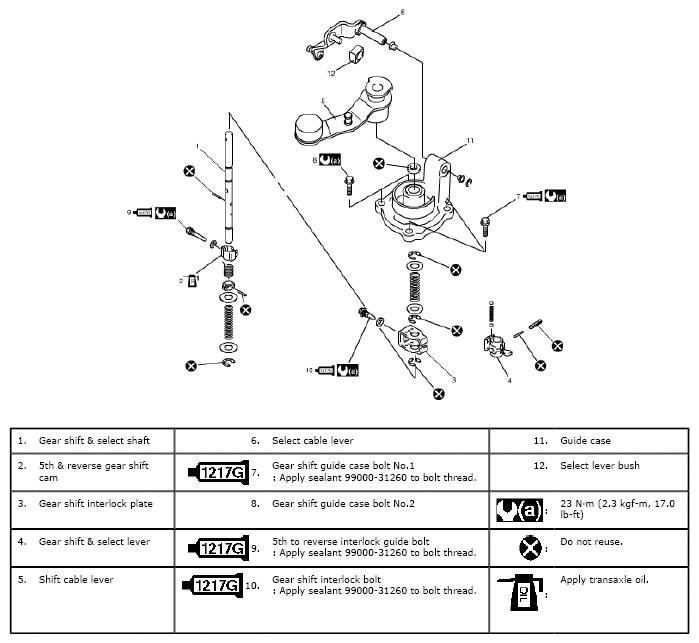

Fig 1: Identifying Gear Shift And Select Shaft Assembly Components With Tightening Torques
G04848060Courtesy of SUZUKI OF AMERICA CORP.
