Gear Shift Control Lever and Cable Components

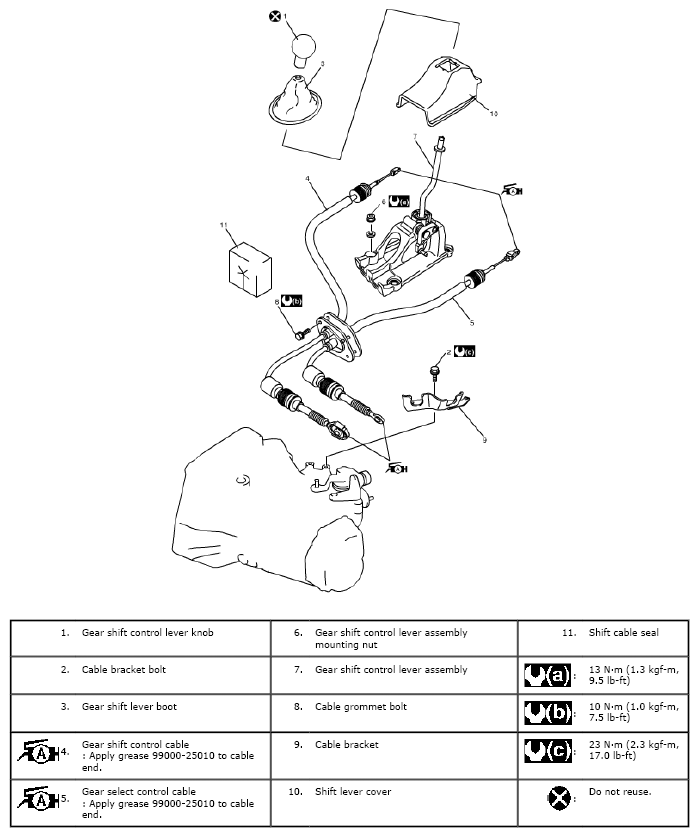

Fig 1: Identifying Gear Shift Control Lever And Cable Components With Tightening Torque
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
