Clutch Operating Cylinder Assembly Removal and Installation: Removal
- Clean around reservoir cap of brake master cylinder and take out fluid with syringe or such.
- Dismount transaxle assembly referring to MANUAL TRANSAXLE UNIT DISMOUNTING AND REMOUNTING
.

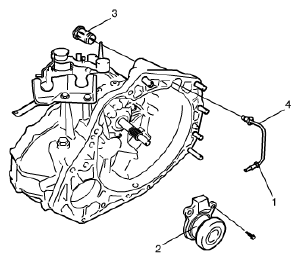

- Loosen clutch fluid pipe flare nut (1) of clutch operating cylinder assembly (2).
- Remove clutch pipe joint sleeve (3) from transaxle and then remove clutch fluid pipe (4).
- Remove clutch operating cylinder assembly from transaxle.
