Clutch Fluid Pipe Removal and Installation: Removal
CAUTION:
Do not allow fluid to get on painted surface. It may cause painted surface damage.
- Remove dust and dirt from each joint of pipe to be disconnected and clean around brake master cylinder reservoir cap.
- Take out fluid with syringe or such from brake master cylinder reservoir.

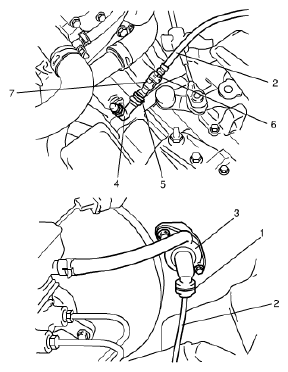

- Pull clamp (1) of clutch master cylinder (3) and pull clamp (5) of fluid pipe joint (4), and then disconnect clutch fluid pipe (2).
- Pull clamp (6) of damper (7), and then disconnect damper (7) from clutch fluid pipe (2).
