Clutch Cover and Clutch Disc Components

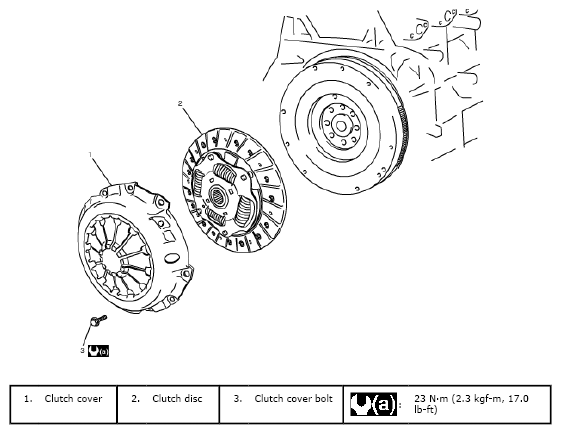

Fig 1: Identifying Clutch Cover And Clutch Disc Components With Tightening Torque
G04848188Courtesy of SUZUKI OF AMERICA CORP.
