Rear Wheel Hub Assembly Removal and Installation (Rear Disc Brake Model): Removal

Hoist vehicle and remove rear wheel.
Pull up parking brake lever.
Uncaulk rear drive shaft nut (1) and then remove rear drive shaft nut (1) (4WD model).

Fig 1: Identifying Rear Drive Shaft Nut
Courtesy of SUZUKI OF AMERICA CORP.
Remove rear brake caliper assembly and rear brake disc referring to REAR BRAKE DRUM REMOVAL AND INSTALLATION .
Disconnect wheel speed sensor (1).
Remove brake dust cover (2) and rear wheel hub assembly (3) from rear axle.

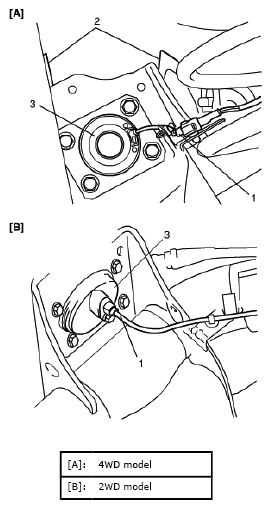

Fig 2: Identifying Wheel Speed Sensor, Brake Dust Cover And Rear Wheel Hub Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Remove stud bolts from rear wheel hub assembly referring to Step 7) under "Removal" of REAR WHEEL HUB ASSEMBLY REMOVAL AND INSTALLATION (REAR DRUM BRAKE MODEL) , if necessary.
